A/C Condenser Fan (1989-91)
NOTE:
Use continuity test guide for symbol reference. See Figure
or Figure
.

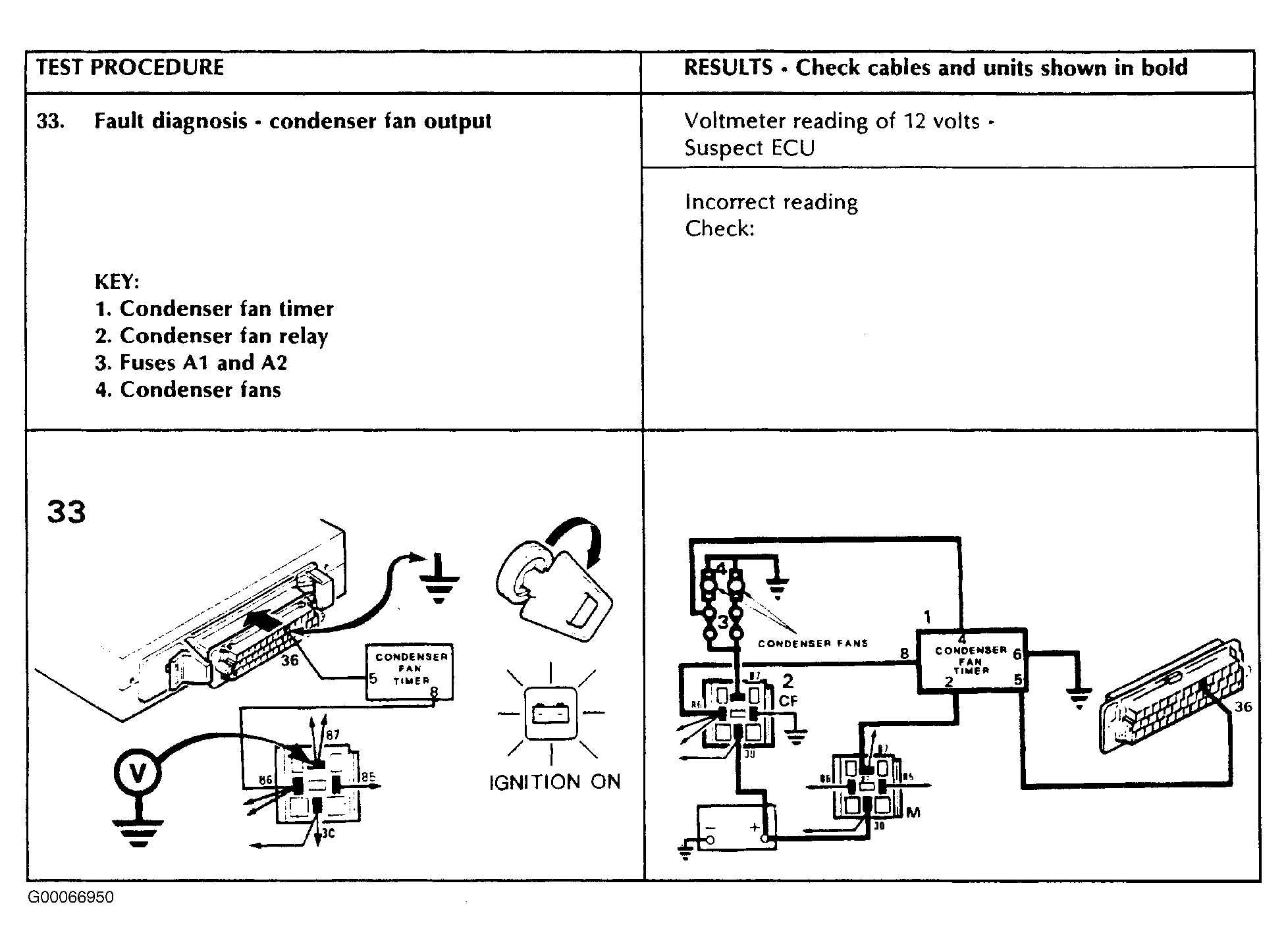

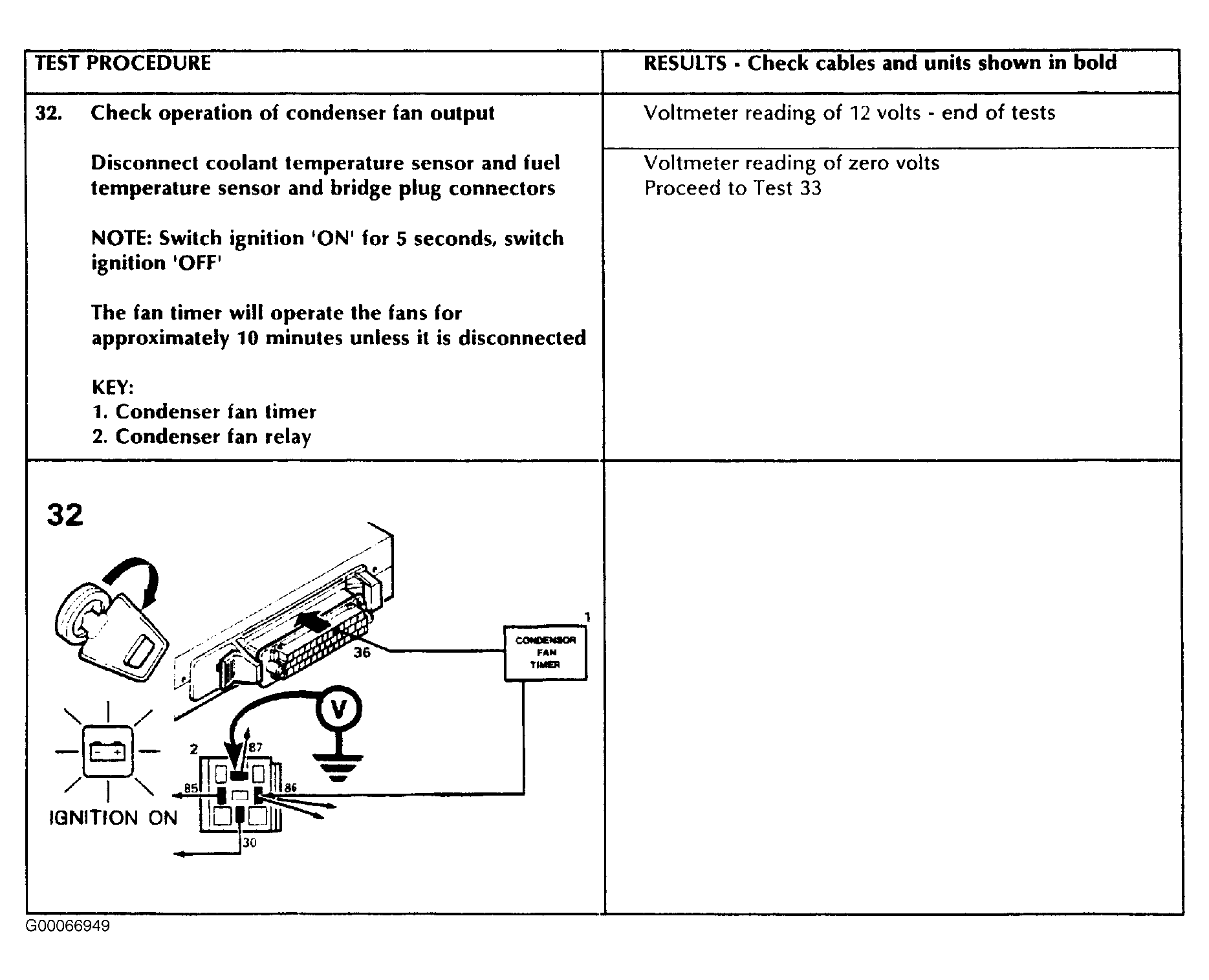

To test A/C condenser fan, see Fig 1
and Fig 2
. After completing the tests, retest the vehicle to ensure the faults have been rectified. If faults still persist, recheck using Lucas diagnostic equipment.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
