Steering Column Lock Assembly: Installation
- Position the steering lock upper cap on the outer column, placing the spigot in the hole provided.
- Place the lower lock assembly into the column.

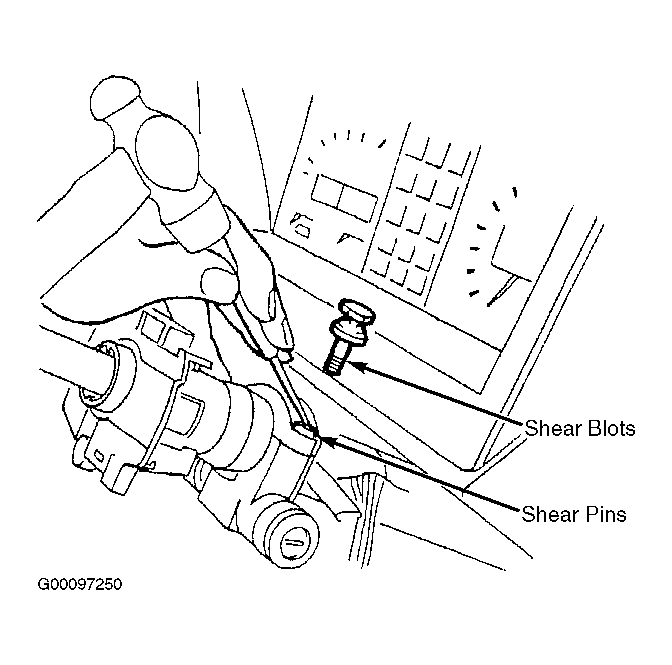

- Install the shear bolts to retain the cap and lock.
- Tighten the bolts sufficient enough to shear of the heads. See Figure
.
- To complete installation, reverse removal procedure Steps 1)
-4)
.
