Engine Controls - Service & Adjustment Specifications - 3.9L & 4.2L
>>
Specifications
>>
Fuel System Specifications
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Fuel System Specifications

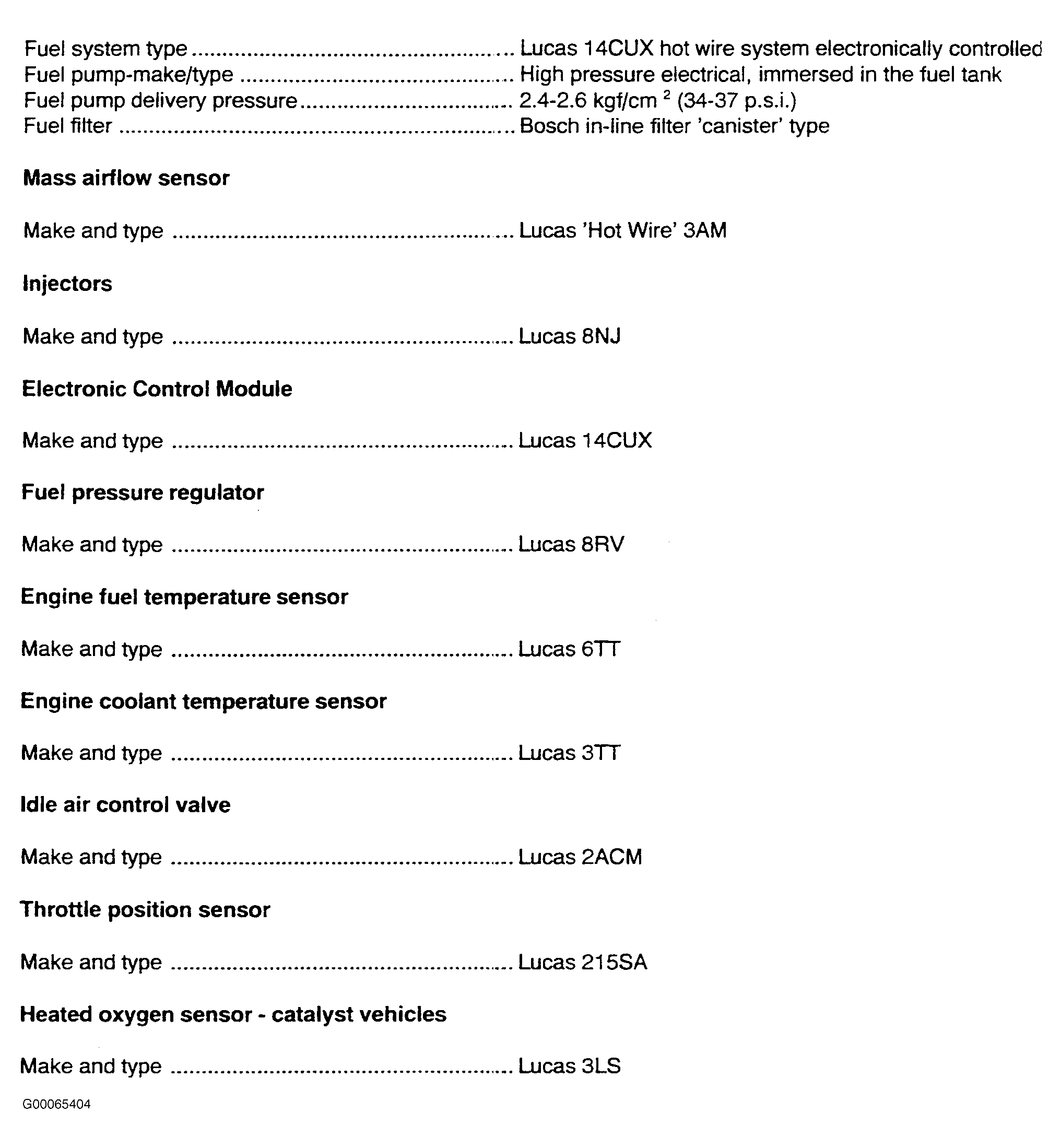

Fig 1: Fuel System Specifications
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
