A/C Condenser Fan Control Module

Condenser fan control module is located behind passenger seat. See Figure .

NOTE: Condenser fan control module is also known as a timer unit.

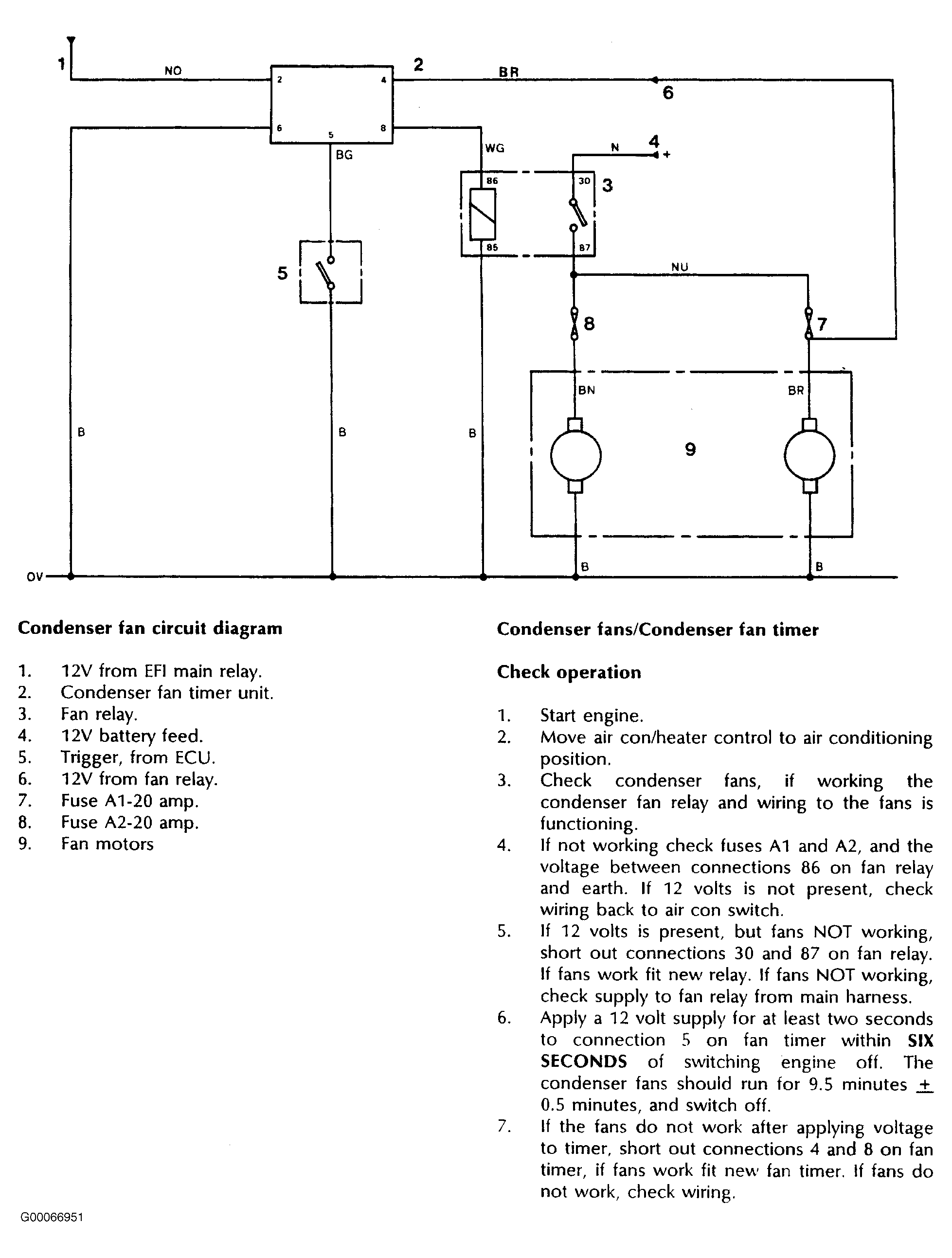

Fig 1: Condenser Fan Control Module Circuit Diagram
G00066951Courtesy of LAND ROVER NORTH AMERICA, INC.
