Diagnostic Procedure

Test mass airflow sensor. Perform Test "D". See Fig 1 -Fig 3 . After completing the tests, retest the vehicle to ensure the faults have been rectified. If faults still persist, recheck using Lucas Diagnostic Equipment (Test Book).

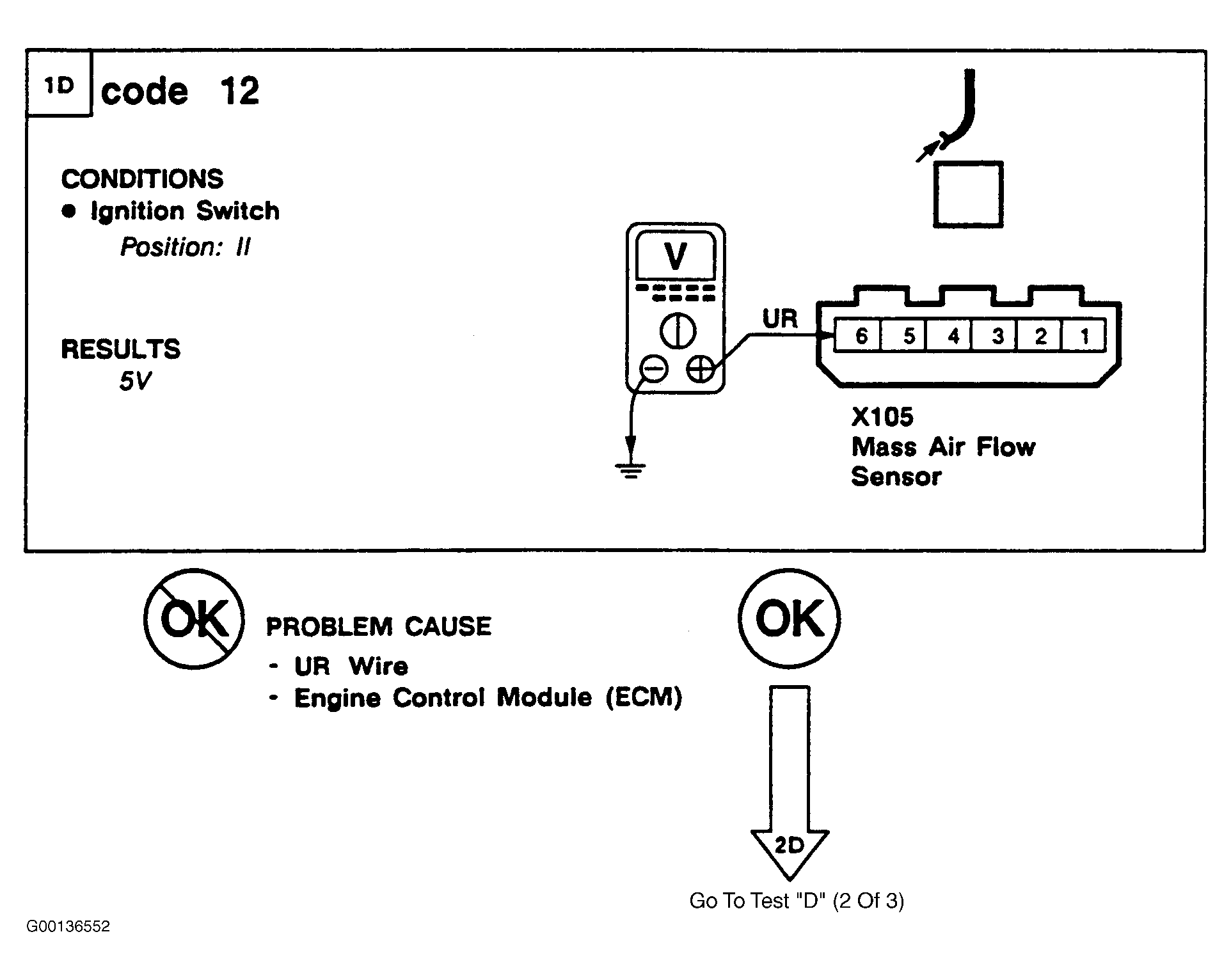

Fig 1: Mass Airflow Sensor Fault Test "D" (1 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

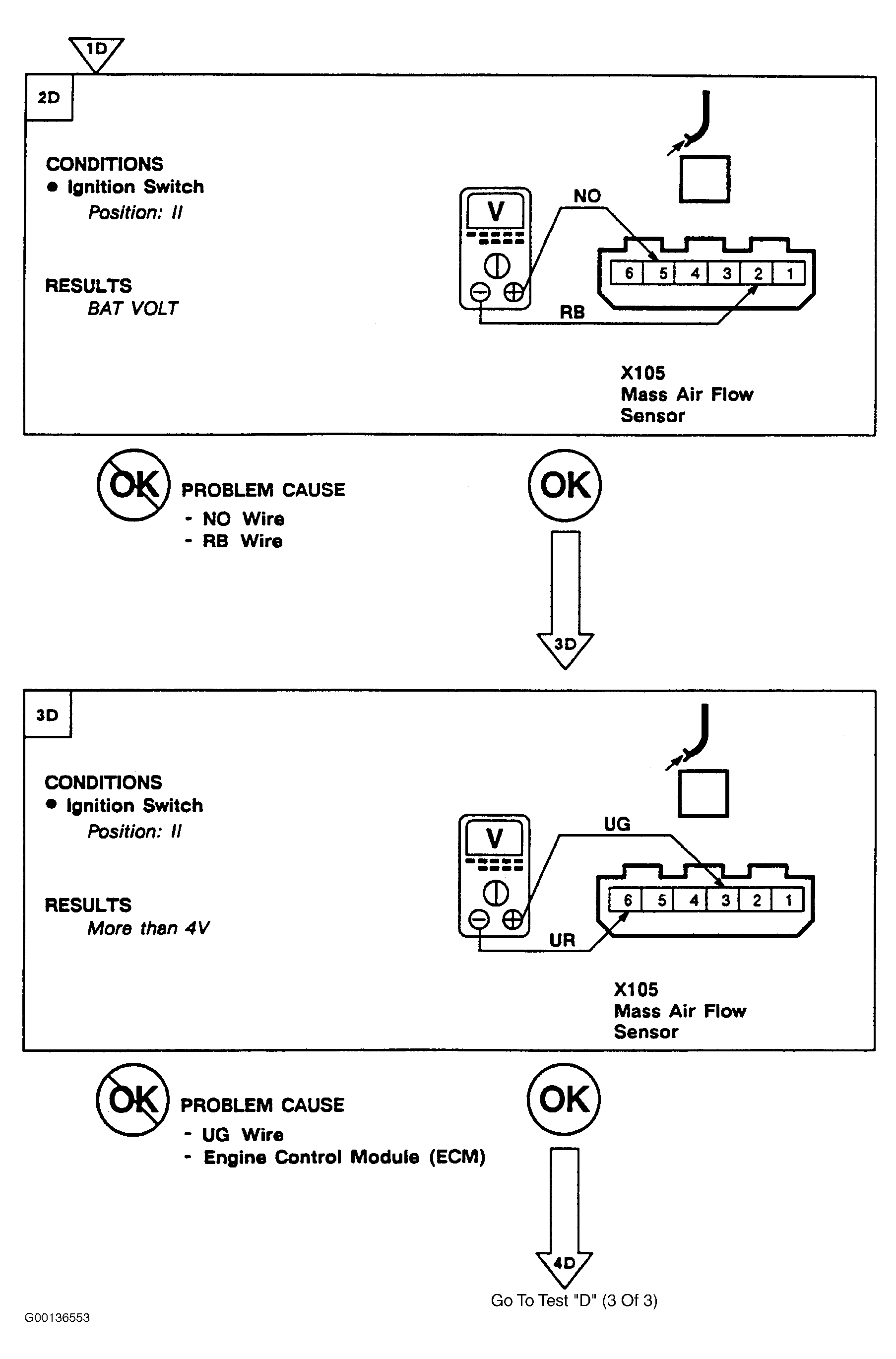

Fig 2: Mass Airflow Sensor Fault Test "D" (2 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

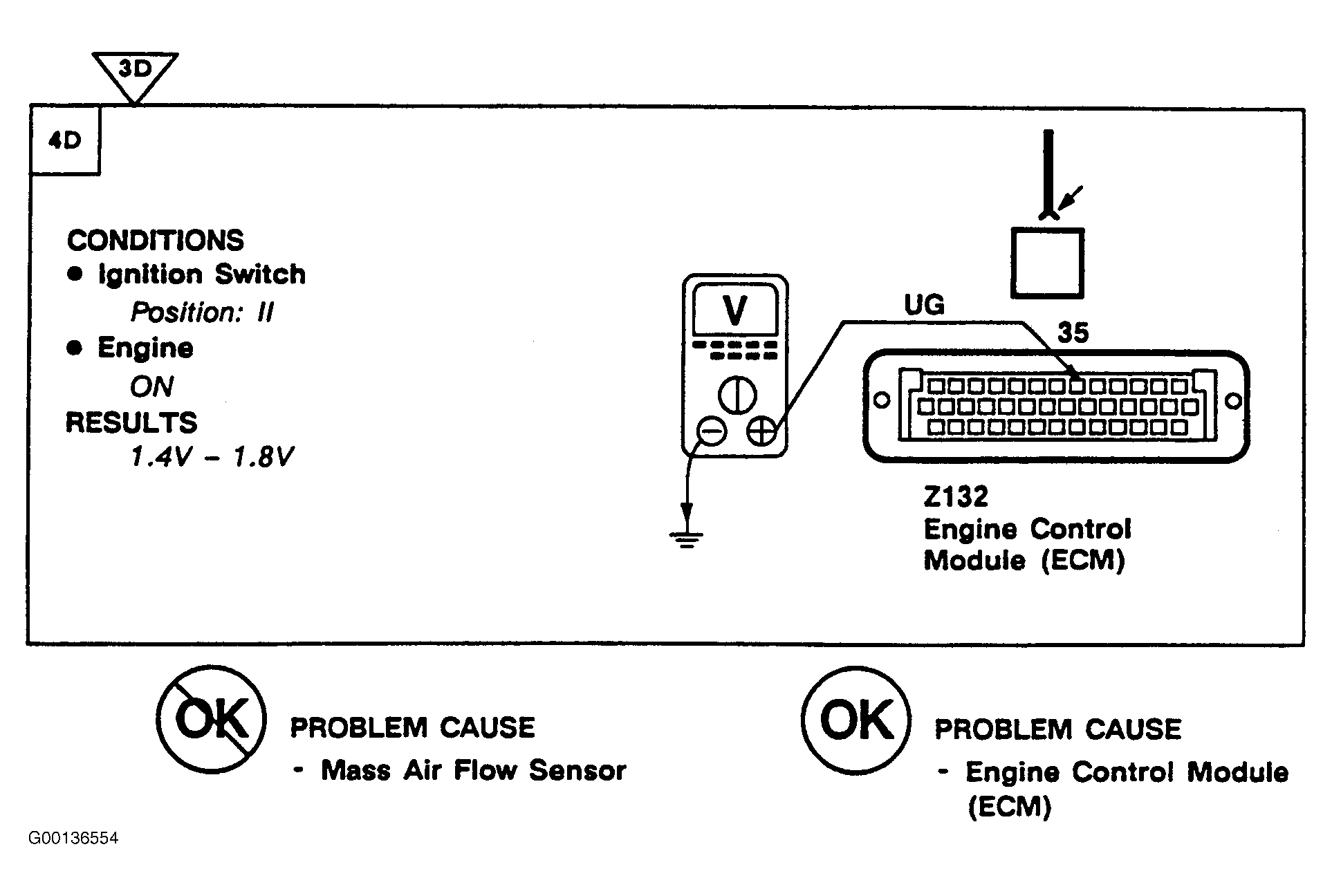

Fig 3: Mass Airflow Sensor Fault Test "D" (3 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.
