Remove & Installation (3.9L V8 - 1993-Early 1995)

1. Remove the fascia right-hand closing panel.
2. Remove the right-hand footwell side panel trim.
3. Disconnect the battery negative lead.
4. Release ECM connector retaining clip. See Fig 1.
5. Maneuver the front of the connector (in the direction of the bold arrow shown in illustration) and detach the other end of the connector from the retaining peg.
6. Release the two screws securing the ECM to the right-hand footwell side panel.
7. Withdraw the ECM from the clip.
8. Refit the ECM securely in the clip and fit the two screws.
9. Reconnect the ECM harness connector. Ensure connector is pushed firmly into its location and that the retaining clip secures the connector in position.
10. To install, reverse removal procedure.

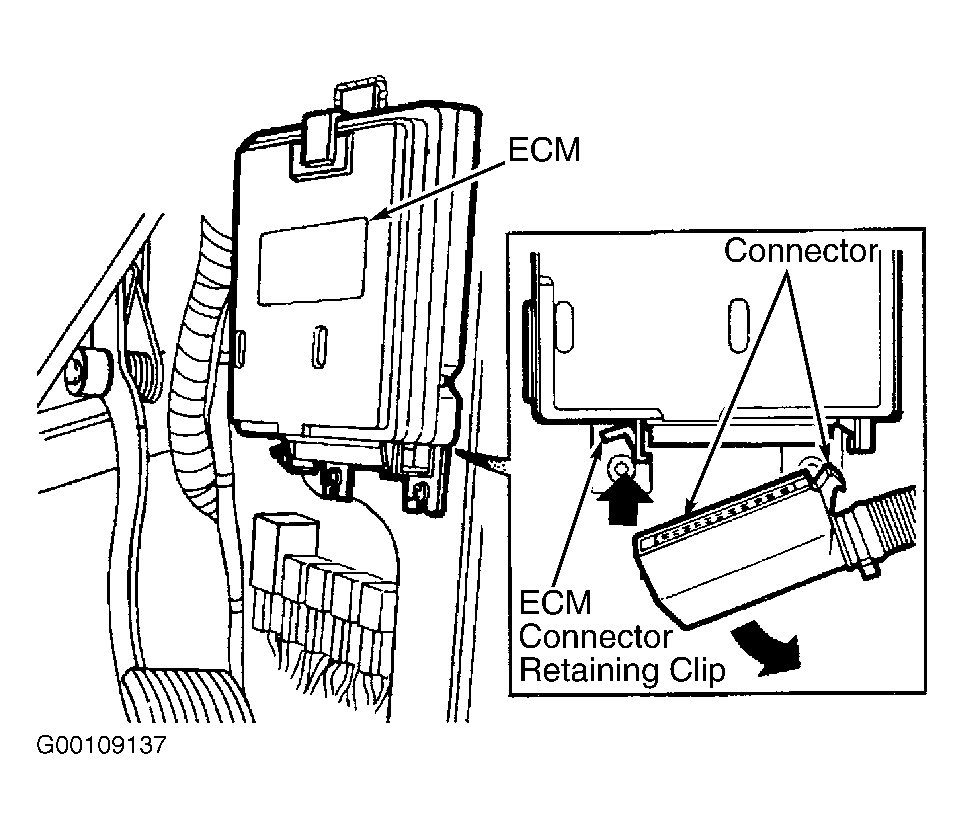

Fig 1: Removing Engine Control Module (3.9L V8 - 1993-Early 1995)

Courtesy of LAND ROVER NORTH AMERICA, INC.
