Diagnostic Procedure

Test Throttle Position (TP) sensor. Perform Test "G". See Fig 1 and Fig 2 . After completing the tests, retest the vehicle to ensure the faults have been rectified. If faults still persist, recheck using Lucas Diagnostic Equipment or Test Book.

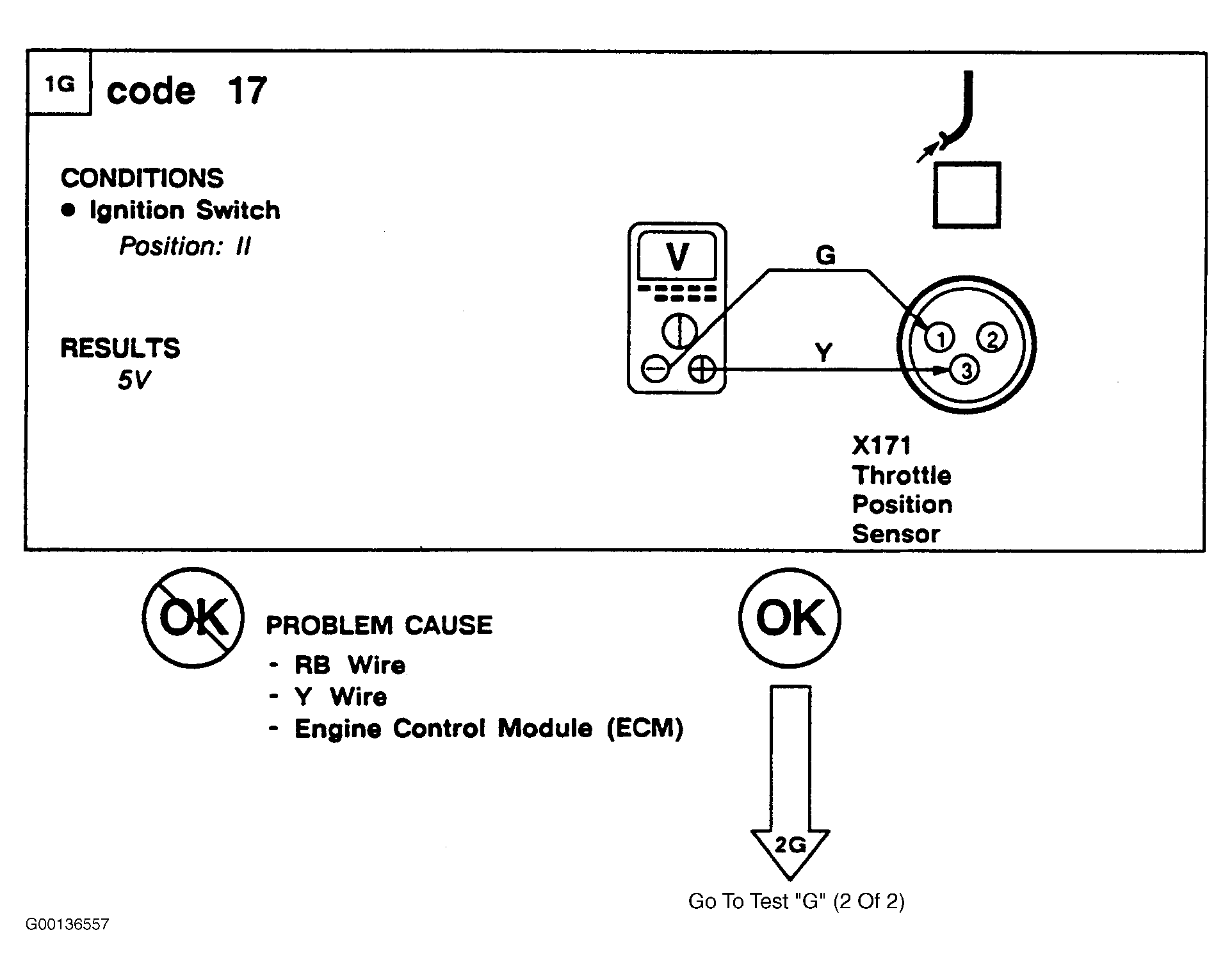

Fig 1: Throttle Position Sensor Fault Test "G" (1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 2: Throttle Position Sensor Fault Test "G" (2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.
