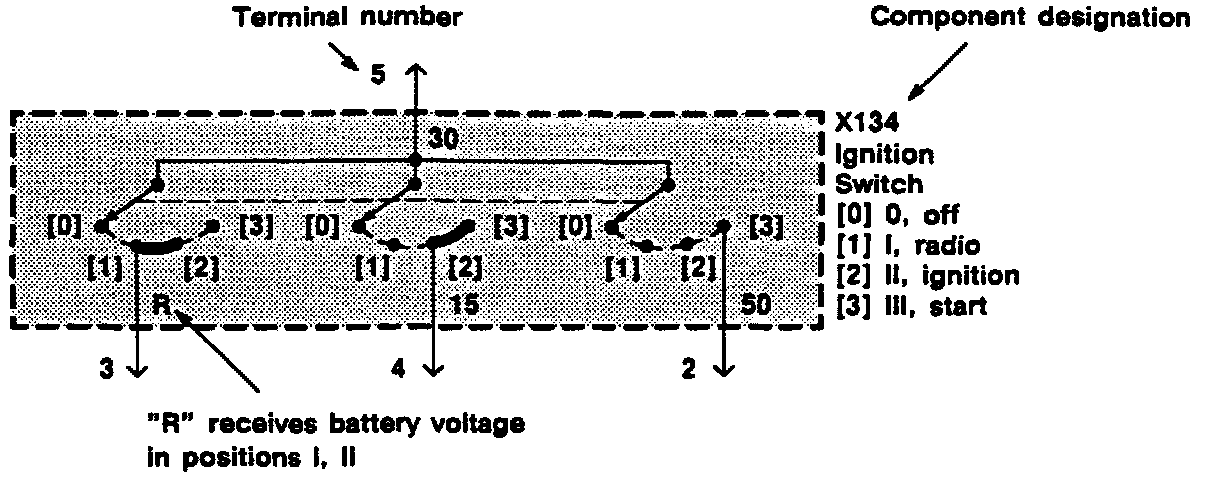

Terminal Number and Designation

Terminal Number and Designation:

Terminal Number Designation
50 Battery voltage: Ignition Switch in position III
30 Battery voltage: supplied constantly
15 Battery voltage: Ignition Switch in position II or III
R Battery voltage: Ignition Switch in positions I, II
31 Ground
X Switched battery voltage through the ignition load relay; ignition switch is in position II or III
49 Flasher unit input
49a Flasher unit output
56a High beam
56b Low beam
85 End of relay coil
86 Start of relay coil
87 Relay contact
87a Relay contact
