Component Locations

NOTE: For component locations not listed in this article, see appropriate ELECTRICAL COMPONENT LOCATOR article.

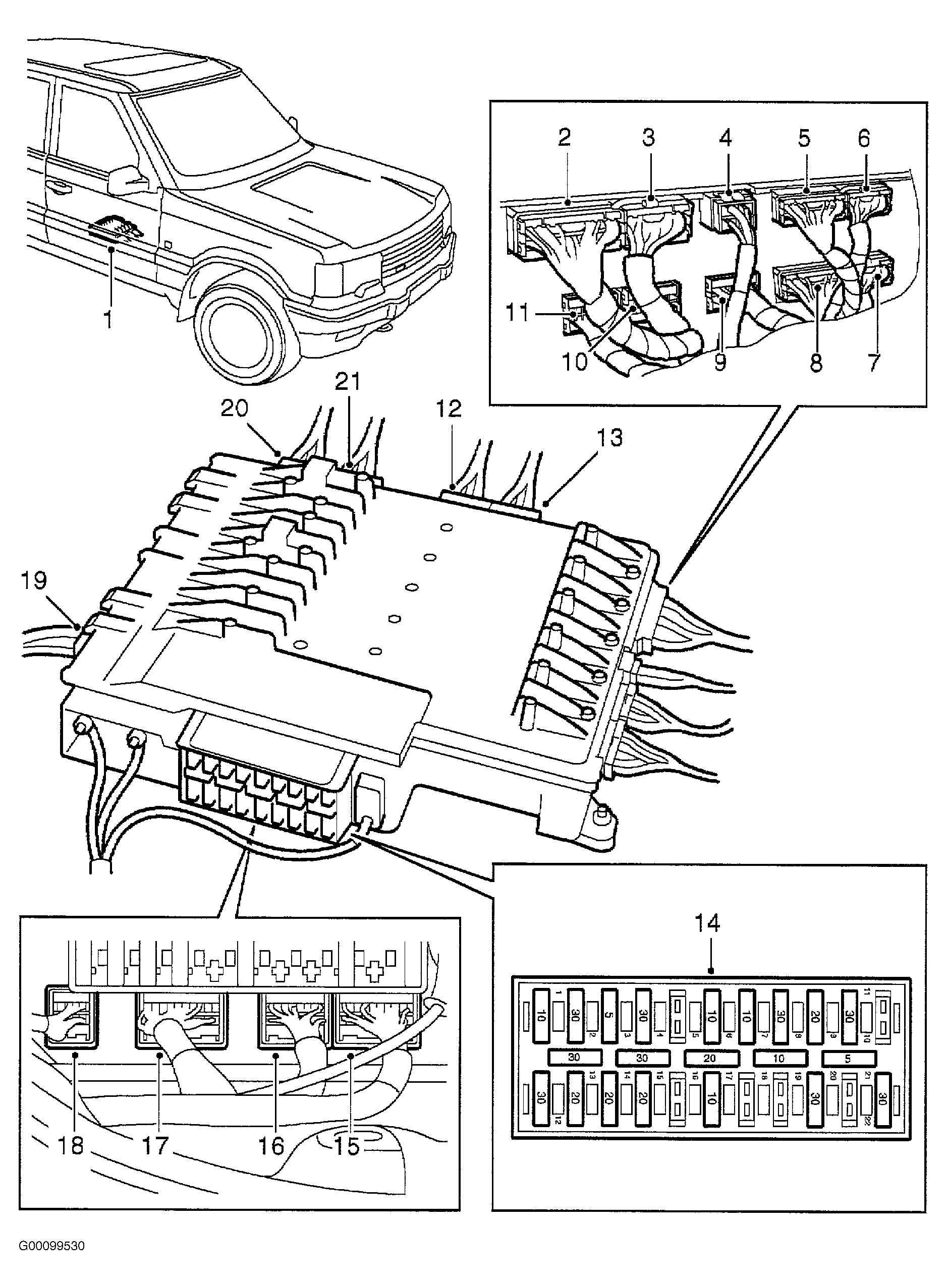

Fig 1: Identifying Body Electrical Control Module Component Locations (1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

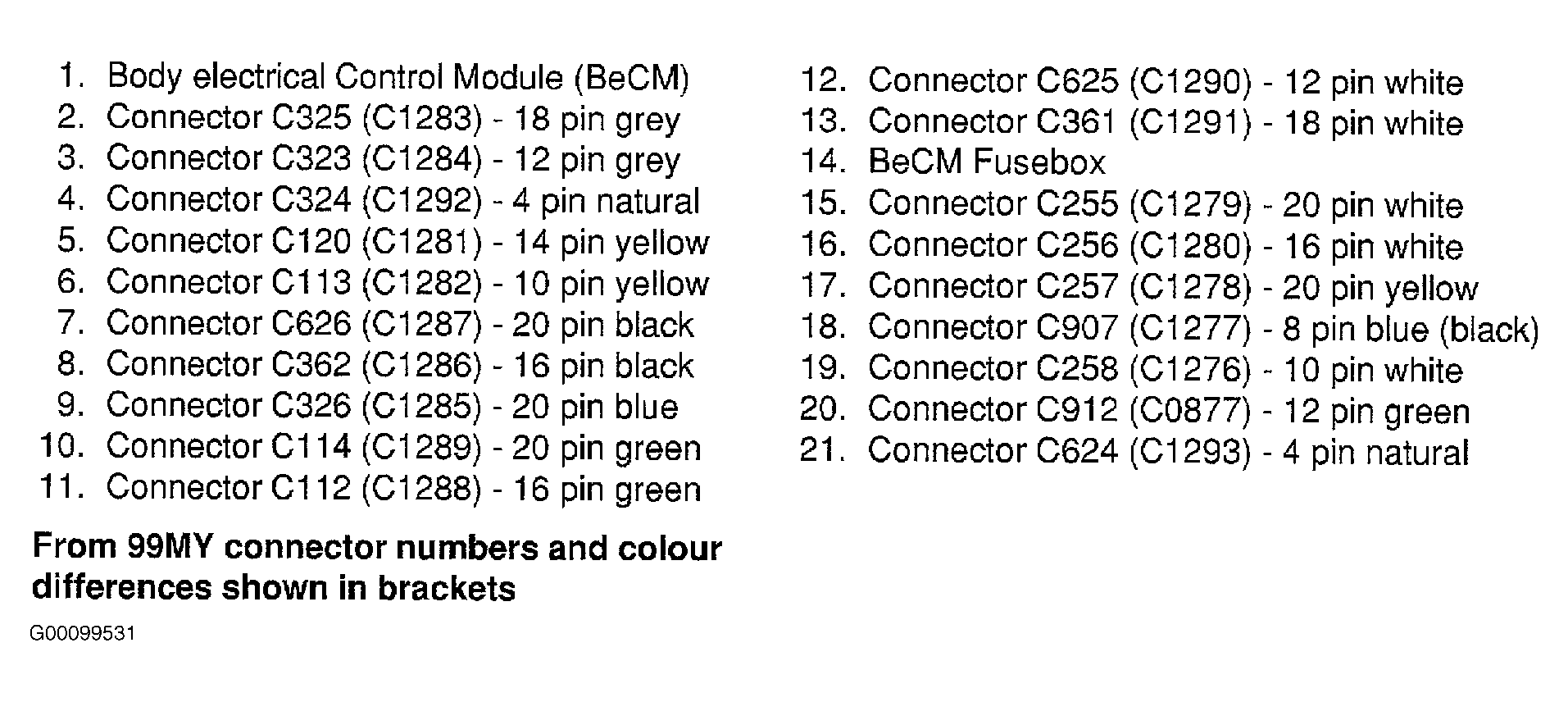

Fig 2: Identifying Body Electrical Control Module Component Locations (2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.
