Control Assembly: Service and Repair

Heater Control and Fan Switch

Service Repair No - 80.10.02

Remove

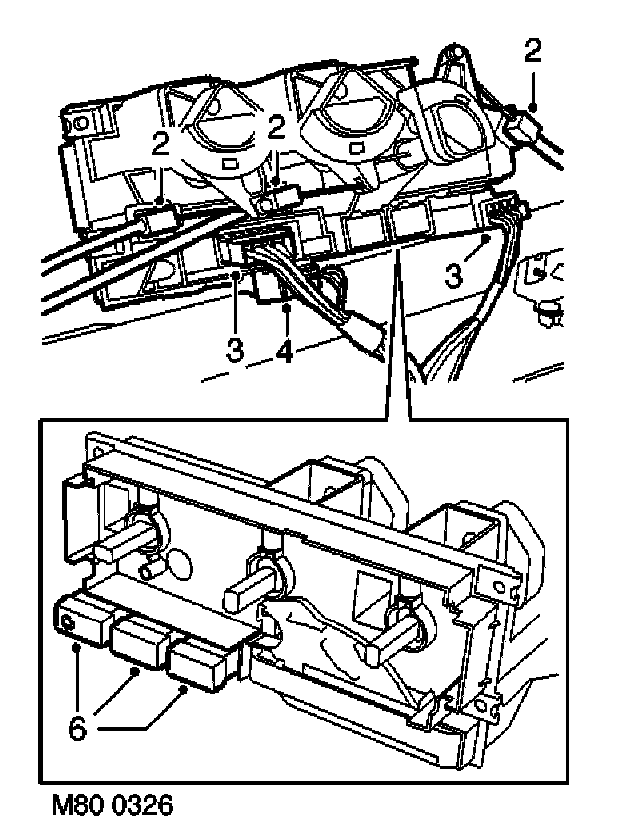

1. Remove louvre panel assembly.







2. Release temperature and air distribution cable abutments from heater control housing and disconnect inner cables from controls.
3. Disconnect multiplugs from switches.
4. Disconnect multiplug from control illumination.
5. Remove heater control.
6. Remove 3 switches from heater control.

Refit

1. Fit switches to heater control housing.
2. Position heater control assembly and connect multiplugs to switches and illumination.
3. Connect heater control cables and secure outer cable abutments to casing.
4. Fit louvre panel assembly.
