Electronic Brake Control Module: Service and Repair

ECU - Self Levelling and Anti Lock Brakes (SLABS)

Service Repair No - 70.65.08

Remove

1.Remove (BCU) Body Control Unit.

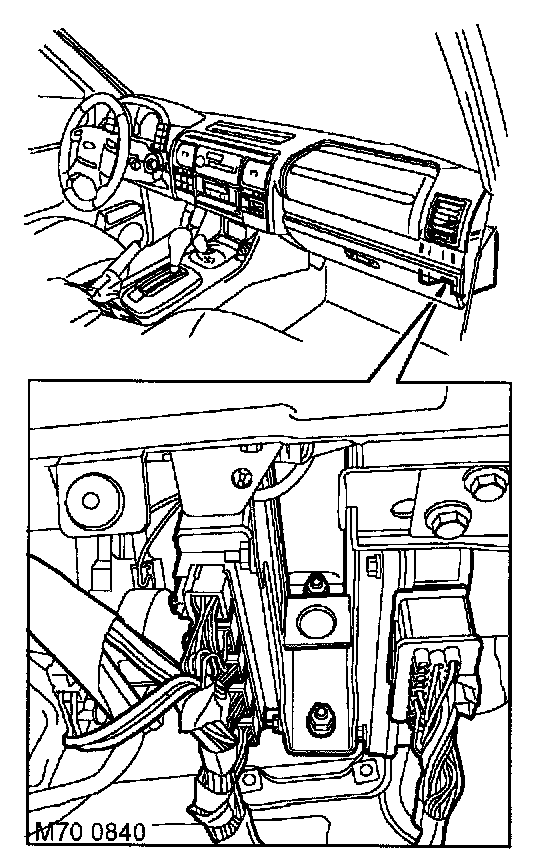

2. Remove 5 multiplugs from SLABS ECU.
3. Remove multiplug from ACE ECU.
4. Remove lower nut and loosen upper nut securing SLABS and ACE ECU bracket to body.
5. Remove ECU's and bracket assembly.





6. Remove 4 nuts securing SLABS ECU and remove ECU.

Refit

1. Fit new SLABS ECU to bracket and secure with nuts.
2. Fit ECU's and bracket assembly to body and secure with nuts.
3. Connect multiplugs to ACE ECU and SLABS ECU.
4. Fit BCU.
5. Programme the new SLABS ECU.
