Cruise Control Cable

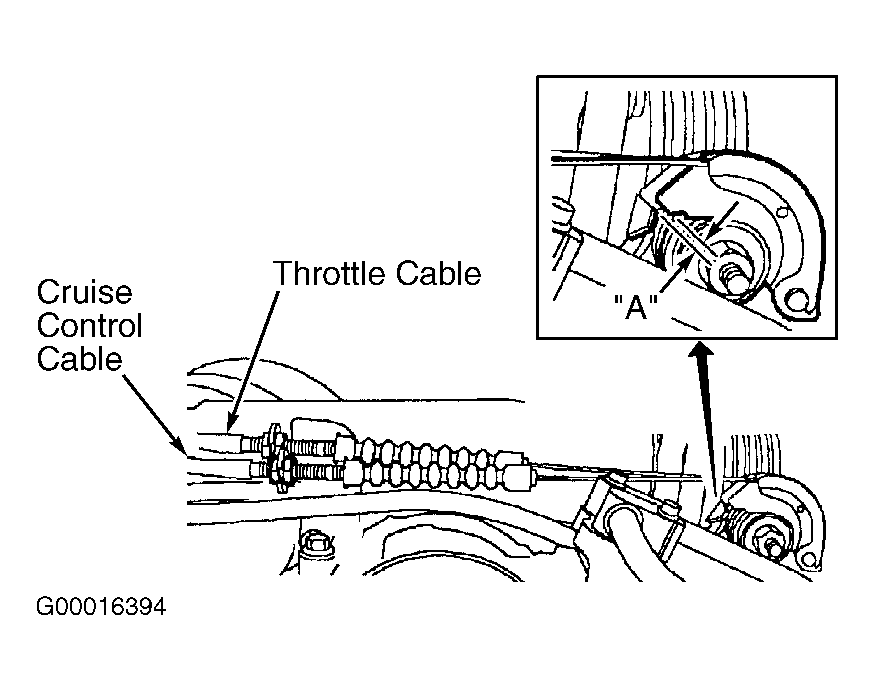

Ensure throttle cable is correctly adjusted. See THROTTLE CABLE . Loosen outer cable lock nuts. See Figure . Adjust rear lock nut so that dimension "A" is .019-.060" (.5-1.5 mm). Tighten cable front lock nut.
