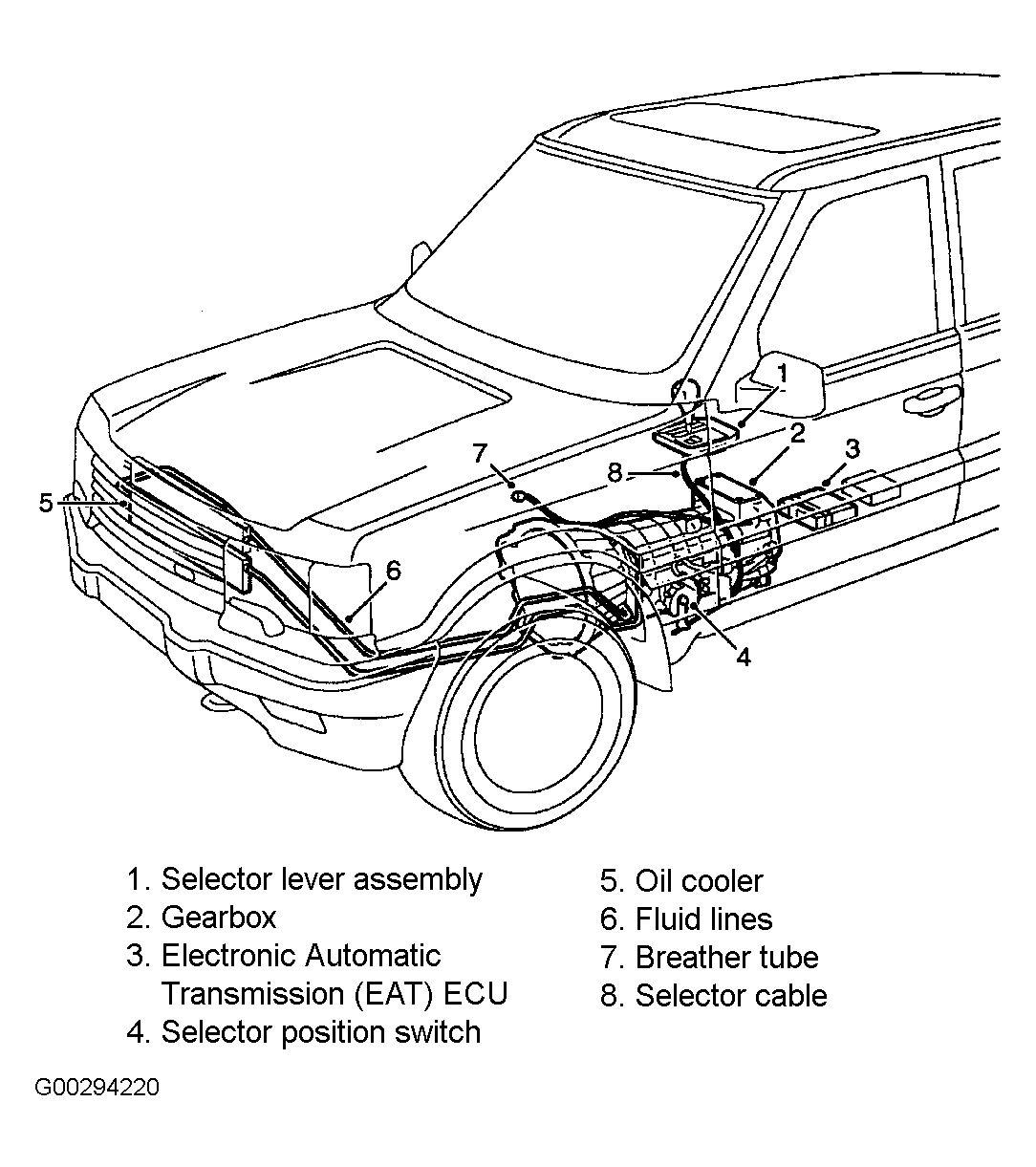

Component Locations
COMPONENT LOCATIONS
| Component | (1) Location | ||
|---|---|---|---|
| Auto Gear Box Control Unit | Under Left Front Seat | ||
| Body Electrical Control Module & Fuse Box | Under Right Front Seat | ||
| Engine Coolant Temperature Sensor | Left Side Of Engine | ||
| Engine Control Module (ECM) | At Left Rear Corner Of Engine Compartment | ||
| Gear Box Position Switch | Left Side Of Transmission | ||
| "H" Gate Sensor Module | In Center Console | ||
| Throttle Position Sensor | On Throttle Body | ||
| Transfer Gear Box ECU | In Center Console | ||
|
|||
