Body Electrical Control Module Fuse Box

The BECM has its own integral fusebox containing 22 fuses. The fuses are accessible via an access panel located on the side of the front RH seat trim panel. Each fuse protects one or more electrical functions controlled by the BECM.

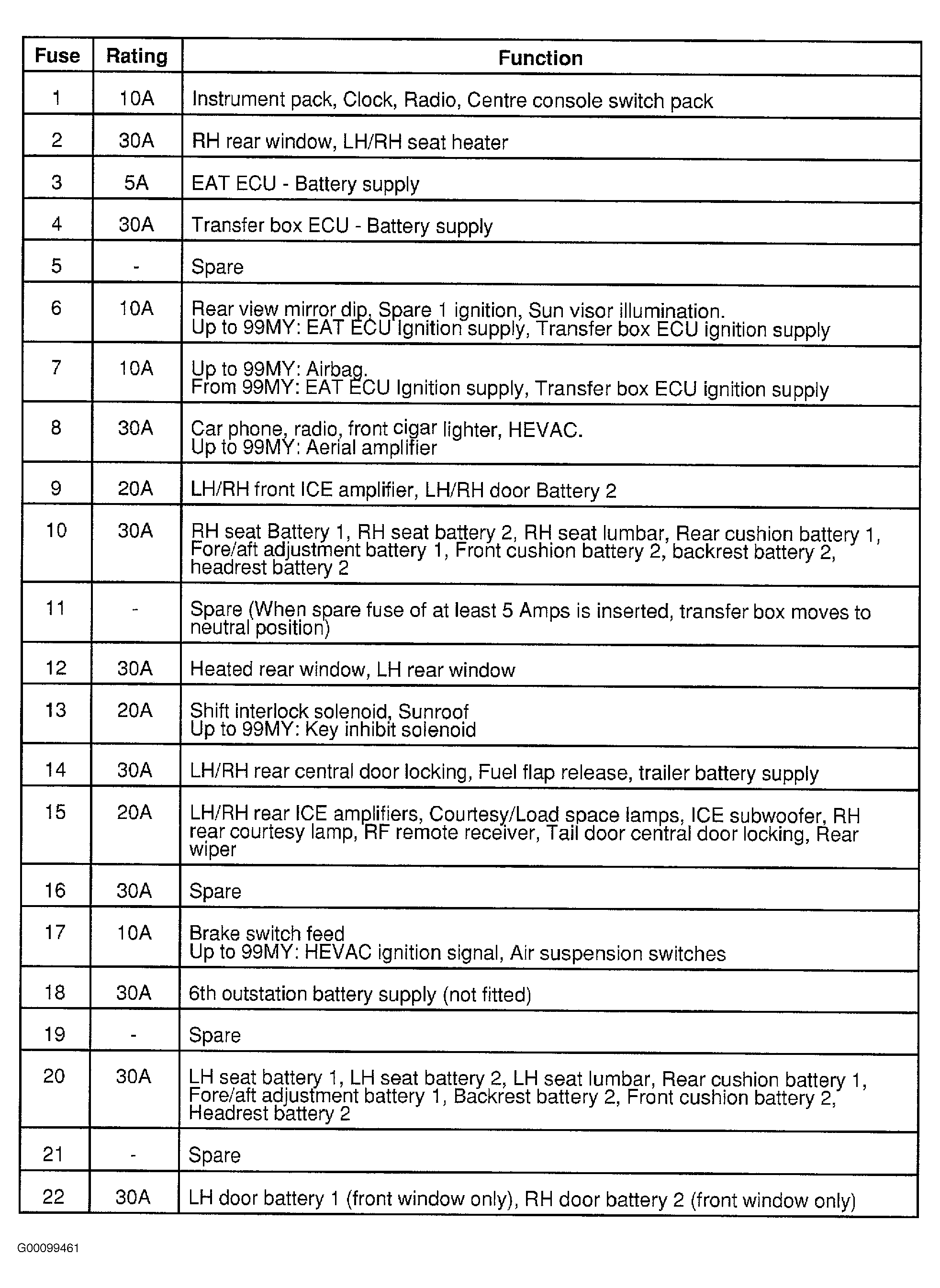

The function and rating of each fuse is shown in the following table. See Fig 1 . The outstations each receive two feeds from the battery to supply feeds for window and locking operations and seat functions from different fuses.

Fig 1: Identifying Body Electrical Control Module Fuse Box
