Connector 2 - C0635

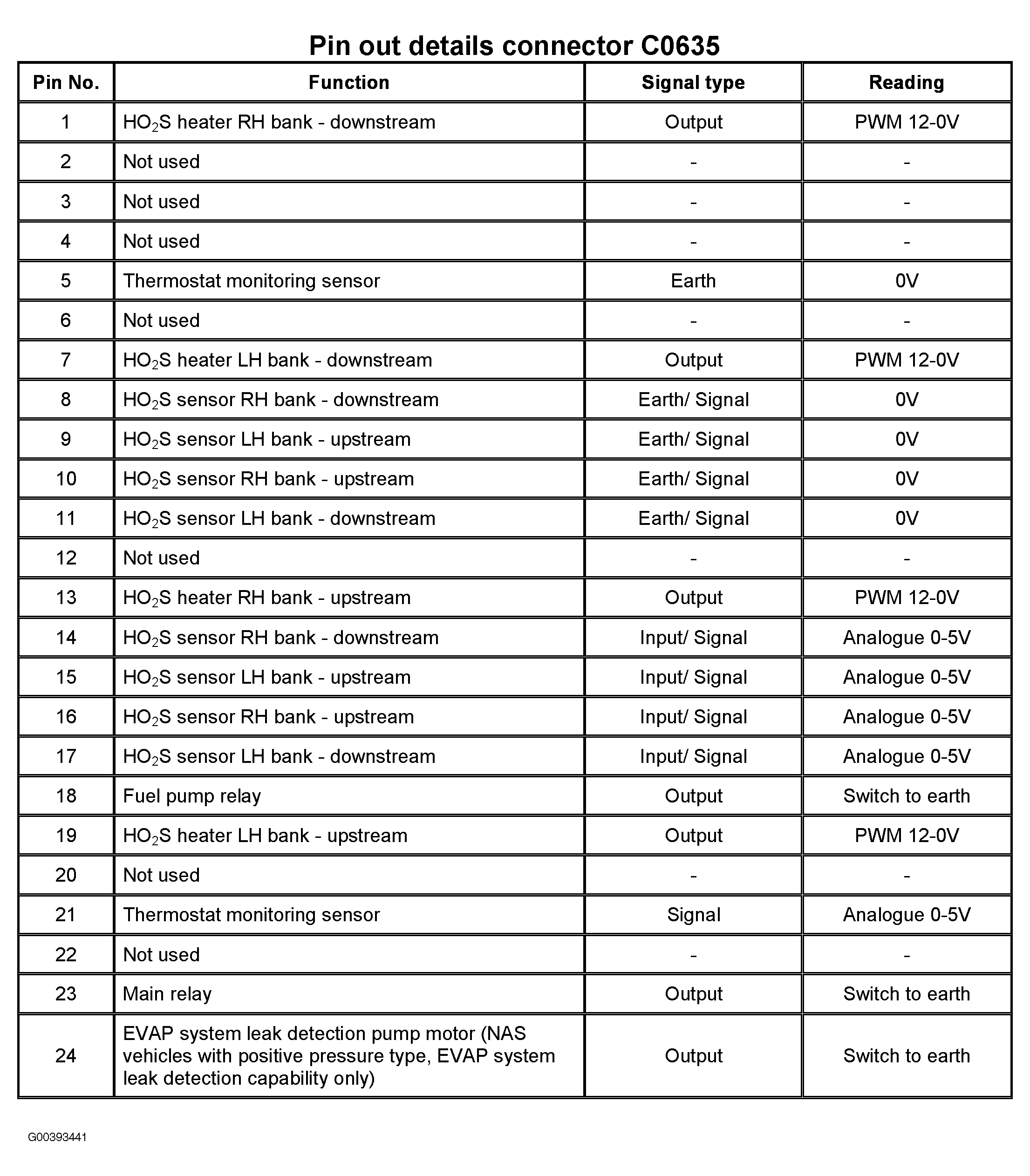

This connector contains 24 pins and is primarily used for Heated Oxygen Sensors (HO2S) control and earth. See Fig 1. The HO2S sensors require a heater circuit to assist in heating the tip of the sensors to enable closed loop fuelling to be implemented quickly after cold starting.
