Connector 3 - C0636

This connector contains 52 pins and is used for most sensor and actuator inputs and outputs. See Fig 1 and Fig 2 . Sensor and actuator control is vital to ensure that the ECM maintains adaptive strategy

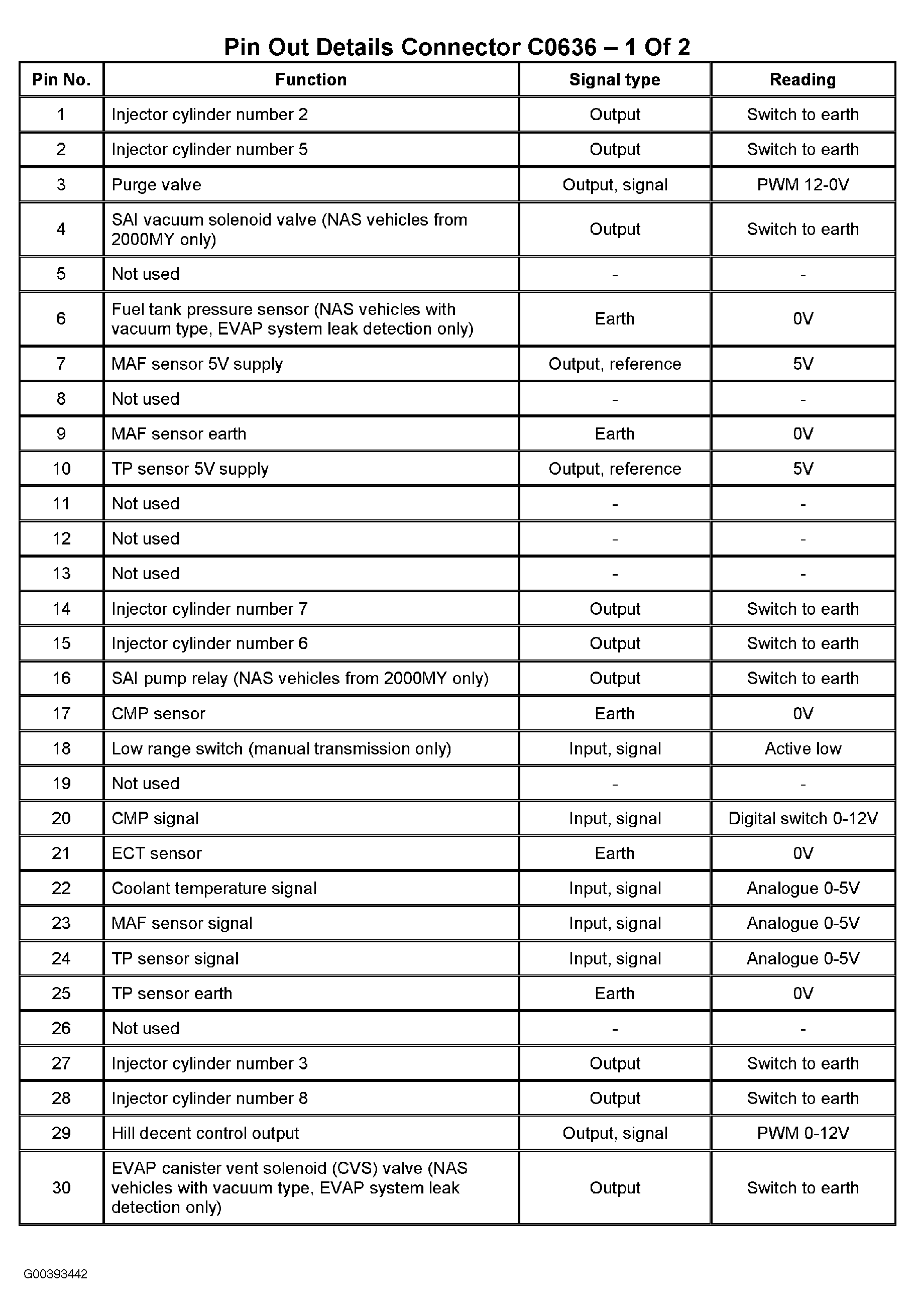

Fig 1: Pin Out Details Connector C0636 - 1 Of 2

Courtesy of LAND ROVER NORTH AMERICA, INC.

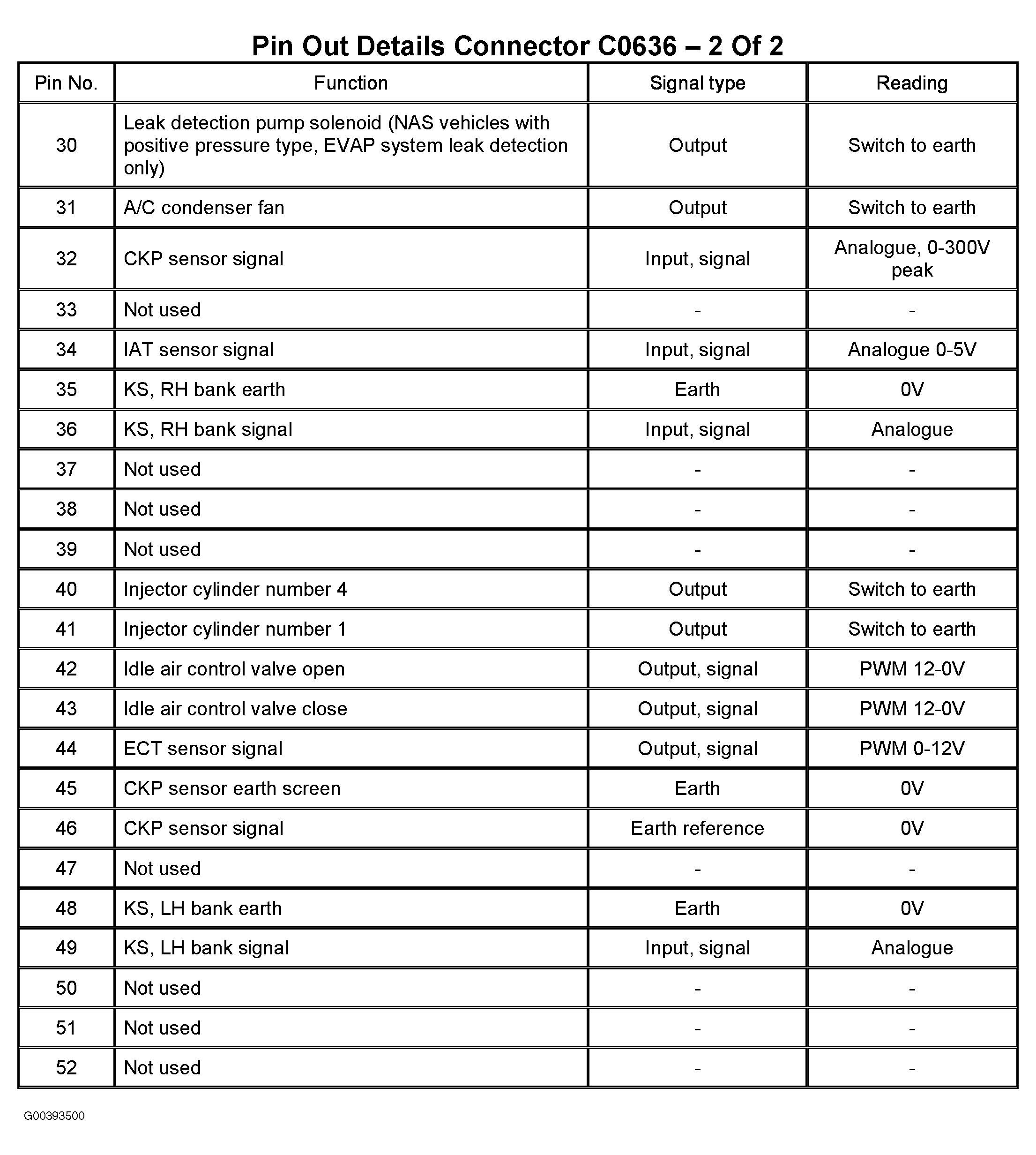

Fig 2: Pin Out Details Connector C0636 - 2 Of 2

Courtesy of LAND ROVER NORTH AMERICA, INC.
