Navigation Computer Connector C0899 Pin Details

WARNING: This page is about a different car, the 2005 Land Rover Range Rover, 2004 Land Rover Range Rover, 2003 Land Rover Range Rover, and 2002 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

Pin No.	Description	InputOutput
1	Data signal	Output
2	Data signal	Input
3	Permanent battery power supply	Output
4	Ground for antenna	-
5	Red video signal	Output
6	Green video signal	Output
7	Blue video signal	Output
8	I bus	Input/Output
9	Auxiliary power supply	Input
10	Permanent battery power supply	Input
11	Data signal, inverted	Output
12	Data signal, inverted	Input
13	Auxiliary power supply	Output
14	Not used	-
15	Video signal ground	-
16	Synchronization signal	Output
17	Navigation audio positive	Output
18	Navigation audio negative	Output
19	Ground	-
20	Road speed	Input

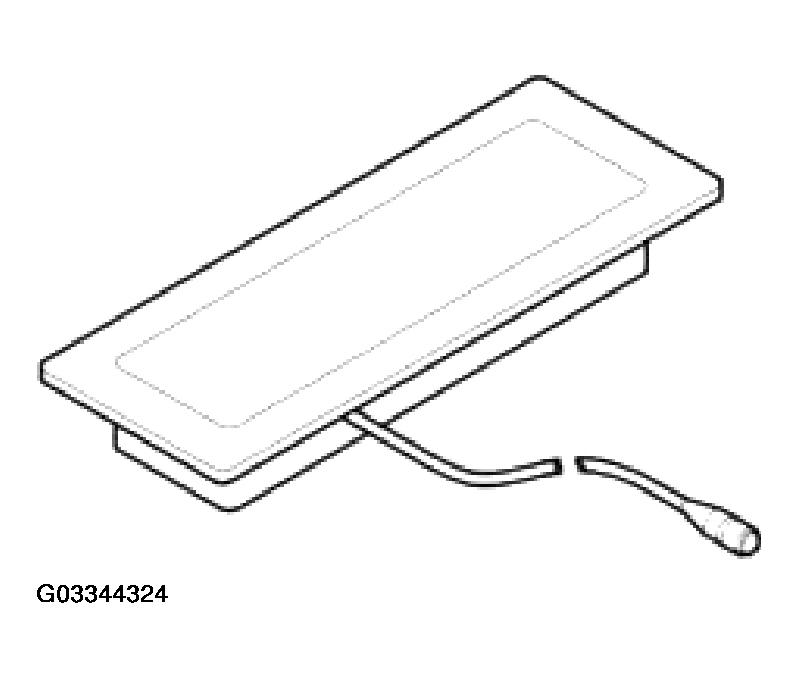

Fig 1: Identifying Navigation Computer (2 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

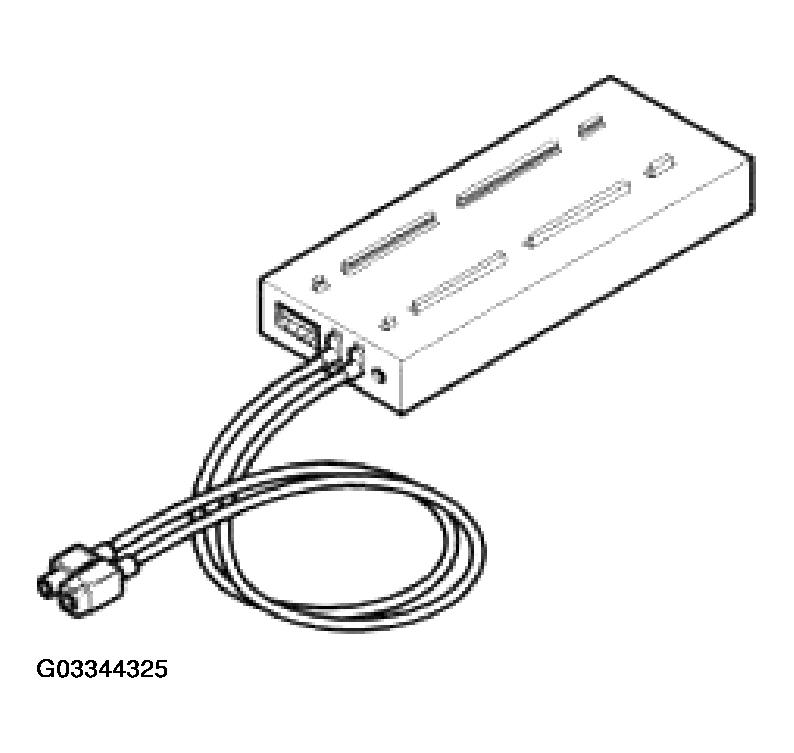

Fig 2: Identifying Navigation Computer (3 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.
