Instrument Pack Components - Exploded View

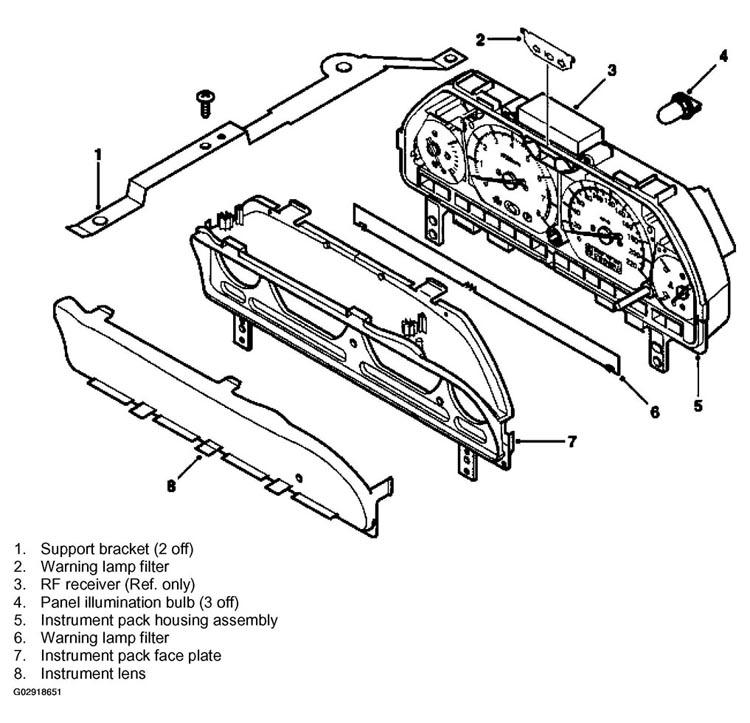

Fig 1: Exploded View Of Instrument Pack Components
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
