Window Regulators

Cable operated window regulators powered by an electric motor are installed in each of the doors.

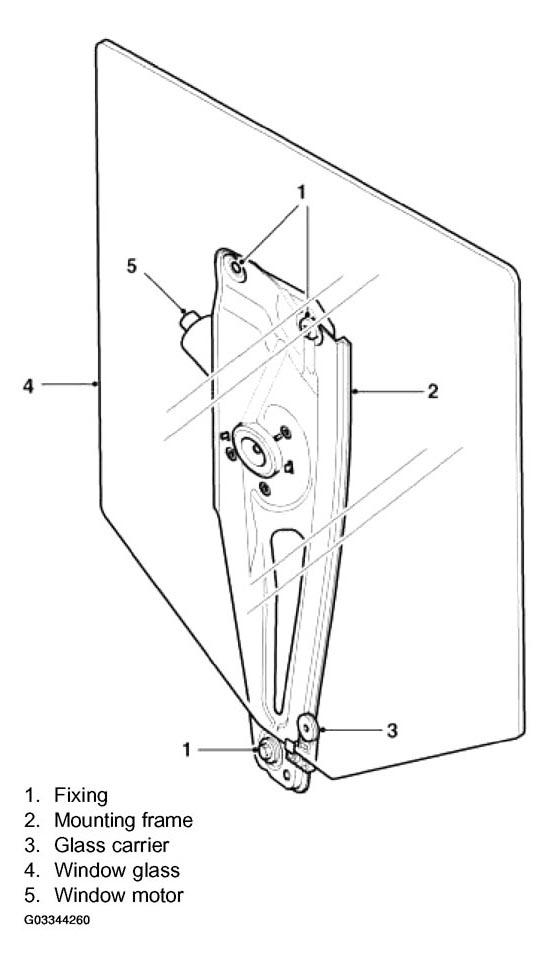

Fig 1: Identifying Window Regulators Replacement Components (1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

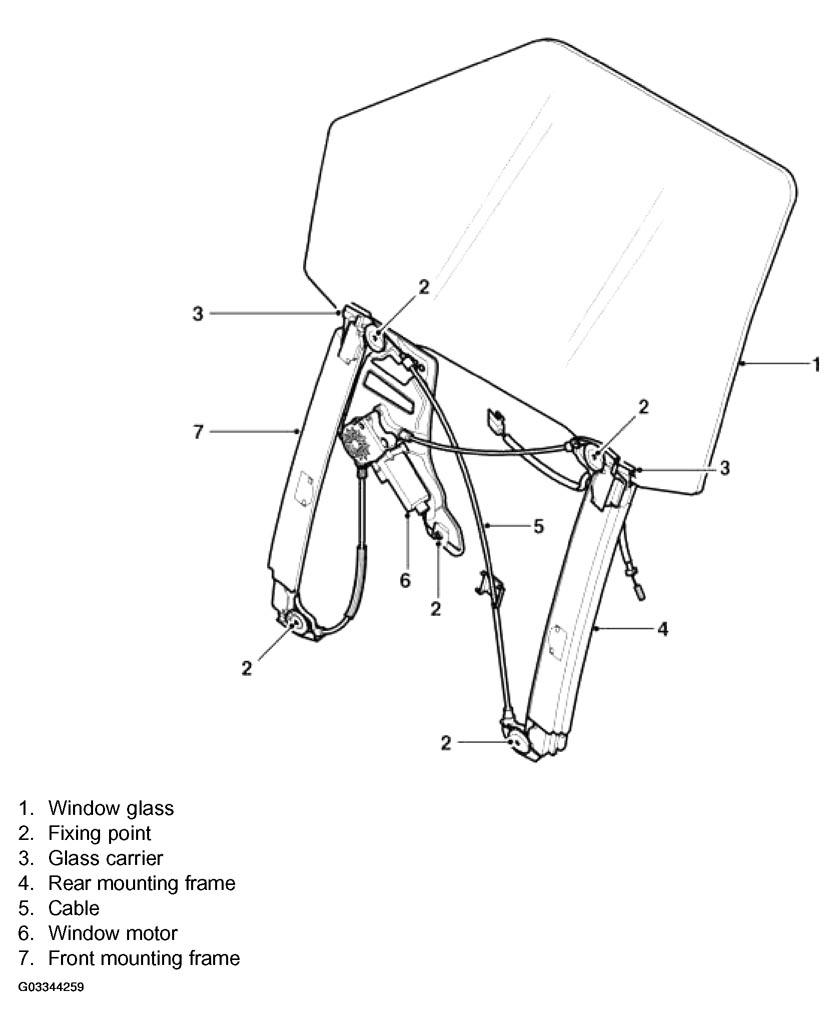

Fig 2: Identifying Window Regulators Replacement Components (2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.
