Lock Stop Adjust: Adjust
- Raise the vehicle. See JACKING & HOISTING .

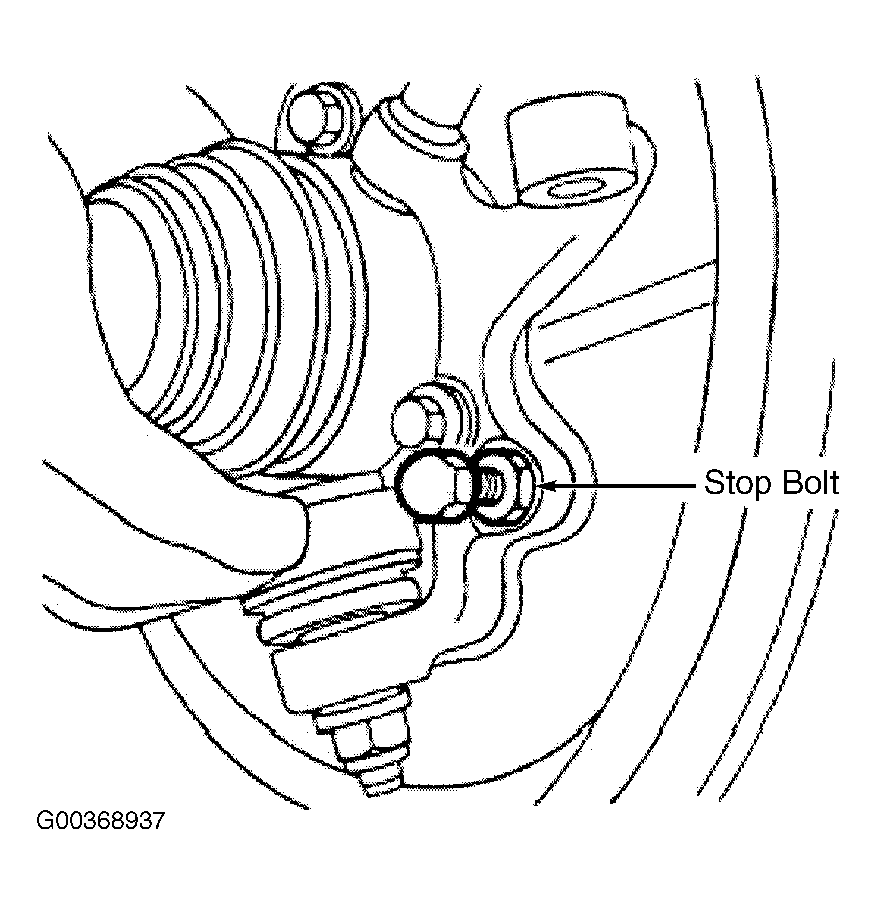

- Slacken LH lock stop locknut. Screw stop bolt clockwise, fully into hub. See Fig 1.
- With assistance, start the engine, turn steering onto right hand lock until resistance is felt.
- With the steering held, unscrew anti-clockwise, stop bolt until it contacts the axle. Screw bolt back in clockwise, by 3 flats.
- Tighten locknut.
- Return steering to center. Turn back to full right hand lock to check adjustment.
- Repeat for RH lock stop.
- Stop engine.
- Remove safety stands. Lower vehicle.
WARNING:
Support on safety stands.
NOTE:
Resistance is created by hydraulic limiter inside steering box.
NOTE:
Resistance should be felt prior to lock stop operation.
