Steering Box Centralization: Check

  1. Move backward then forward by at least 2 vehicle lengths to ensure that road wheels are pointing straight ahead.
  2. Check for correct alignment of steering box markings. See Fig 1.

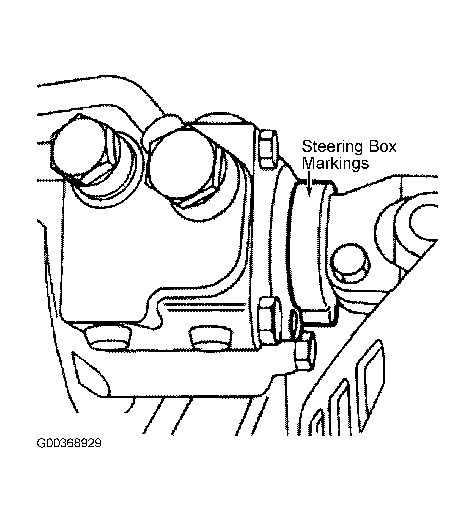

Fig 1: Checking Steering Box Markings
G00368929Courtesy of LAND ROVER NORTH AMERICA, INC.
