Vehicle Speed Interface Module: Service and Repair

Interface Unit - Remote Control

Remove
1. Remove front console.

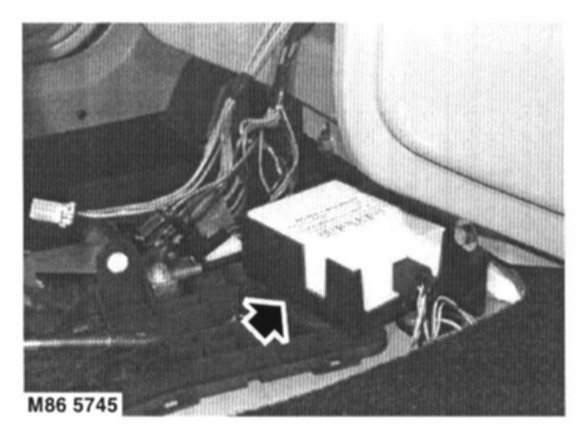

2. Release interface ECU from bracket, disconnect multiplug and remove ECU.

Refit
1. Secure interface ECU in bracket and connect multiplug.
2. Fit front console.
