Air Flow Meter/Sensor: Service and Repair

Sensor - Mass Air Flow (MAF) - NAS

Service repair no - 19.22.25

Remove
1. Disconnect battery earth lead.
2. Remove engine acoustic cover.

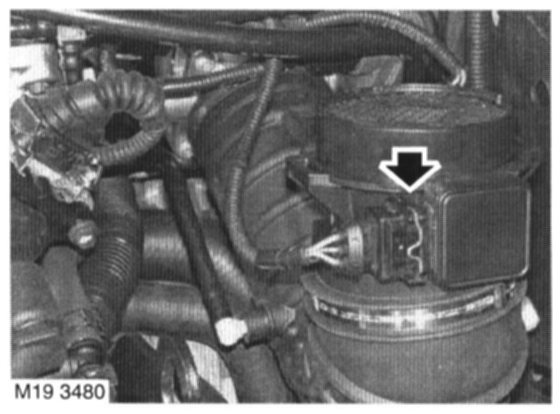

3. Disconnect multiplug from MAF sensor.
4. Release clip and remove MAF sensor.


Refit
1. Fit MAF sensor and secure with clip.
2. Connect multiplug to MAF sensor.
3. Fit engine acoustic cover.
4. Connect battery earth lead.
