Main Relay (Computer/Fuel System): Locations




Engine Compartment Fuse Box - LH rear side of the engine compartment

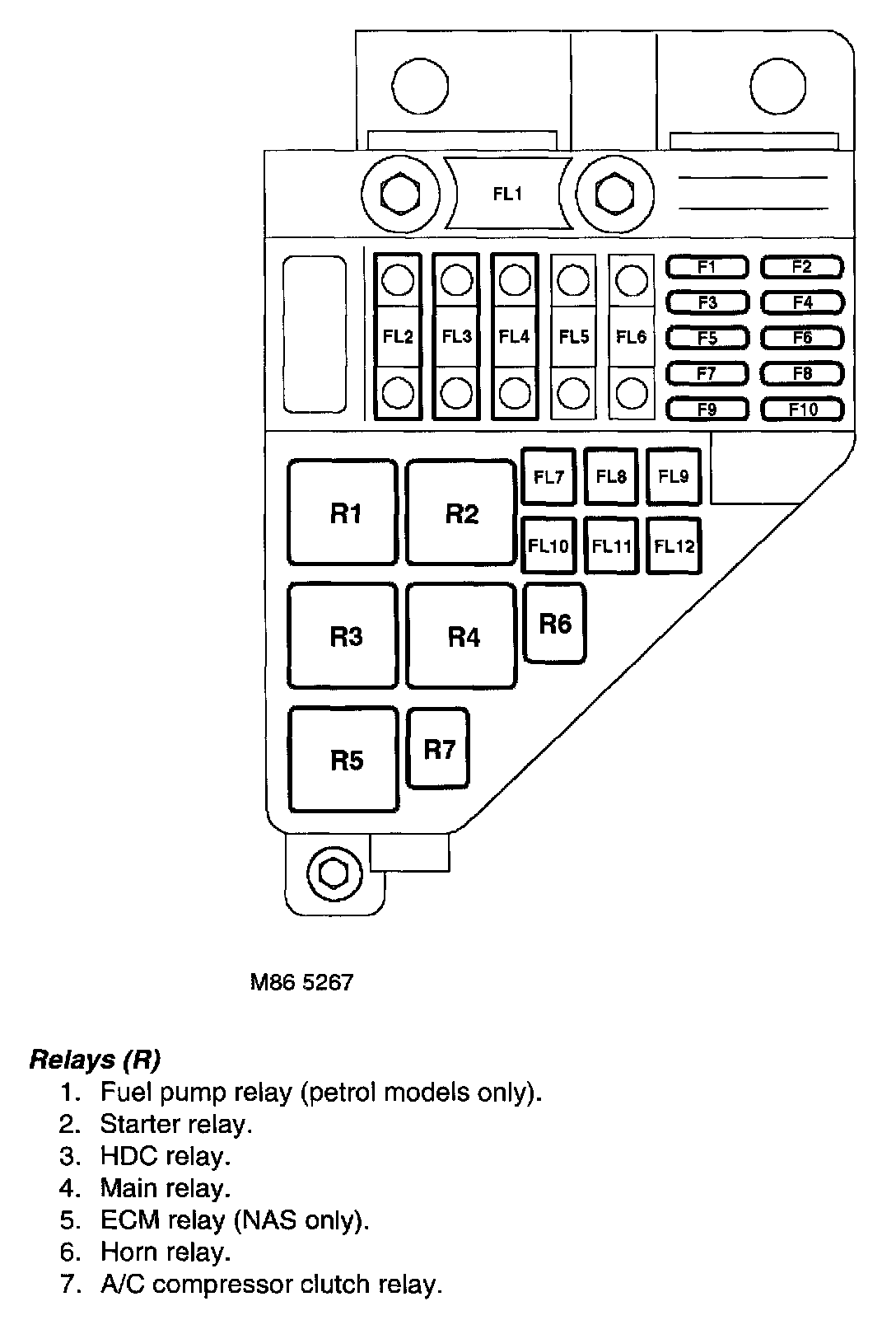

Panel & Relays:

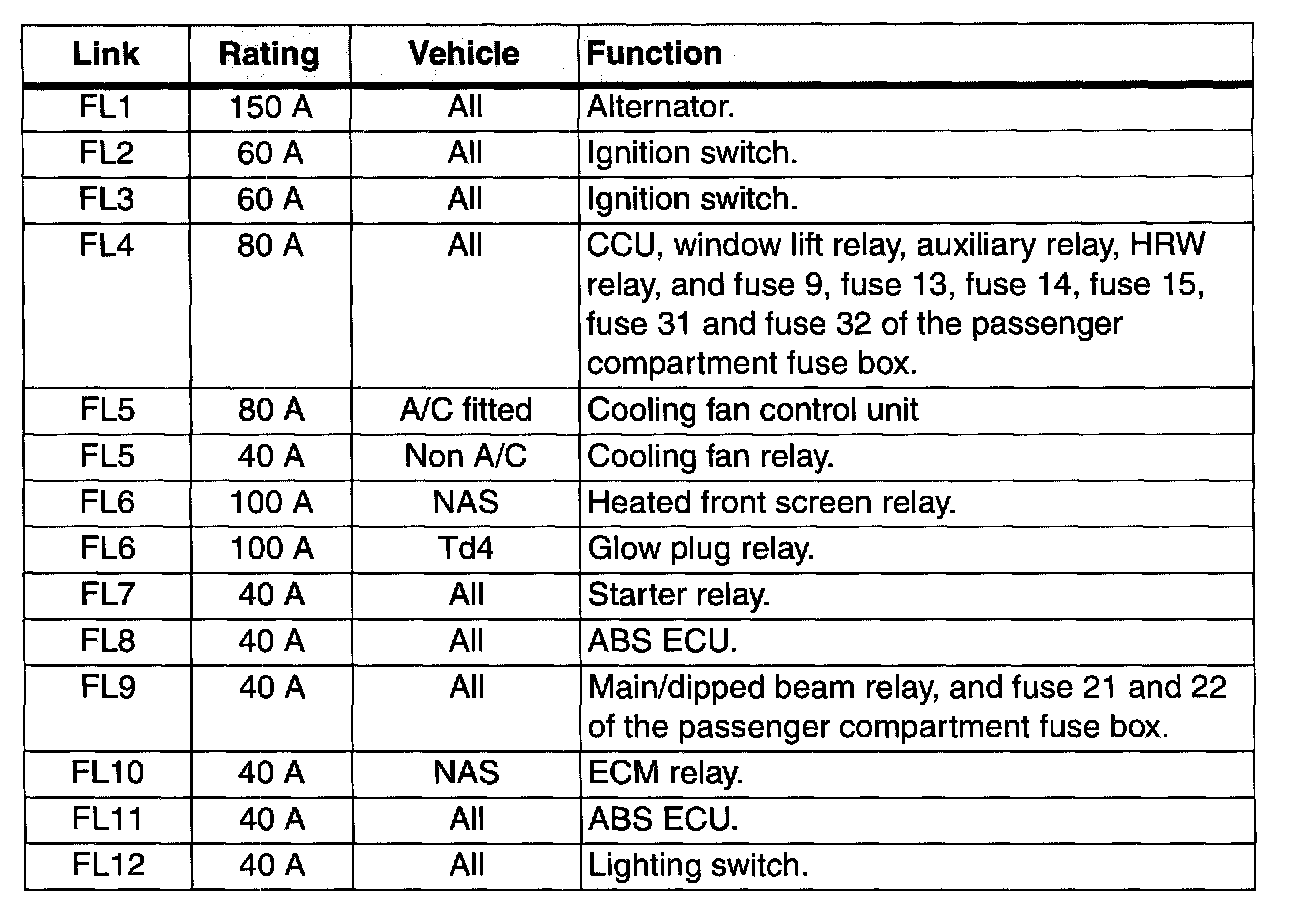

Fusible Links:




Fuses:






Passenger Compartment Fuse Box - behind the driver side cubby box

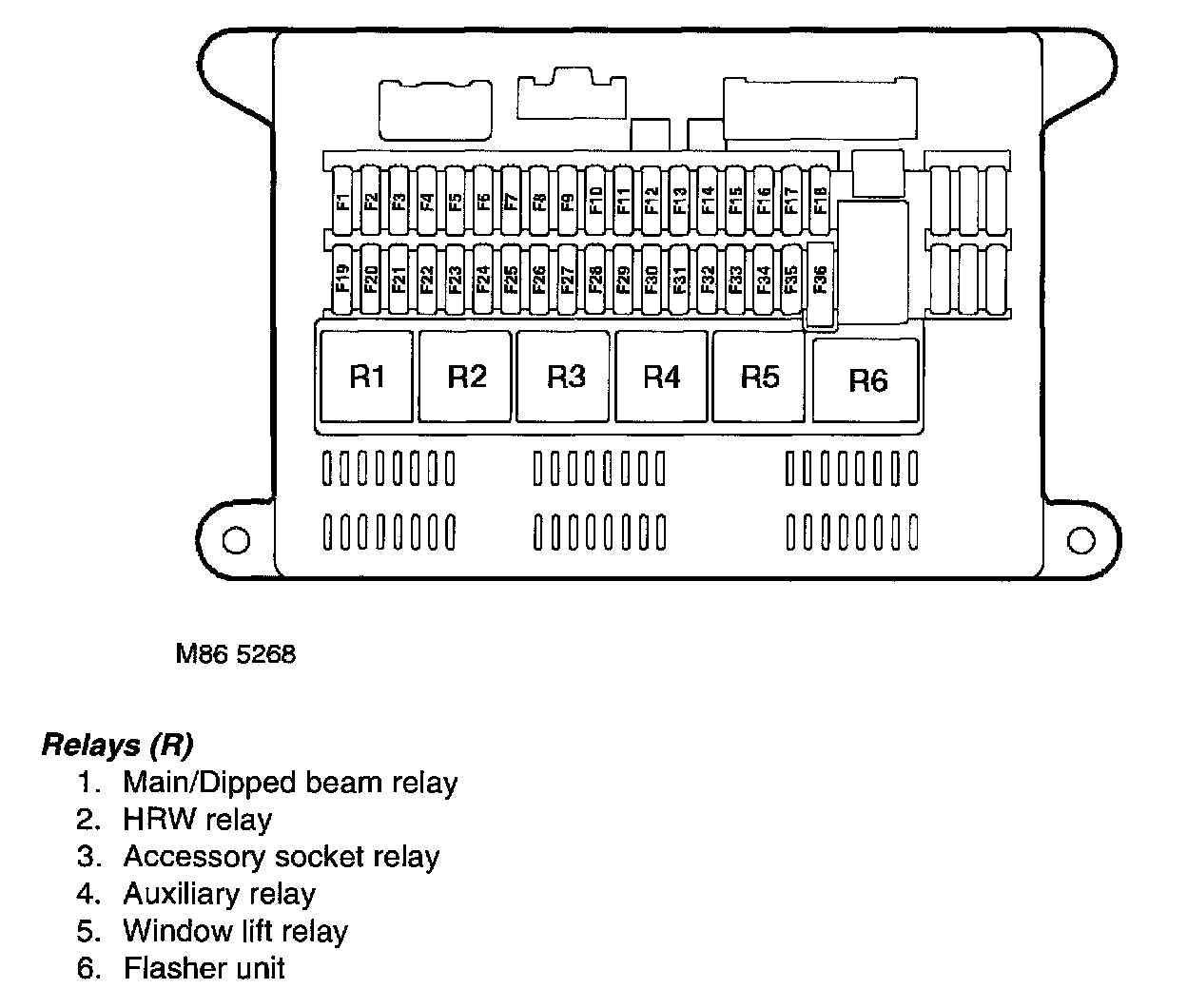

Panel & Relays:

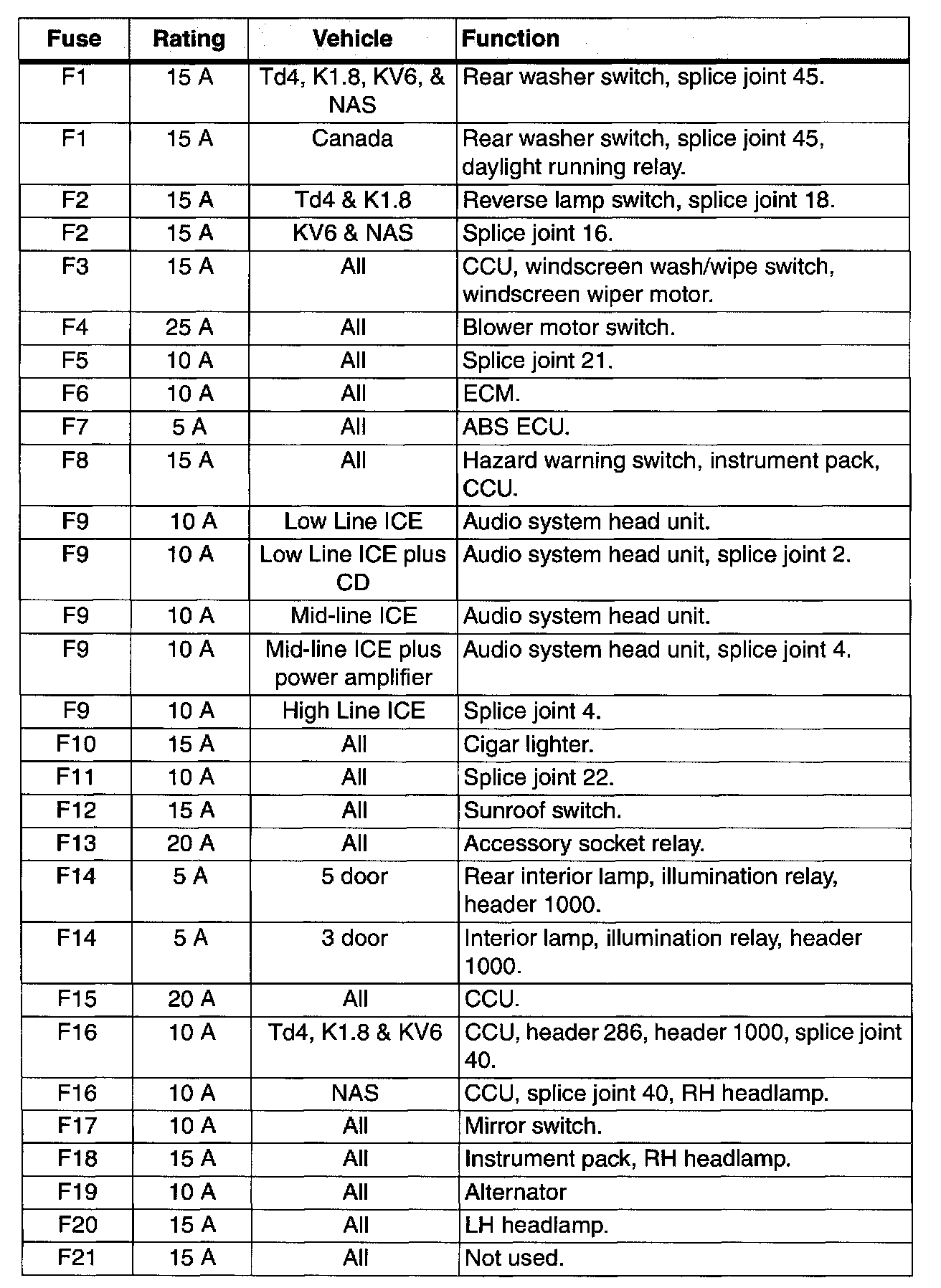

Fuses (F1 - F21):

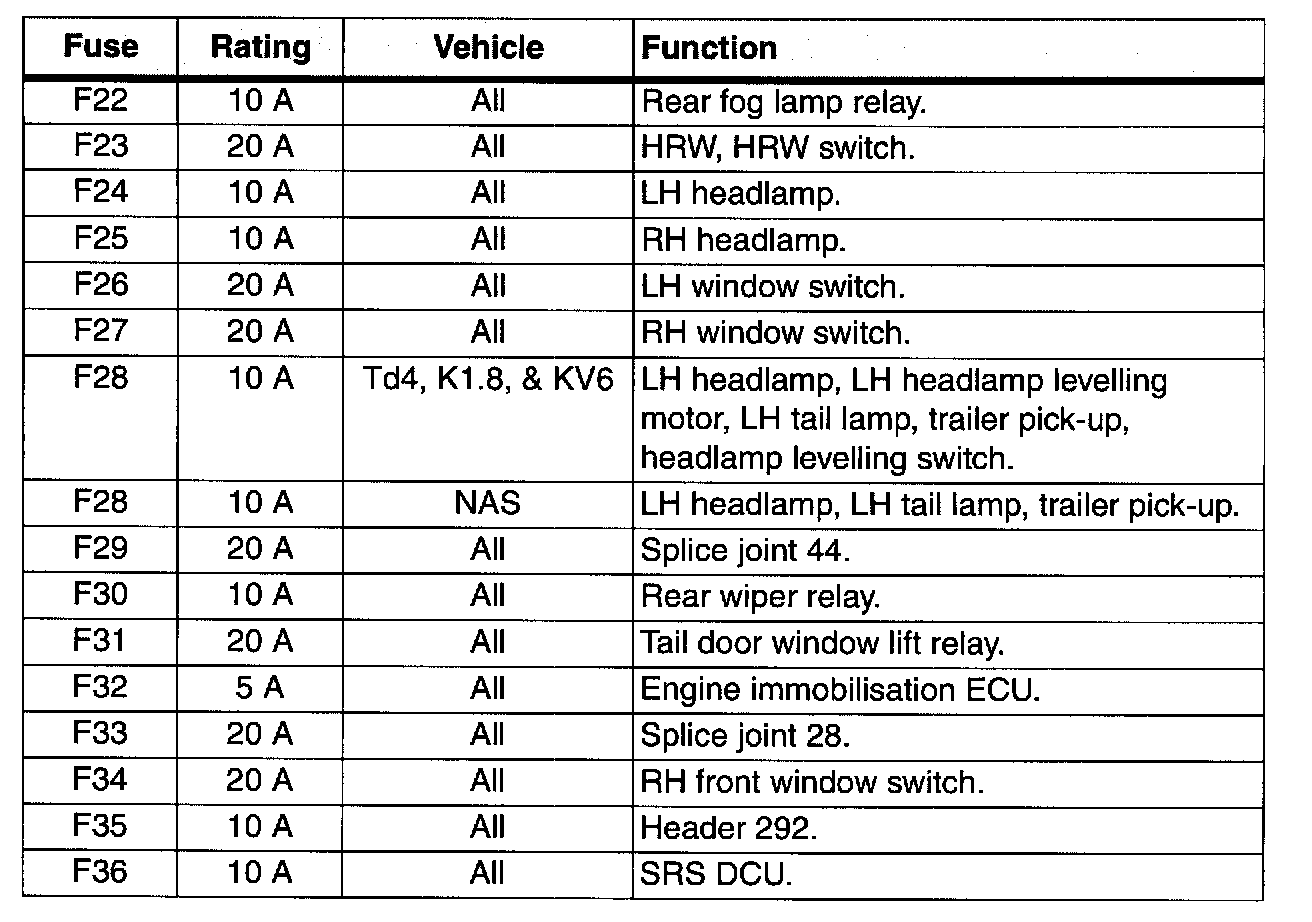

Fuses (F22 - F36):
