Controller Area Network System

Description

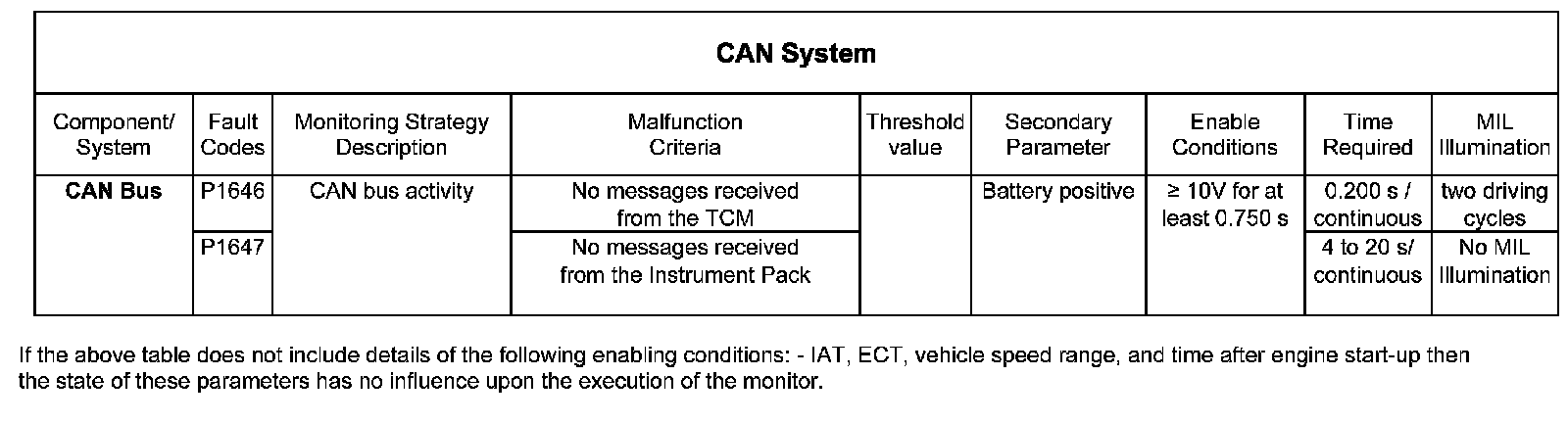

A CAN bus architecture is employed on the Freelander vehicle between the engine, transmission, brake and instrument pack control modules. A fault is detected if the battery voltage is greater or equal to 10 V for at least 0.750 s and no CAN messages have been received from the TCM or the instrument pack.
