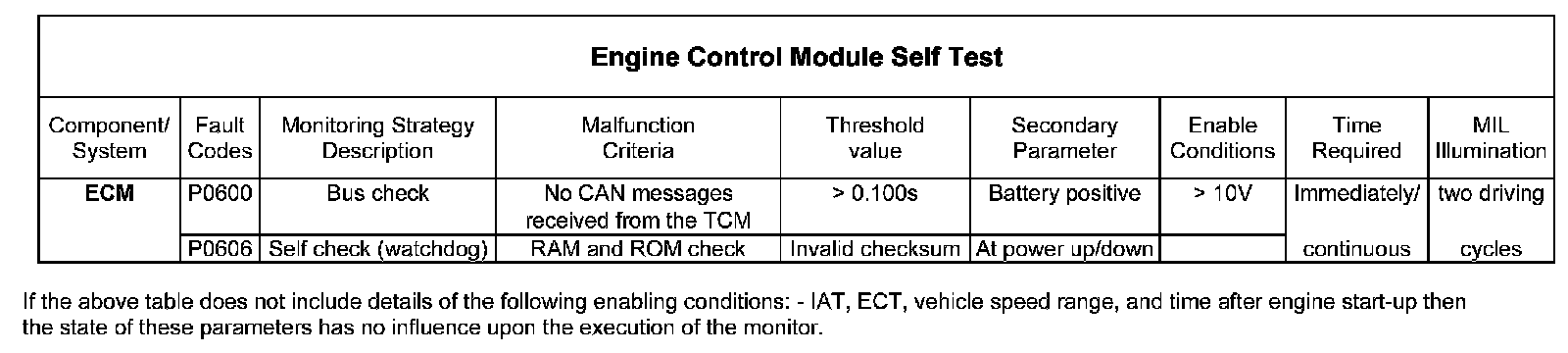

Engine Control Module Self Test

Description
The ECM performs a number of self-test integrity diagnostics on its internal hardware and software to check for faults. An error is detected if the ECM receives no CAN messages for at least 0.1 seconds or the calculated checksum at power up/down is incorrect.
