Control Module: Service and Repair

ECU
Remove

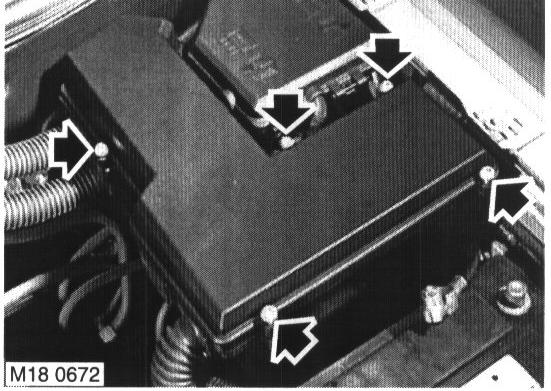

1. Loosen 5 screws and remove 'E'- box lid.





2. Release 2 retainers and withdraw ECU.
3. Disconnect multiplug from ECU and remove ECU.

Refit
1. Connect multiplug to ECU.
2. Locate and secure ECU.
3. Fit 'E'- box lid and tighten screws.
