Torque Specifications

Torque Wrench Settings

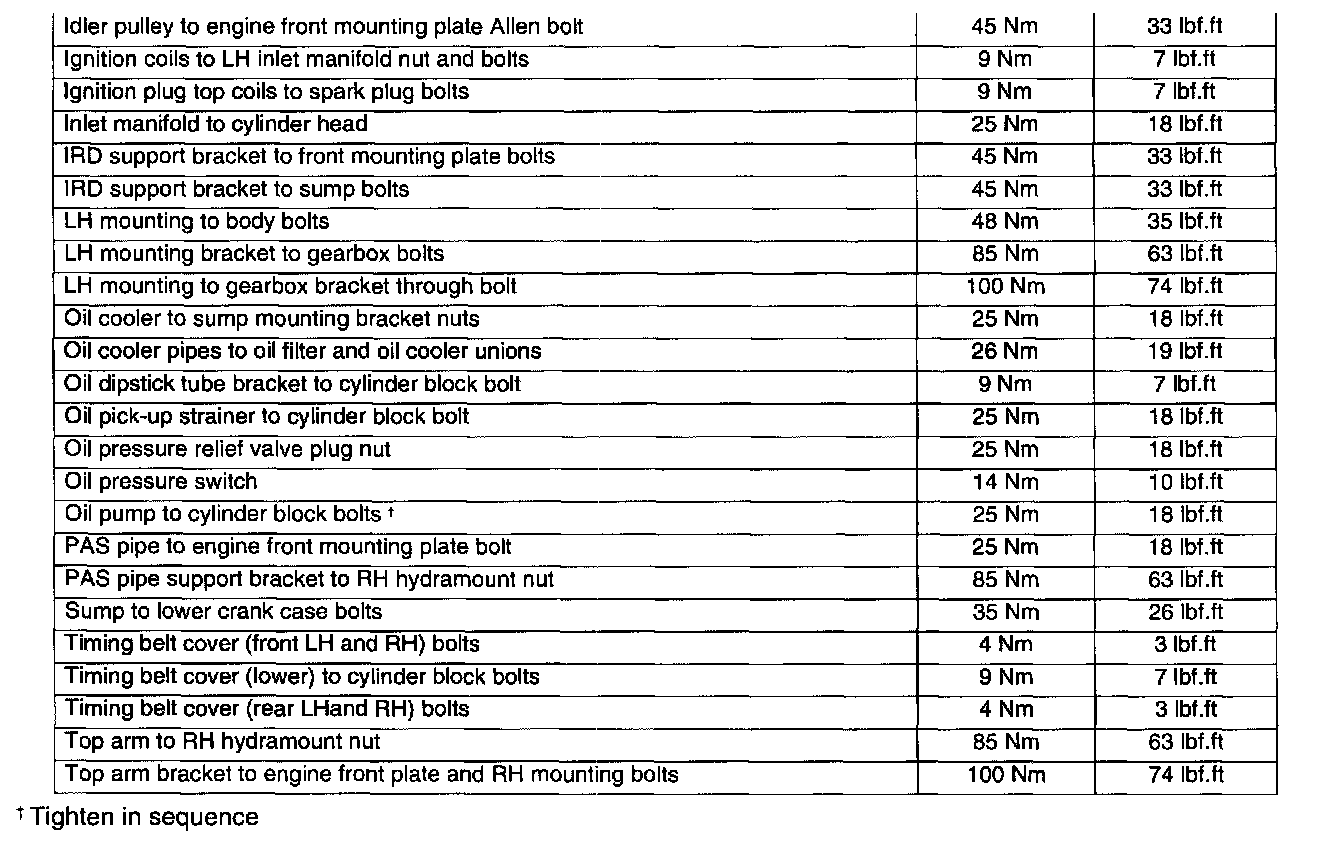

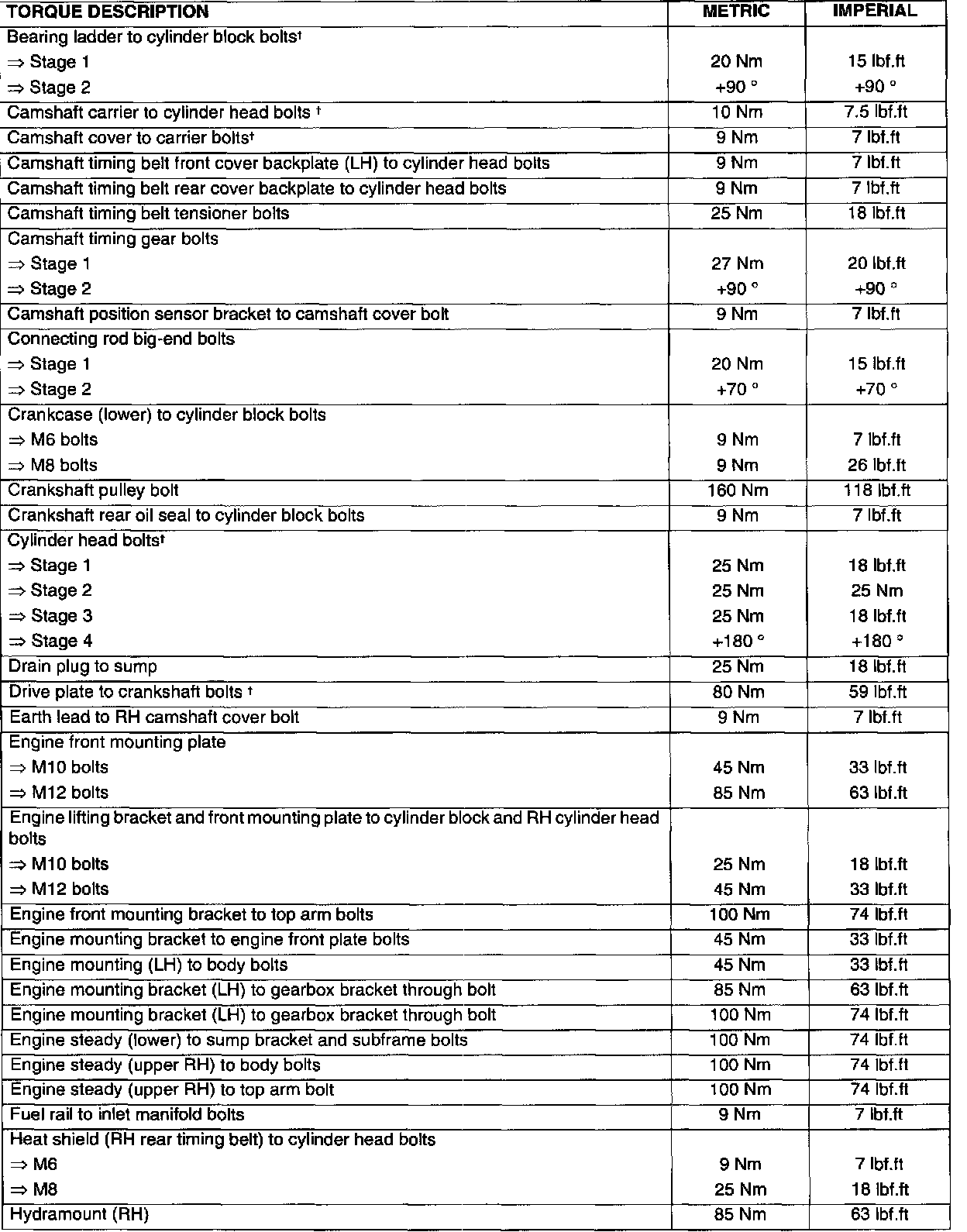

Engine torque specs

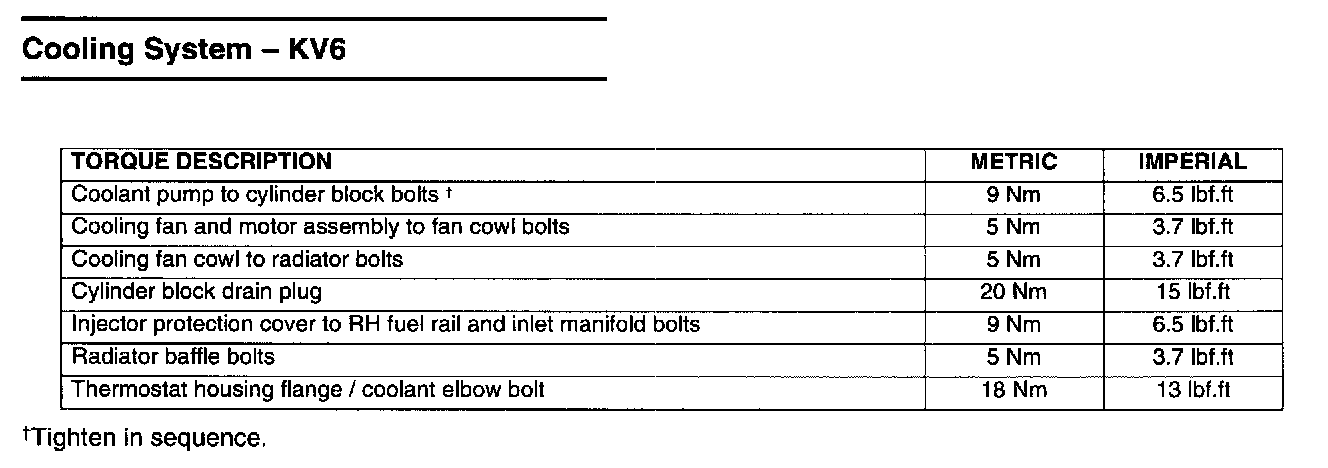

Cooling system torque specs

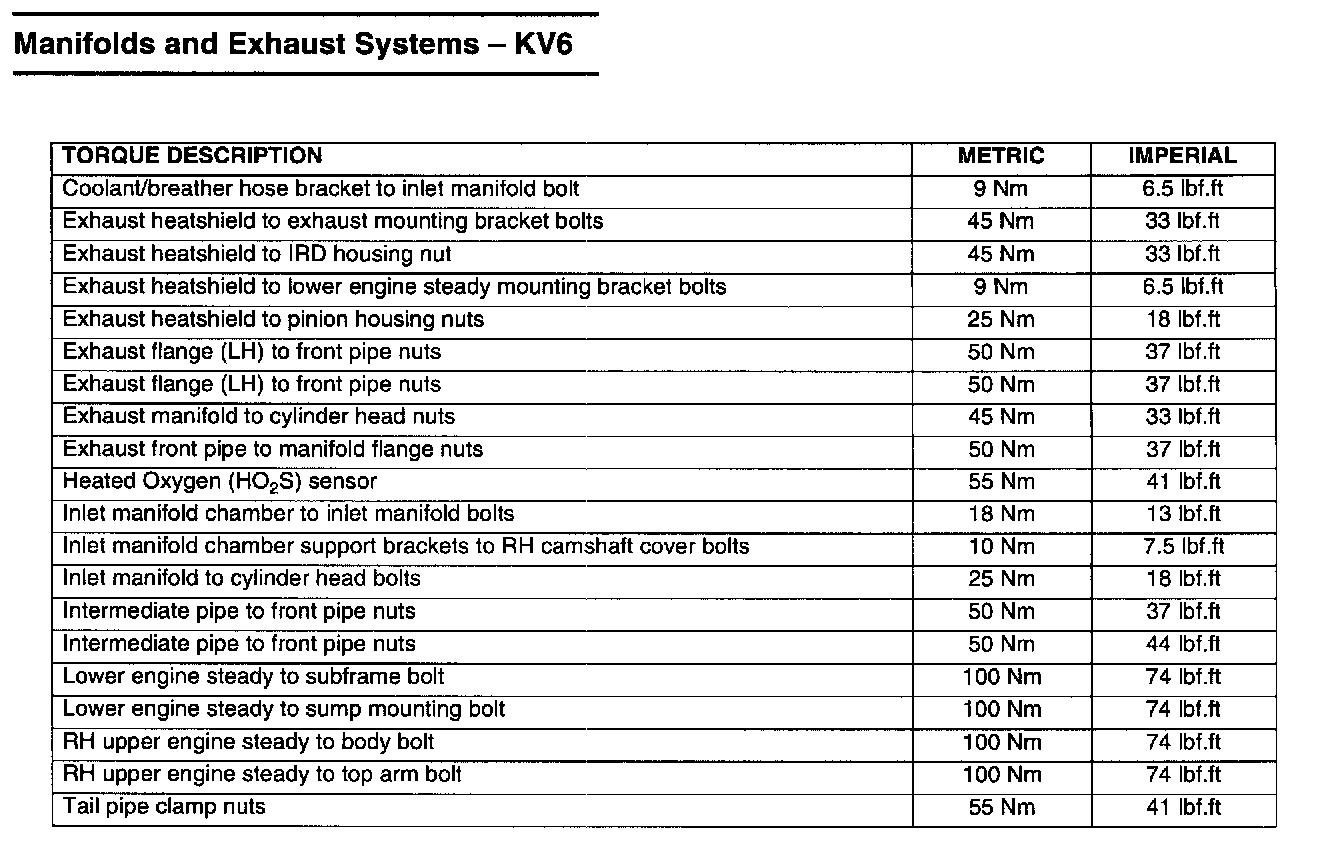

Manifolds and Exhaust system torque specs

Note: Tightening sequences can be found in the components Service and Repair articles.
