Power Window Control Module: Service and Repair

Control Unit - Window Lift

Service Repair No - 86.25.39

Remove
1. Remove driver's side fuse box.

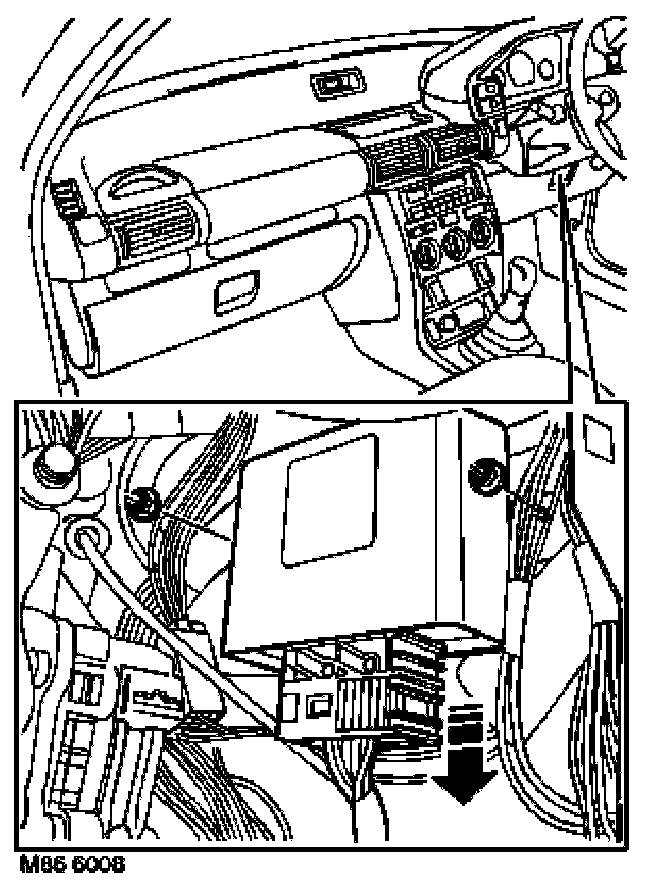

2. Remove 2 nuts securing window lift control unit and release unit from studs.
3. Disconnect multiplug from window lift control unit and remove unit from vehicle.

Refit
1. Connect multiplug to window lift control unit.
2. Position unit and secure with 2 nuts.
3. Fit fuse box.
