86.25.39 Control Unit - Window Lift: Remove

  1. Remove driver's side fuse box.

    See 86.70.01 FUSE BOX - PASSENGER COMPARTMENT .

  2. Remove 2 nuts securing window lift control unit and release unit from studs.

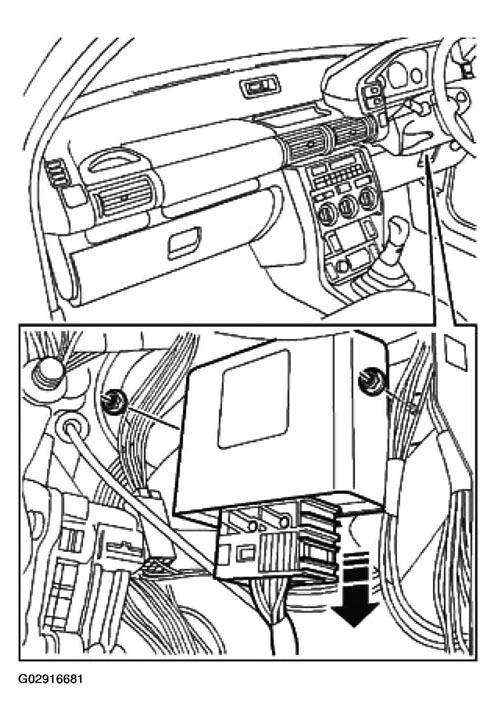

    Fig 1: Removing Window Lift Control Unit
    G02916681Courtesy of LAND ROVER NORTH AMERICA, INC.
  3. Disconnect multiplug from window lift control unit and remove unit from vehicle.
