Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

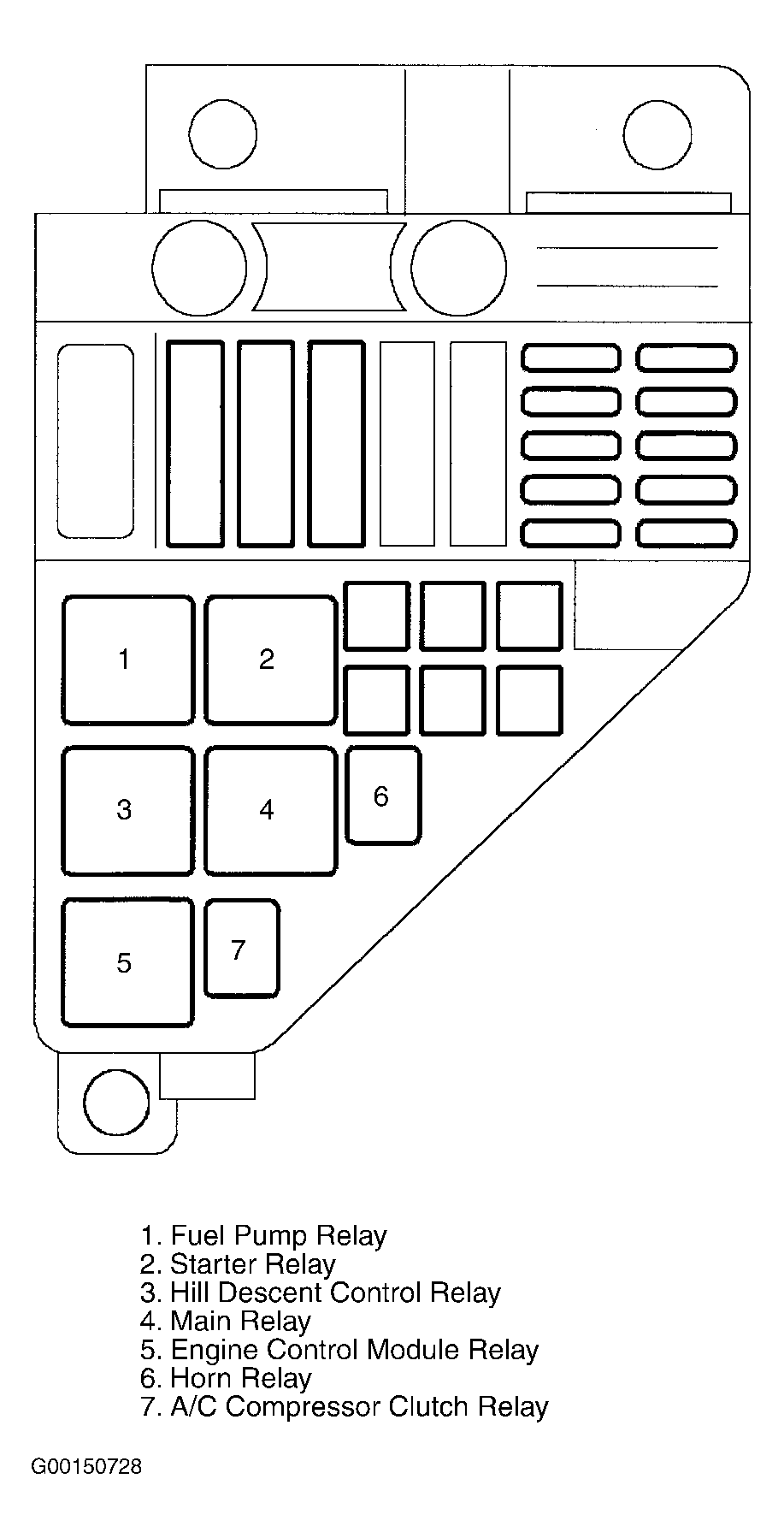

Fig 1: Engine Compartment Fuse Box

Courtesy of LAND ROVER NORTH AMERICA, INC.

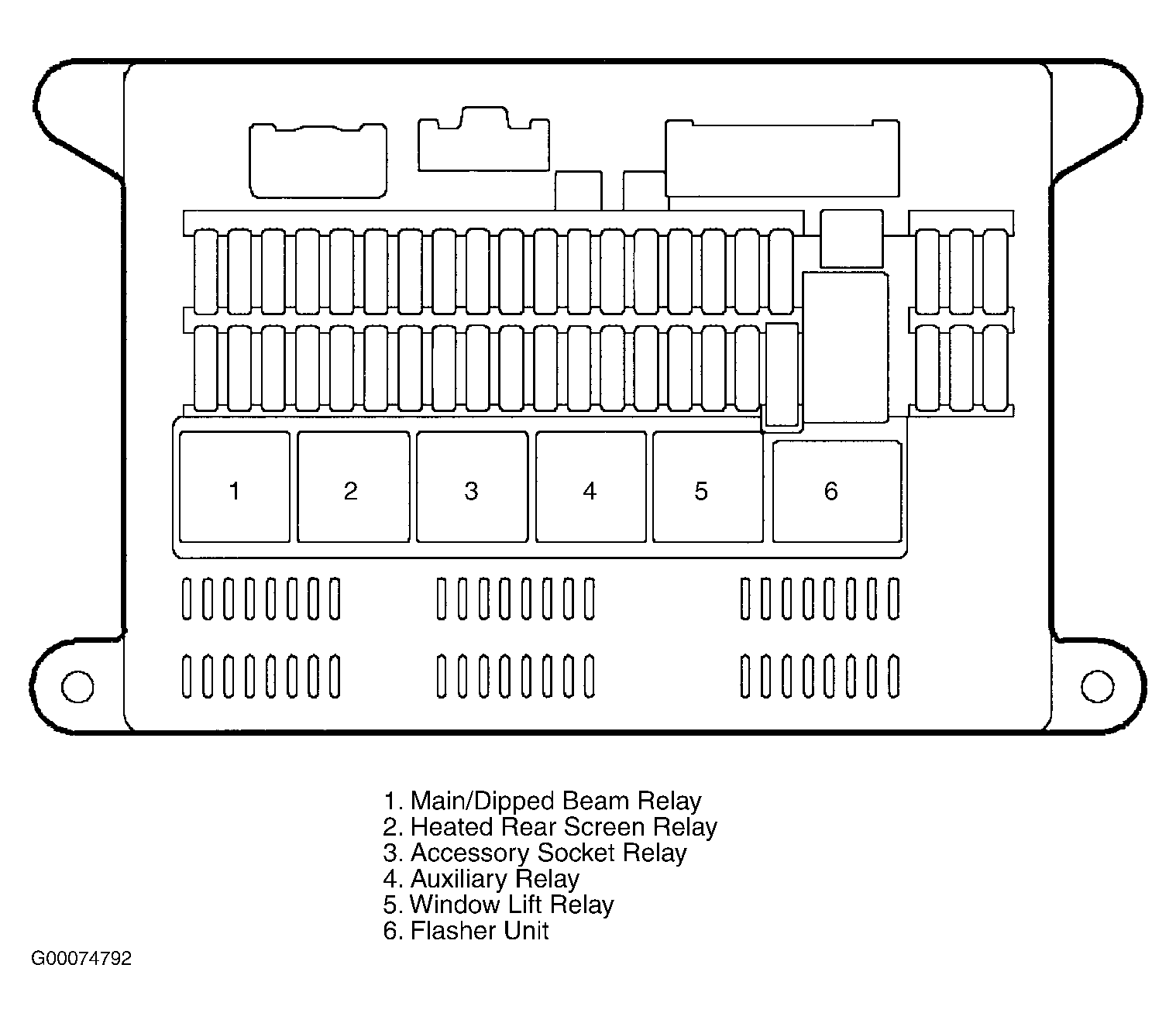

Fig 2: Passenger Compartment Fuse Box

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 3: Engine Compartment

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 4: Vehicle Overview

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 5: Control Units

Courtesy of LAND ROVER NORTH AMERICA, INC.

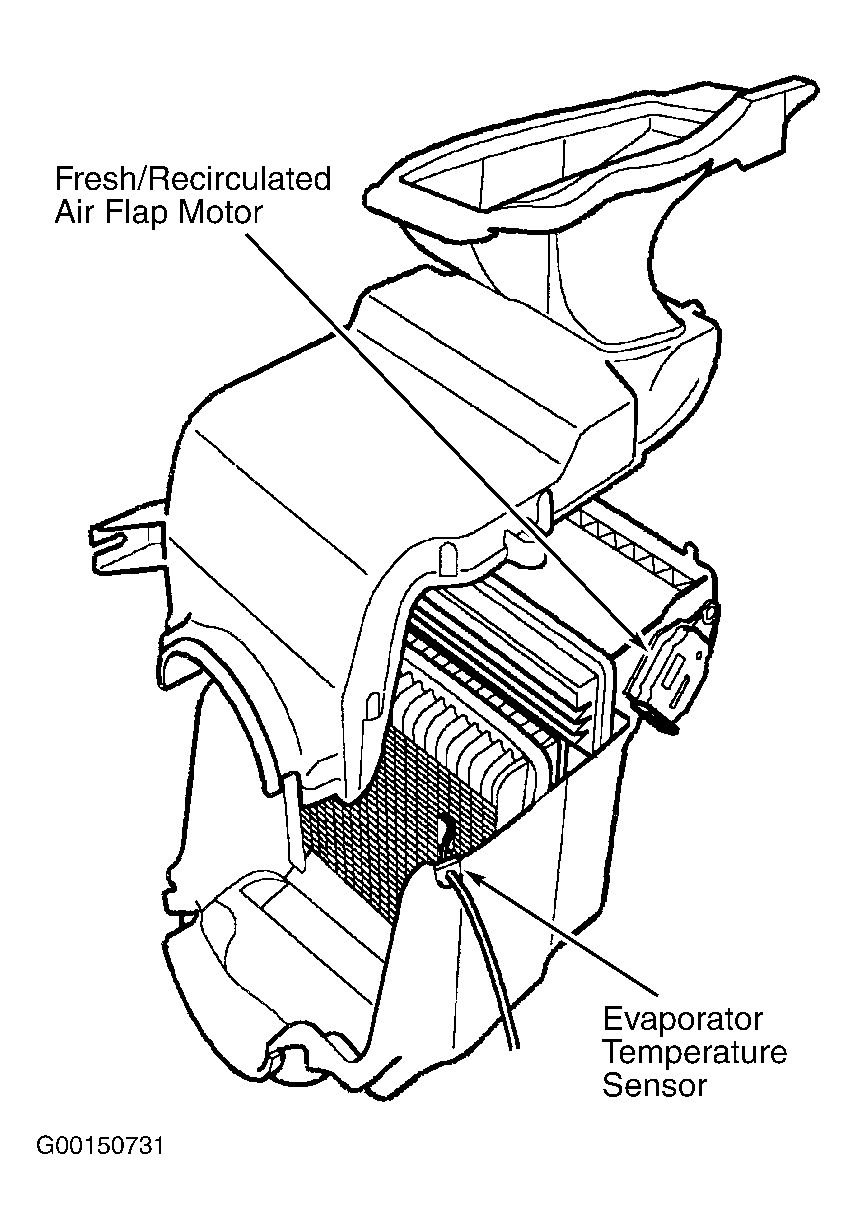

Fig 6: Cooling Unit & Evaporator

Courtesy of LAND ROVER NORTH AMERICA, INC.
