Control Unit Locations

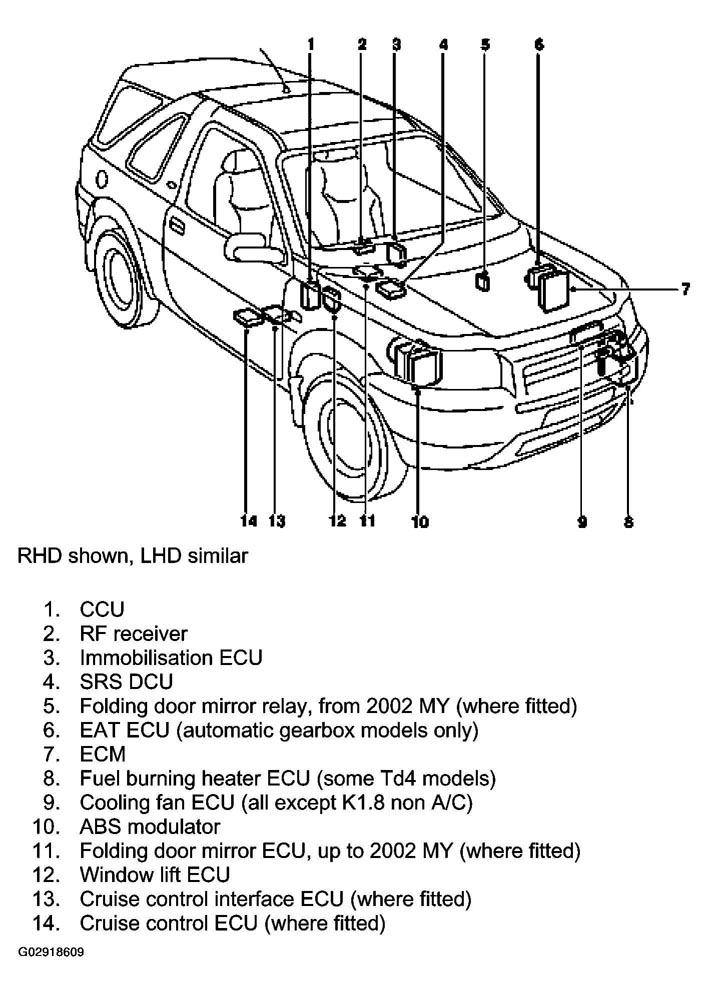

Fig 1: Identifying Control Unit Locations
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
