Alarm Module: Service and Repair

Remove
1. Disconnect battery earth lead.
2. Remove fascia.

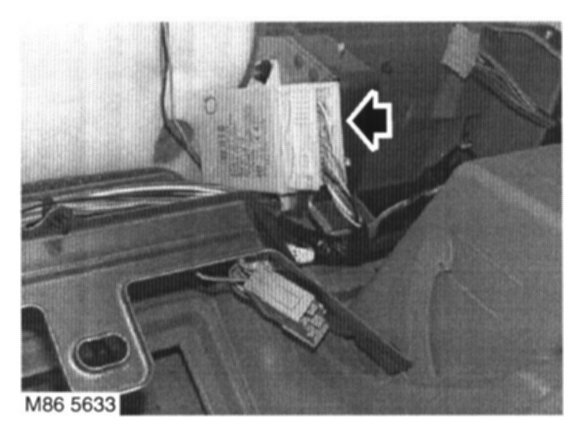

3. Remove 2 plastic nuts securing immobilization ECU and disconnect multiplug.

Refit
1. Connect ECU multiplug.
2. Position ECU, fit and tighten 2 plastic nuts.
3. Fit fascia.
4. Connect battery earth lead.
5. Initiate using TestBook.
