System Diagram

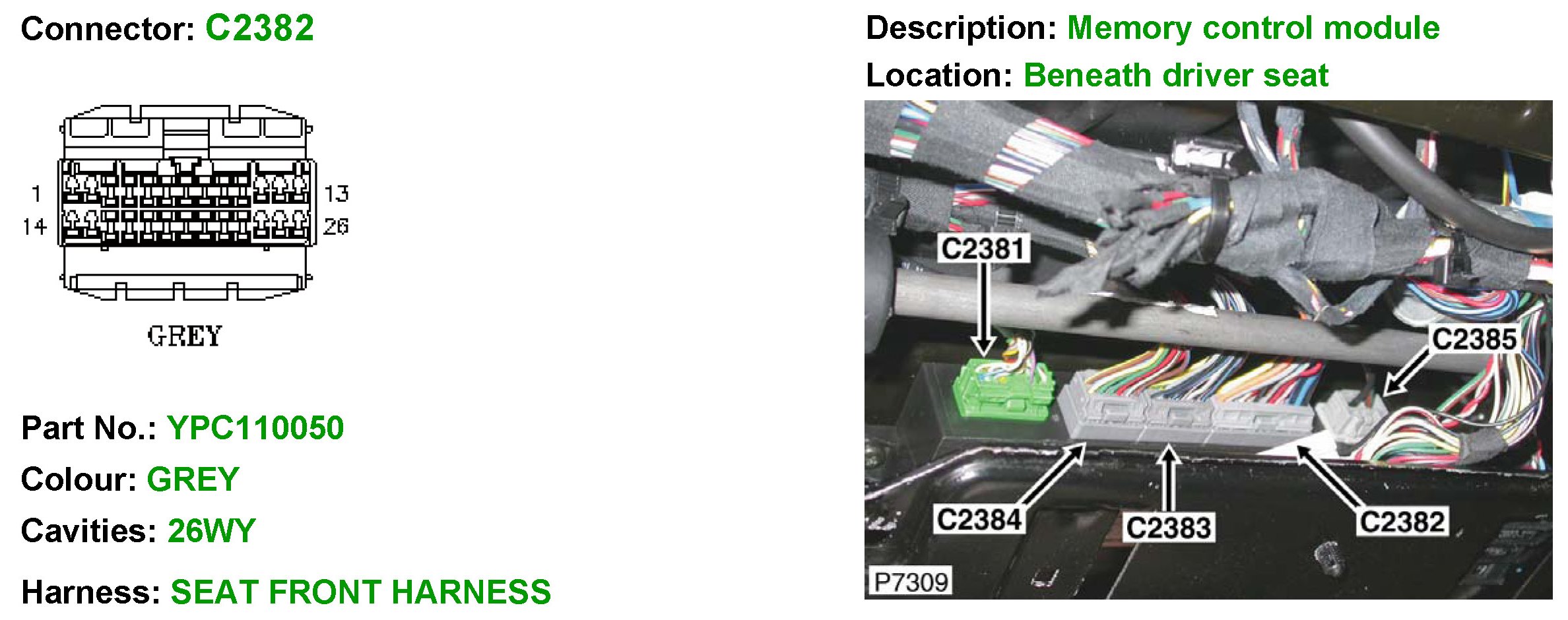

C2382 (Part 1):

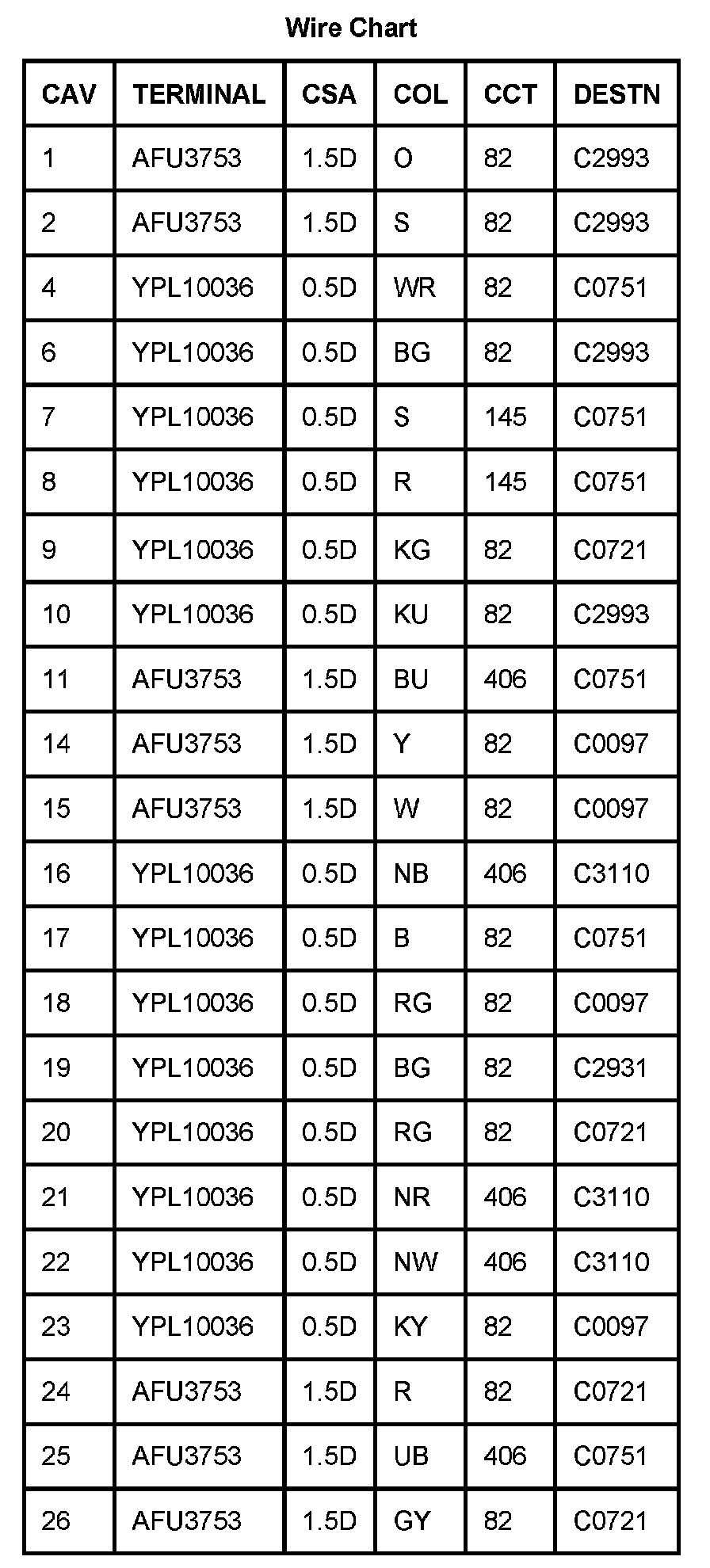

C2382 (Part 2):

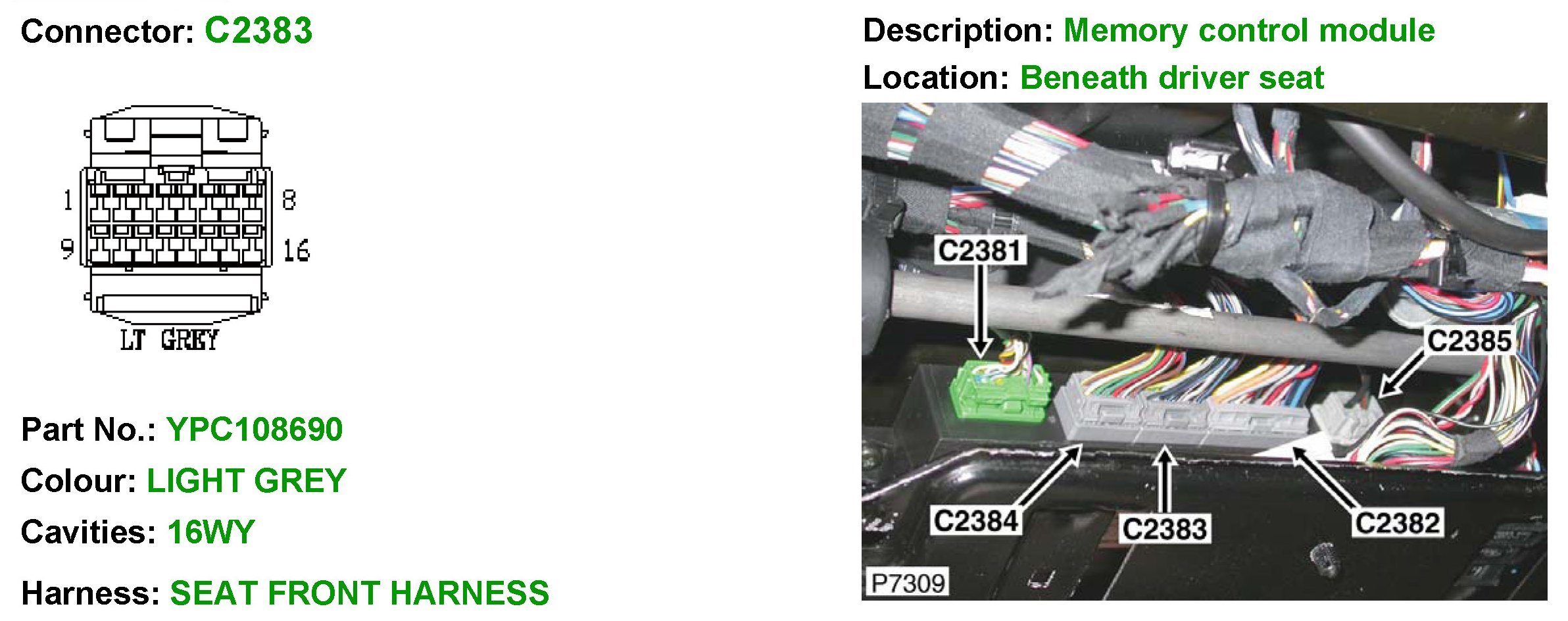

C2383 (Part 1):

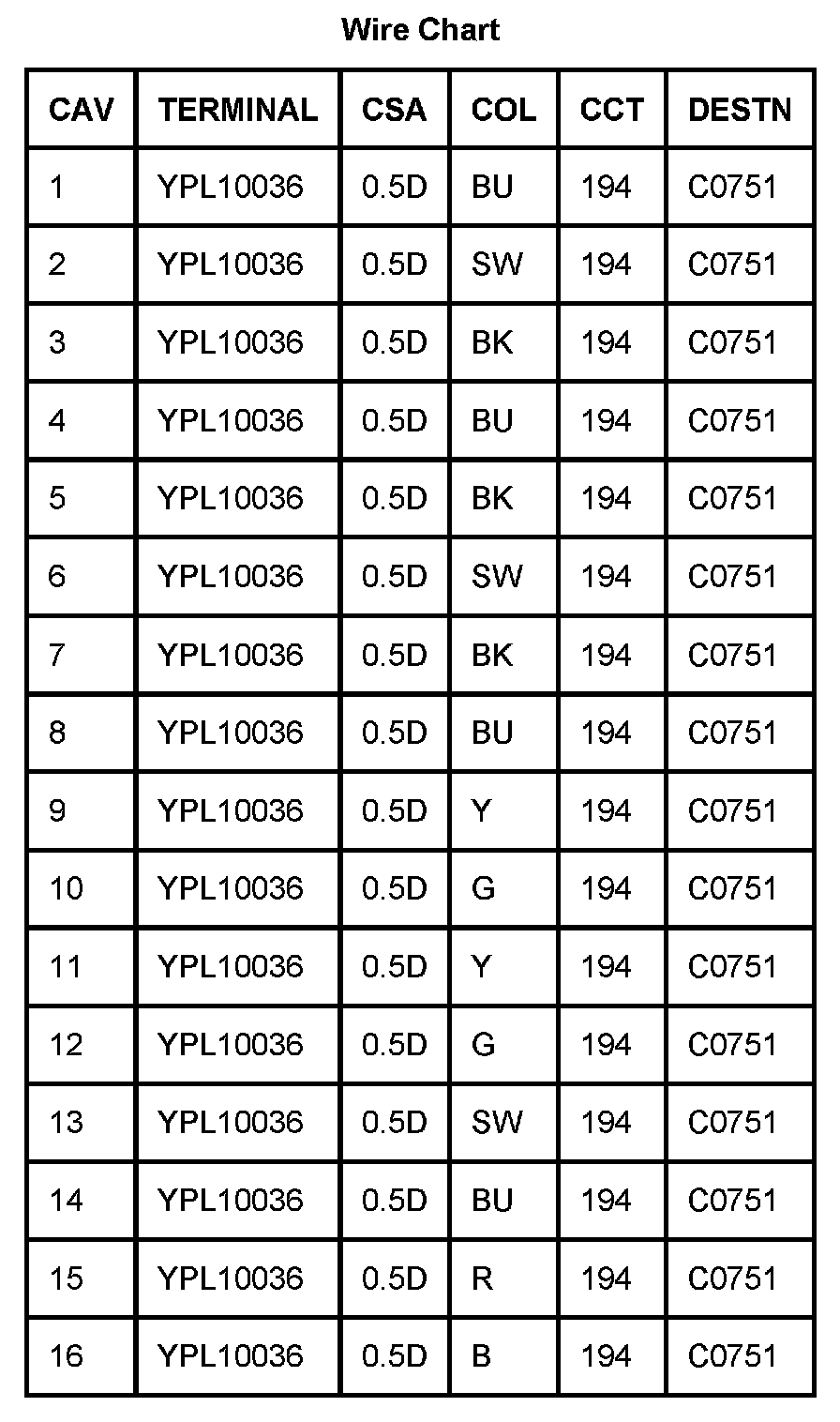

C2383 (Part 2):

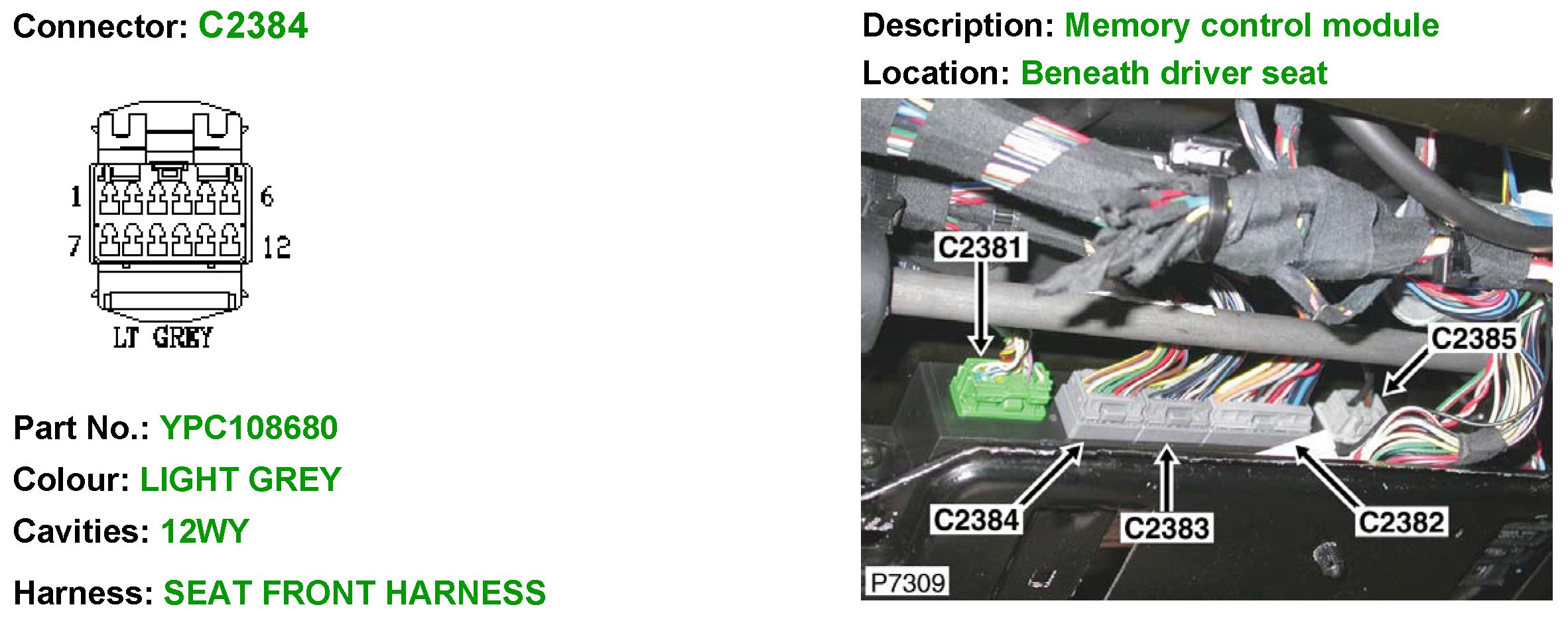

C2384 (Part 1):
C2384 (Part 2):

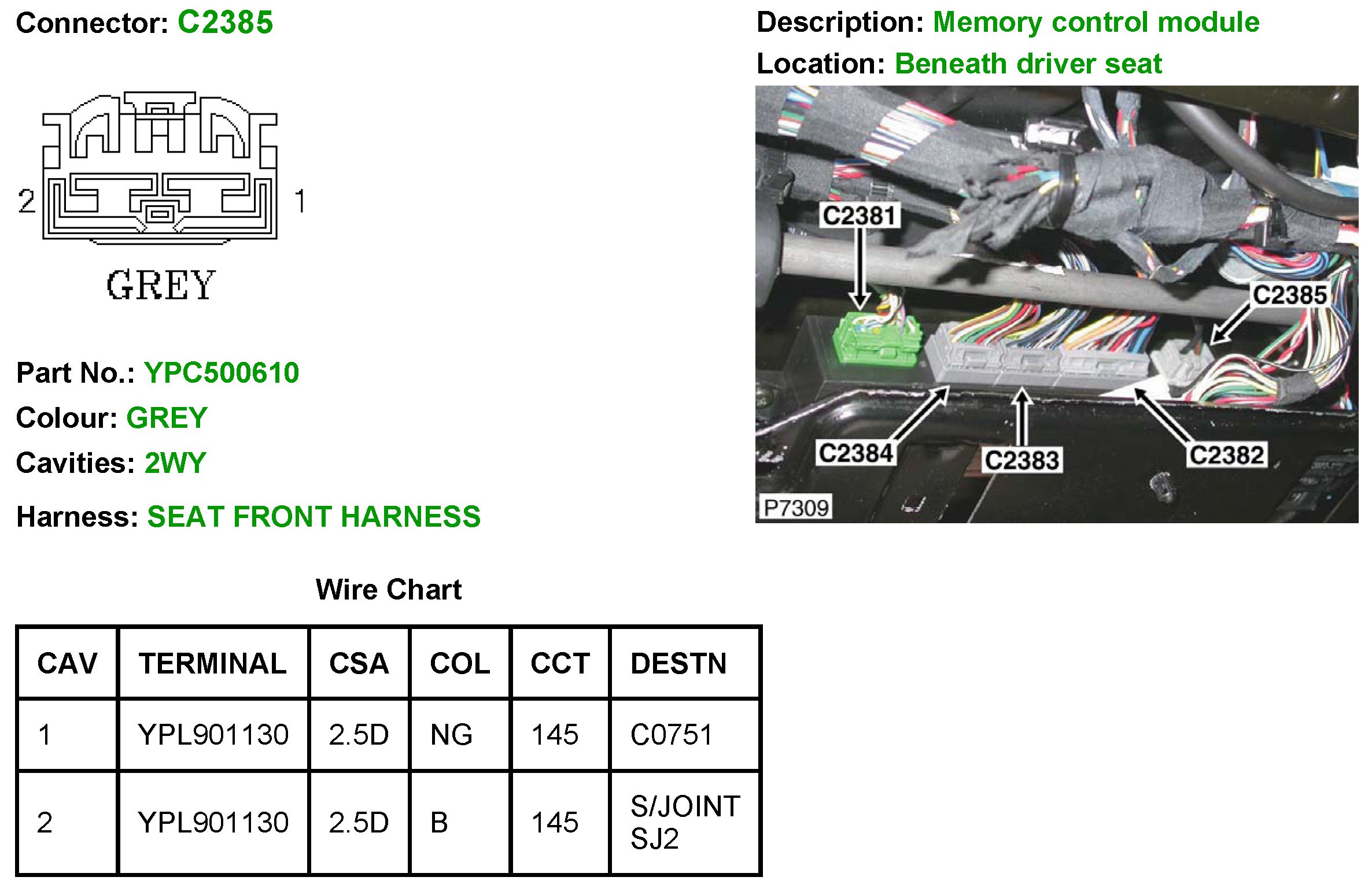

C2385:
