Seat Occupant Sensor
>>
Sensor-Occupancy-Detector
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Sensor-Occupancy-Detector

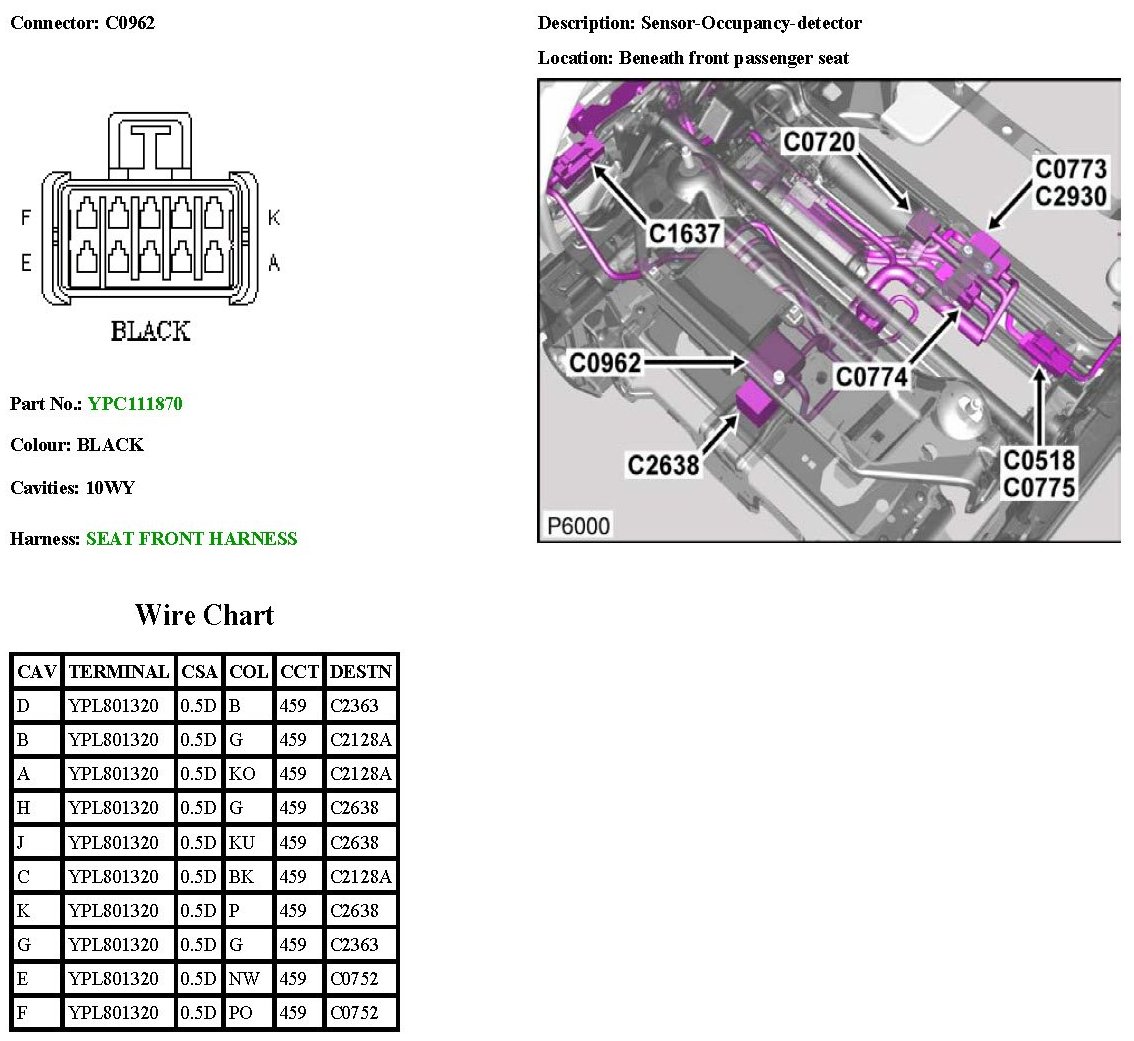

C0962:

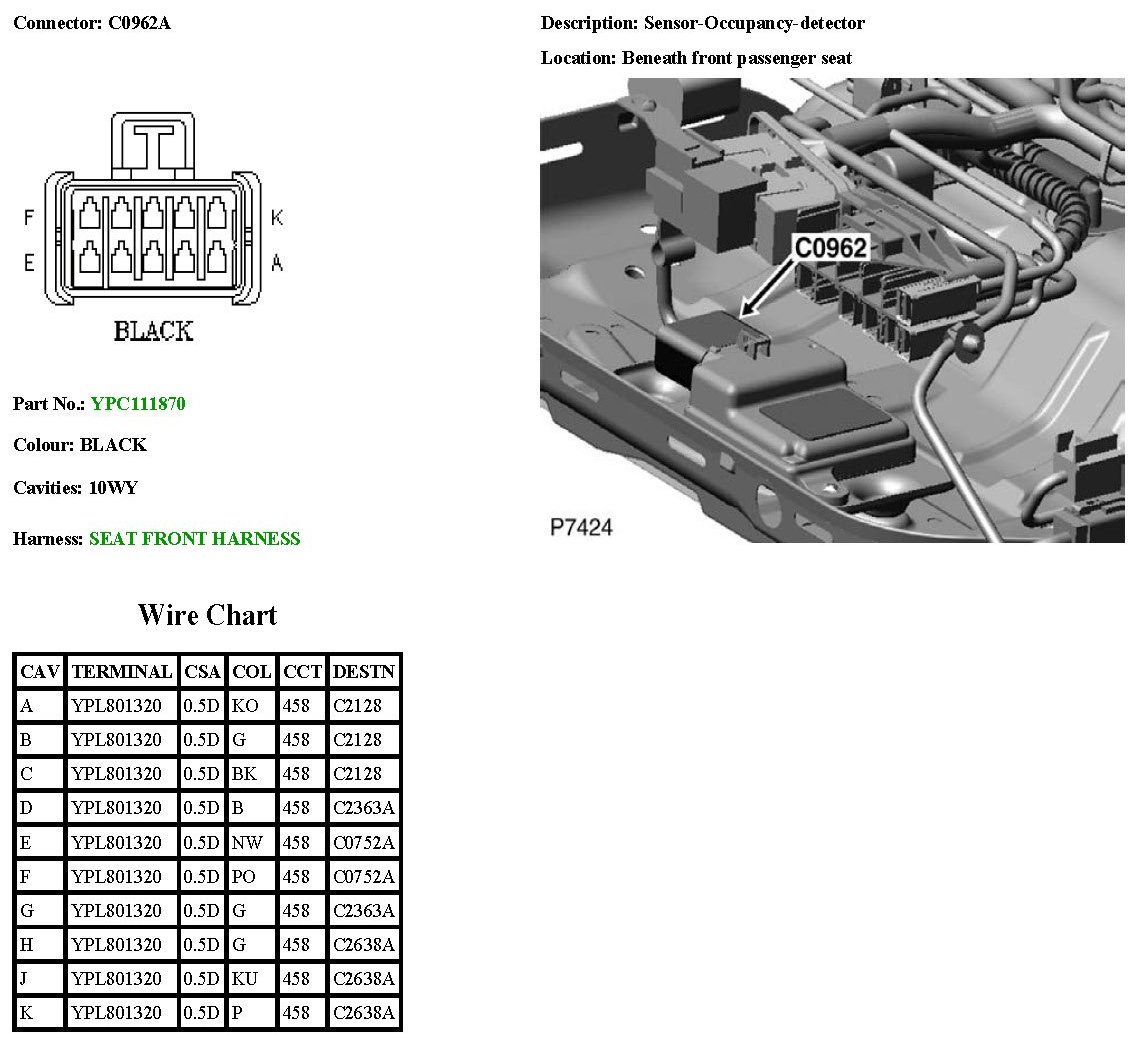

C0962A:
