Global Positioning System (GPS) Antenna

WARNING: This page is about a different car, the 2009 Land Rover Range Rover, 2008 Land Rover Range Rover, and 2007 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR CARS, INC.

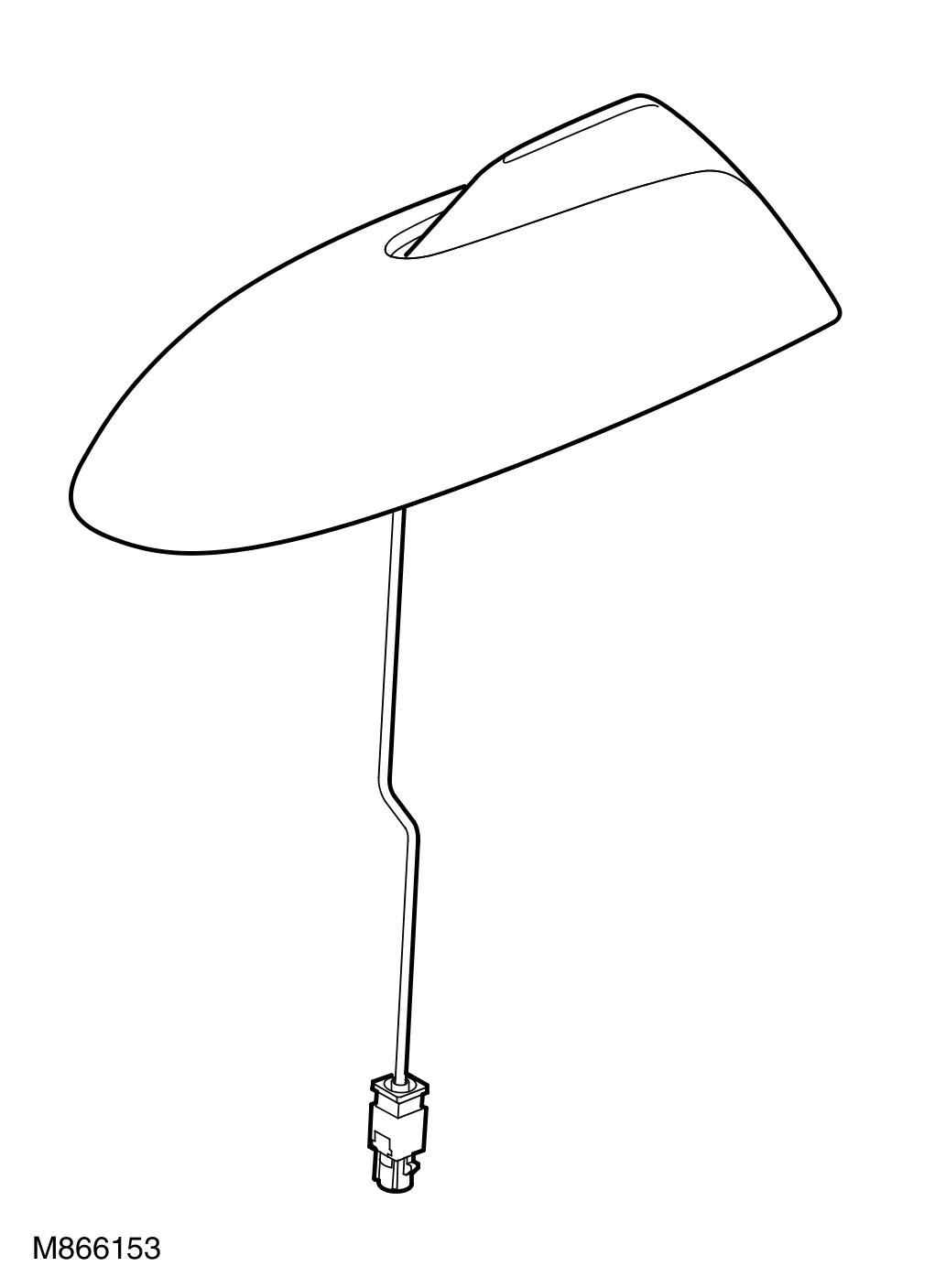

The global positioning system (GPS) antenna is located in the roof pod which is shared with the telephone system and the SDARS system where fitted. The roof pod is located externally in a central position towards the rear of the roof and is connected to the navigation computer via a single coaxial lead.

The antenna passes signals from the global positioning system (GPS) satellites to the navigation computer. These signals are processed by the global positioning system (GPS) receiver in the computer to calculate the vehicle position.

It is possible for the global positioning system (GPS) antenna to lose the global positioning system (GPS) signal from the satellites in hilly or tree lined areas, built up areas with tall buildings, multi-storey car parks, garages, tunnels, bridges and during heavy rain/thunderstorms. If the global positioning system (GPS) signal is lost, the navigation computer will continue to give route guidance using memory mapped data from the digital versatile disc (DVD) map.
