Component Locations



Rear View Mirrors

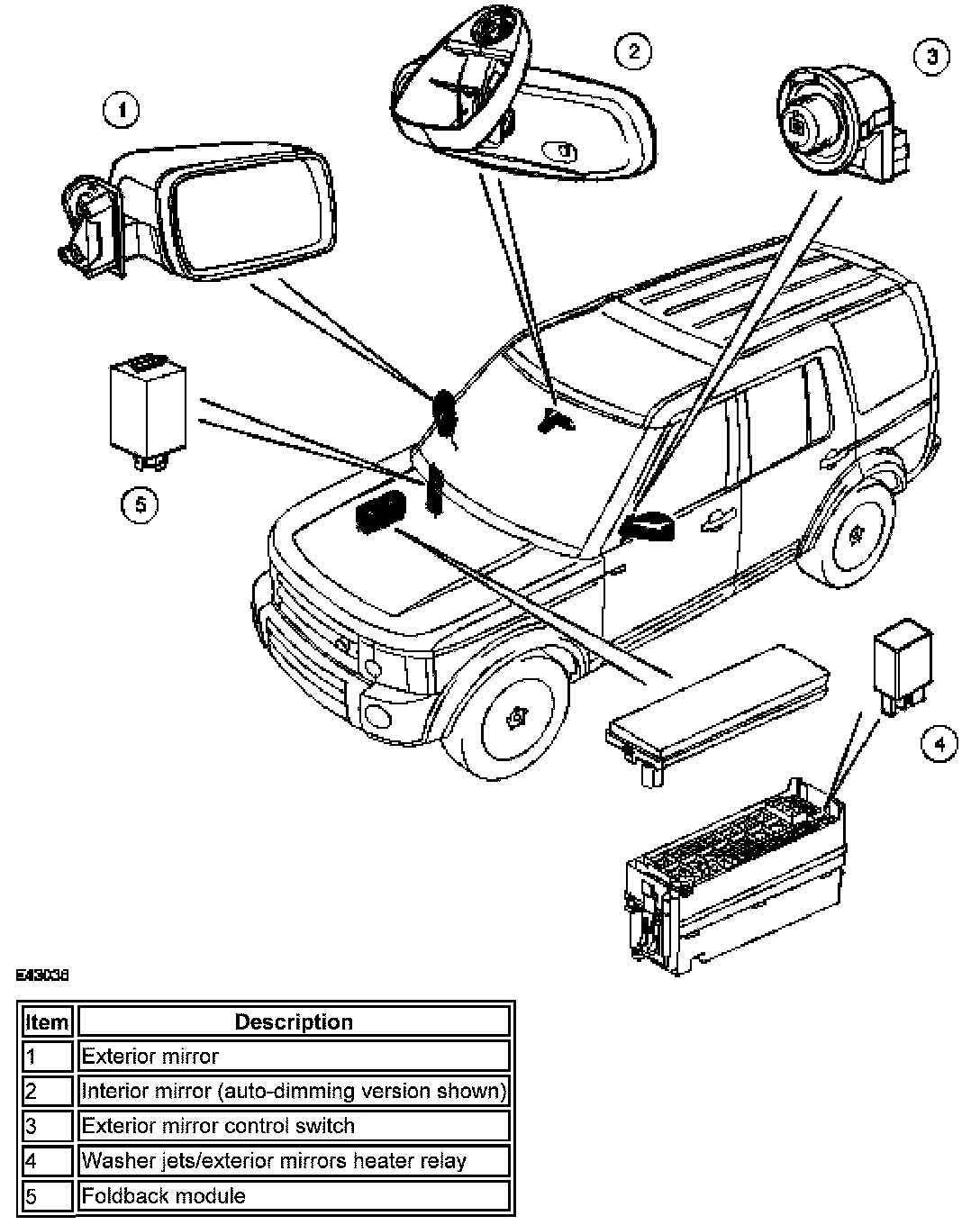

COMPONENT LOCATIONS

NOTE: LHD model shown, RHD model similar.
