Alarm Module, (Vehicle Antitheft)

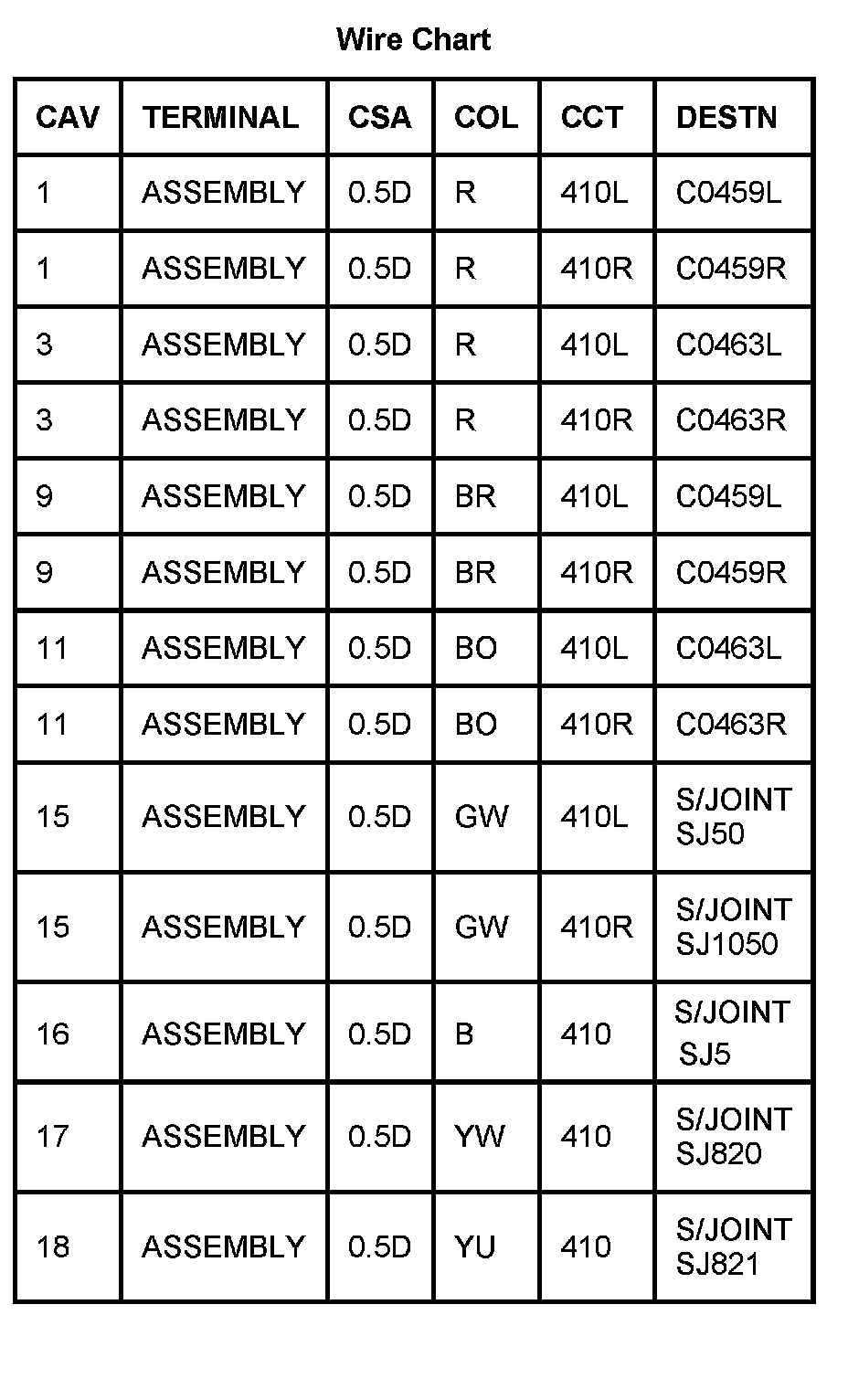

C2160 (Part 2):

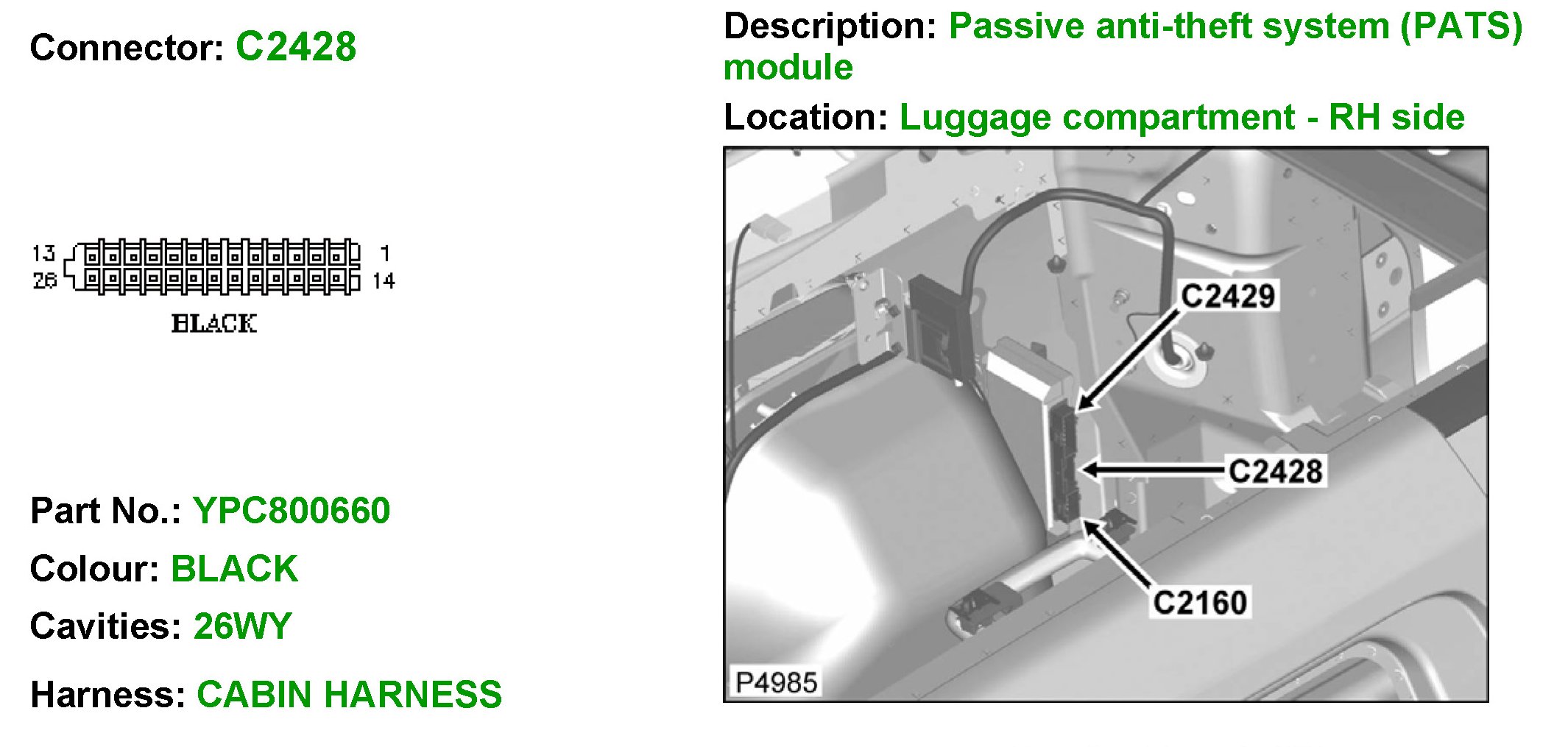

C2428 (Part 1):

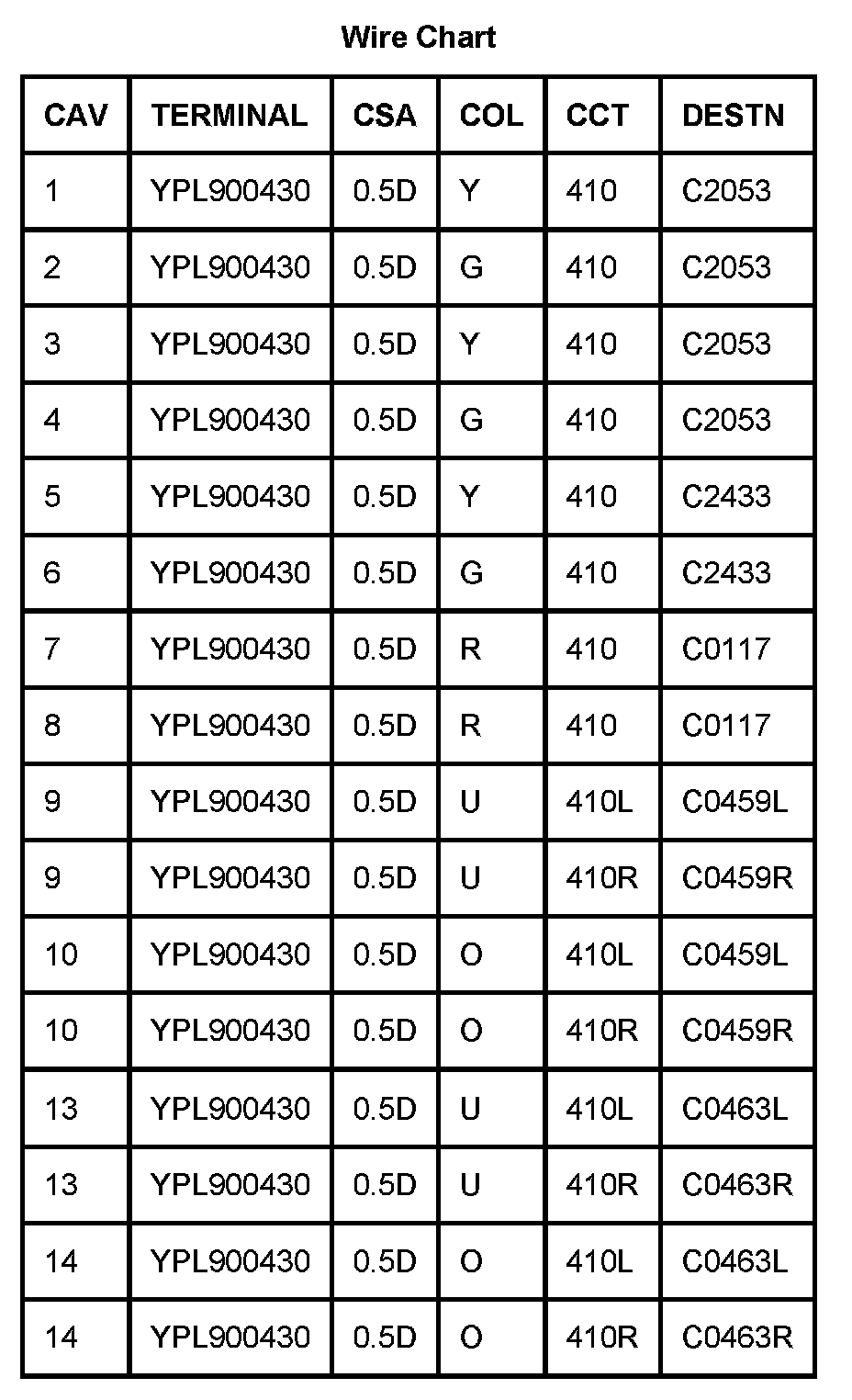

C2428 (Part 2):

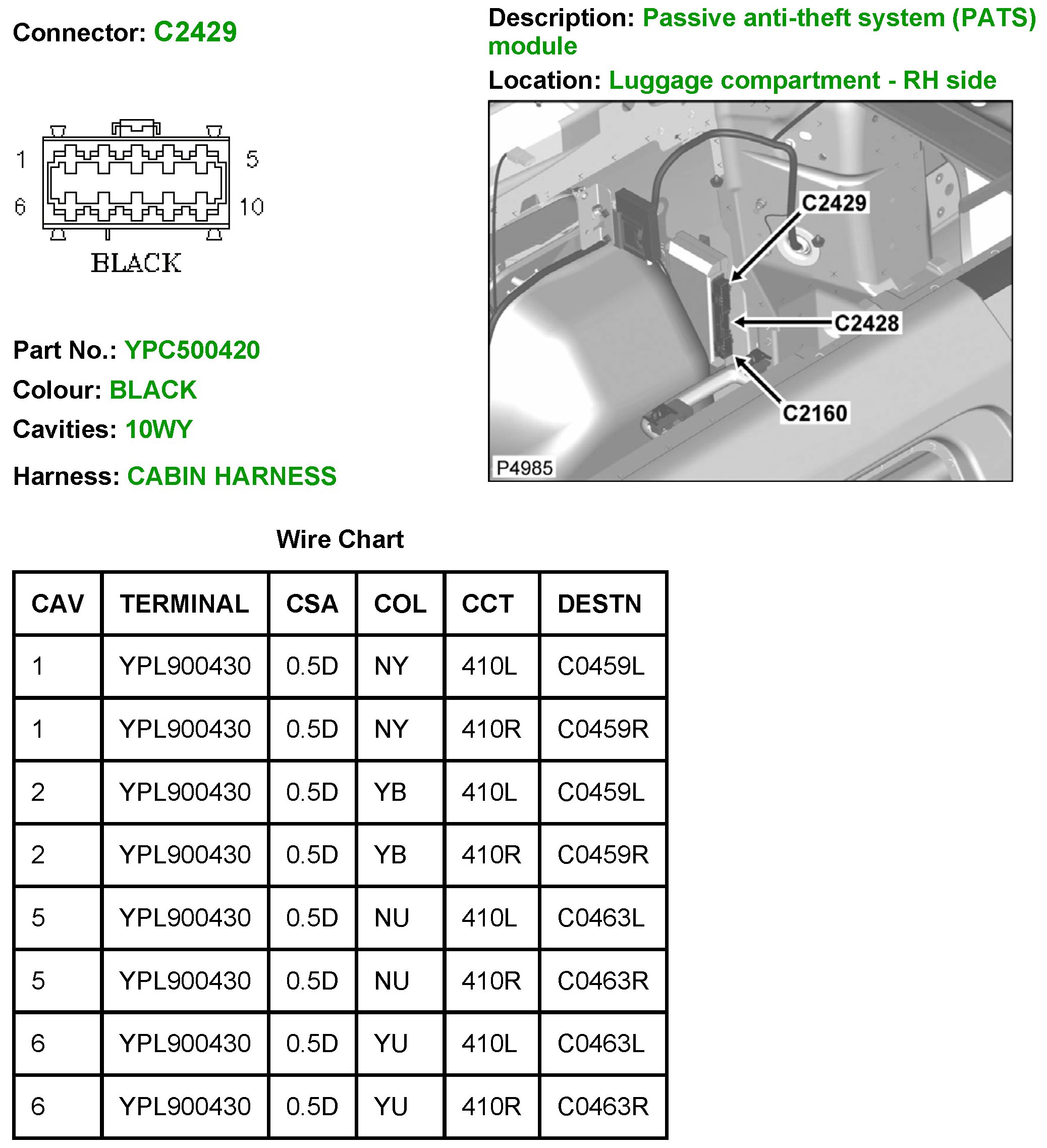

C2429:

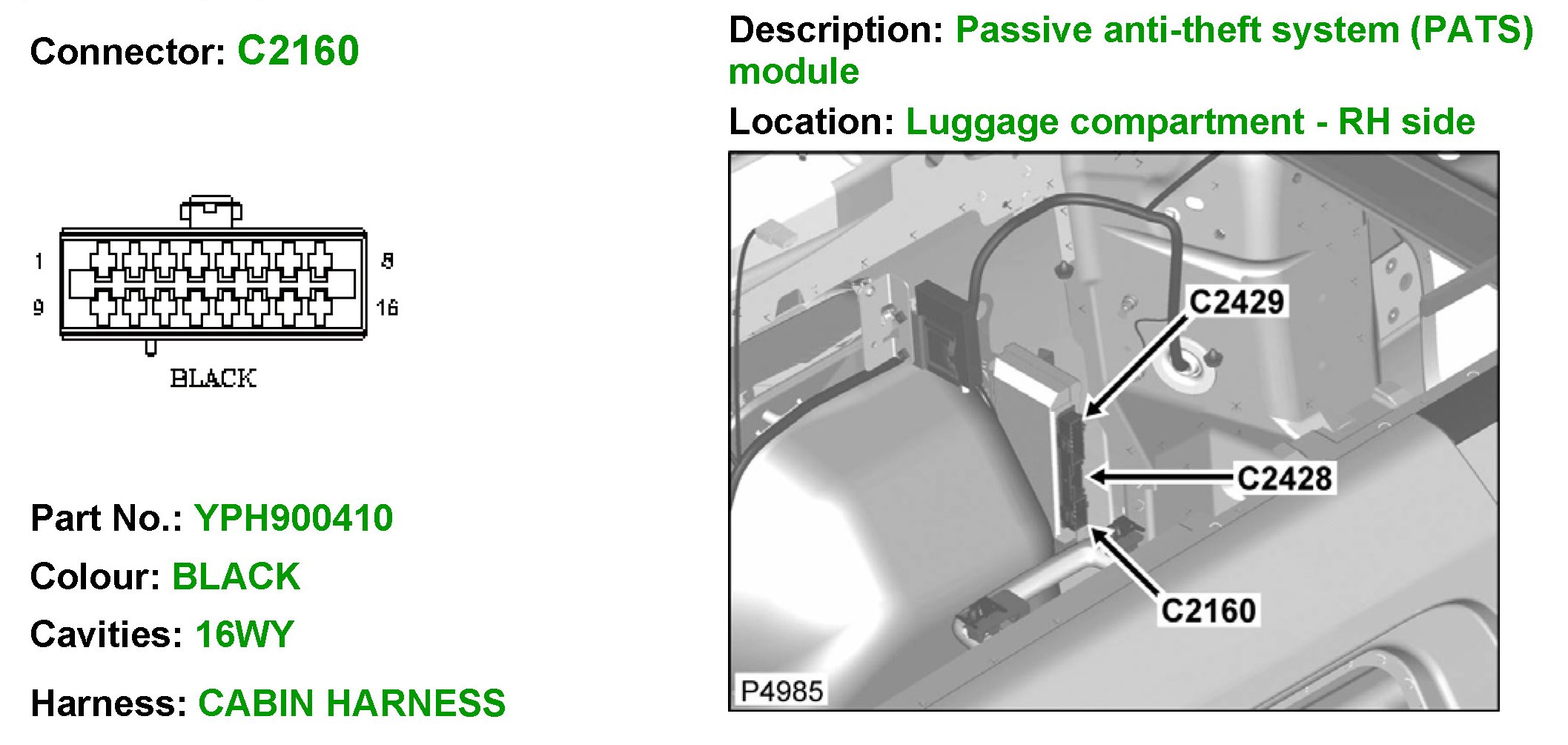

C2160 (Part 1):
