Land Rover
>>
2007
>>
LR3 (LA) V6-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Motor
>>
System Diagram
>>
Motor-Window-Rear-RH
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

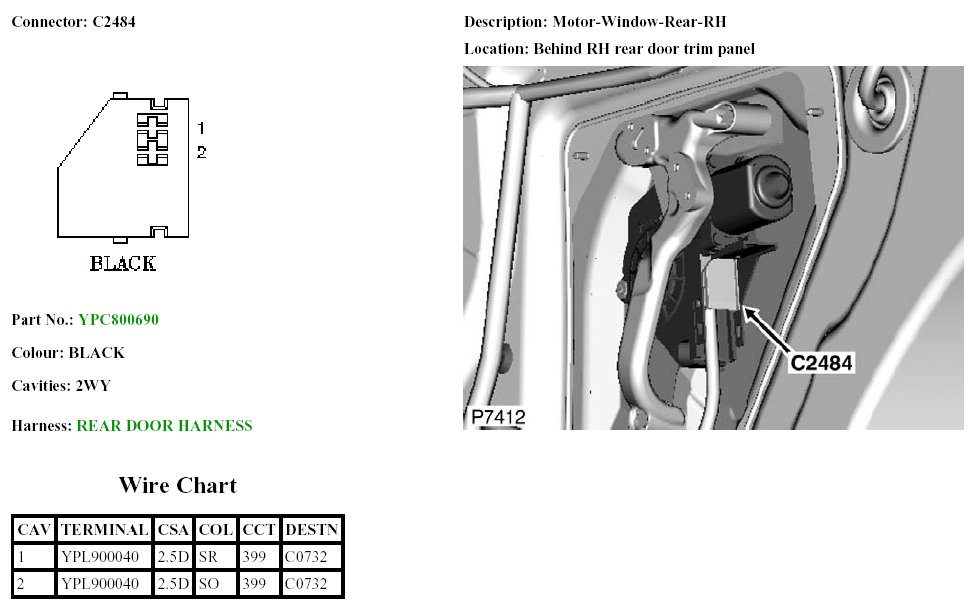

Motor-Window-Rear-RH
Motor-Window-Rear-RH
C2484:
