Ride Height Sensor, Suspension Control
>>
Sensor-Height-Rear-LH
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

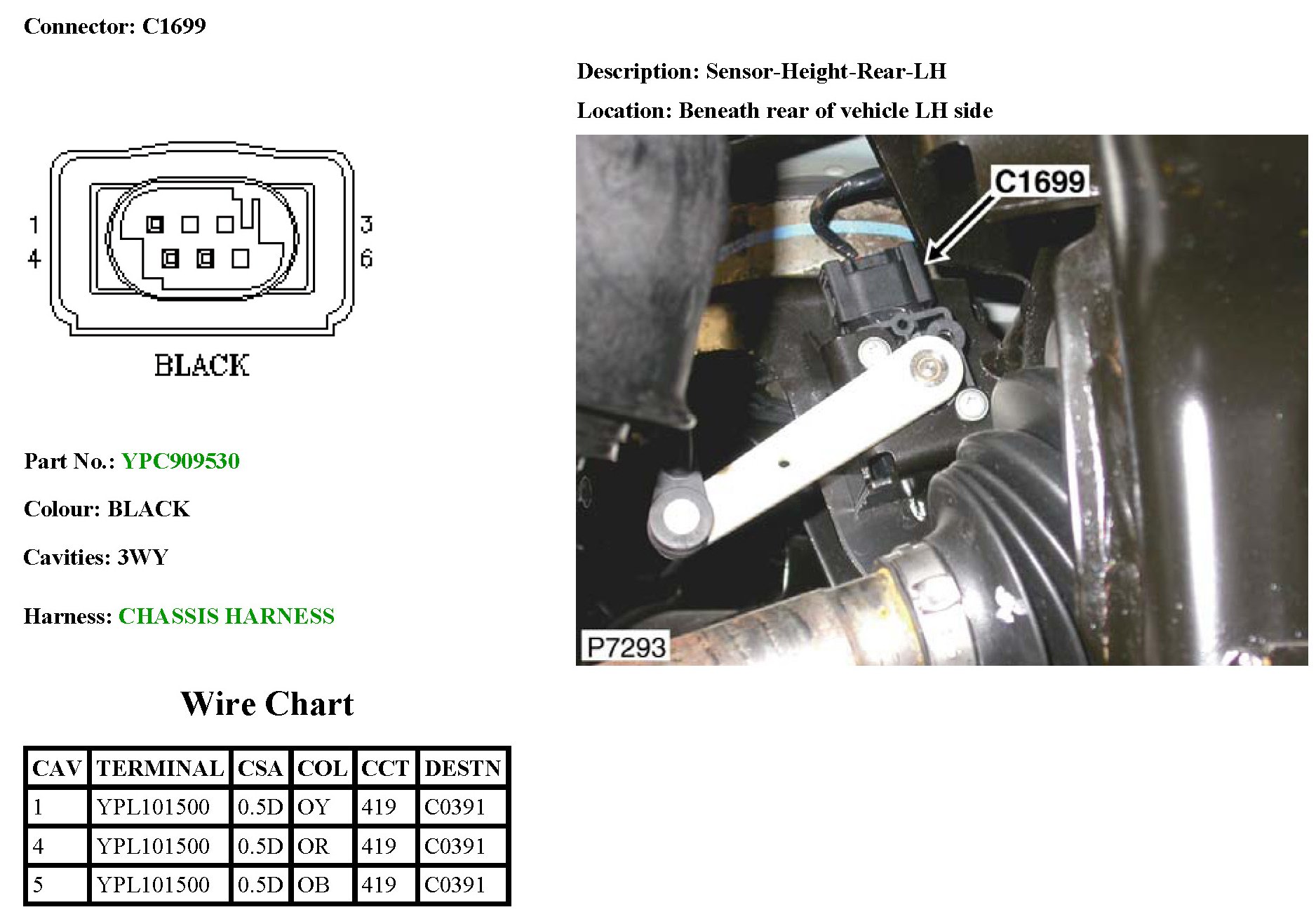

Sensor-Height-Rear-LH
C1699:
