Dynamic Response Module
Dynamic Response Module

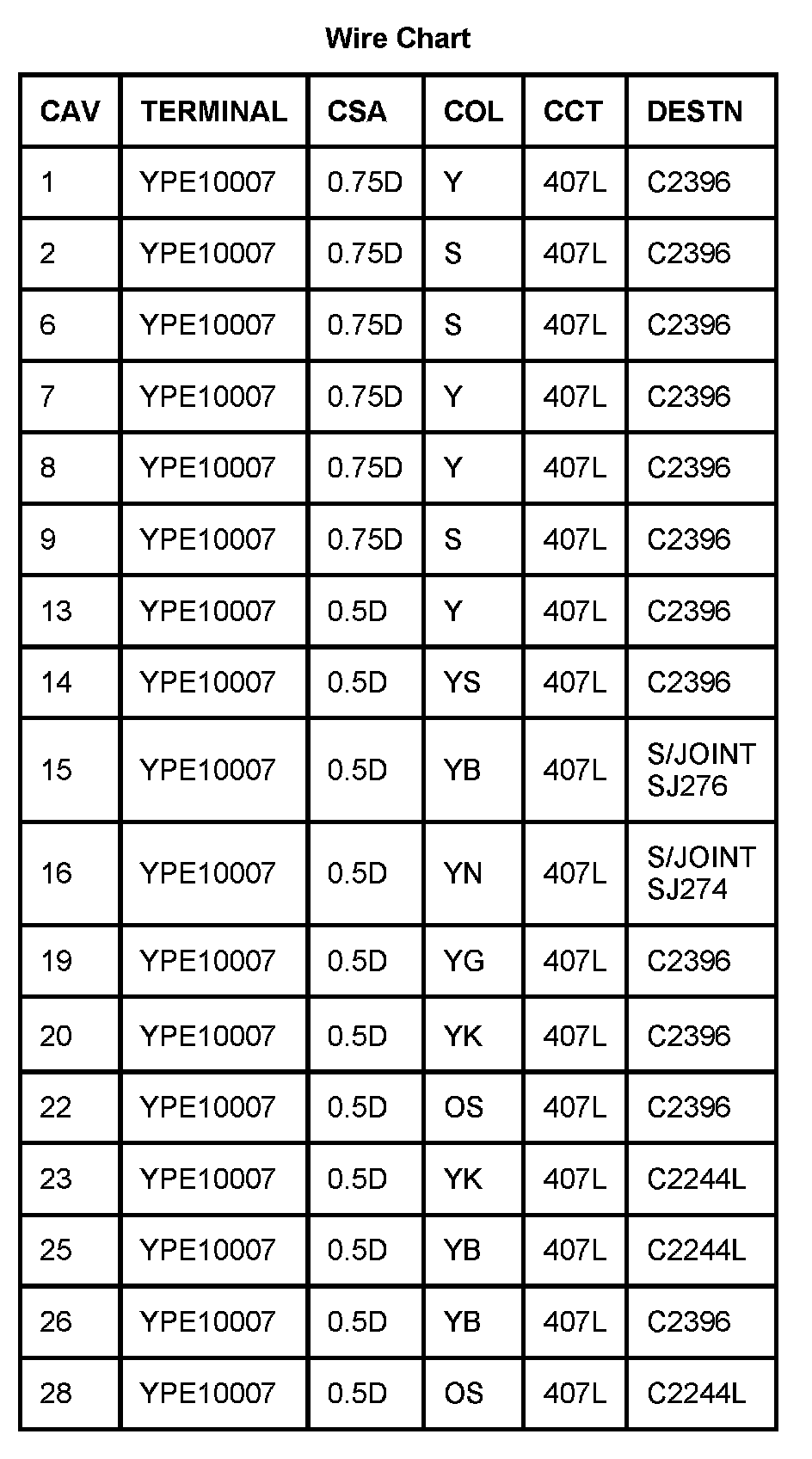

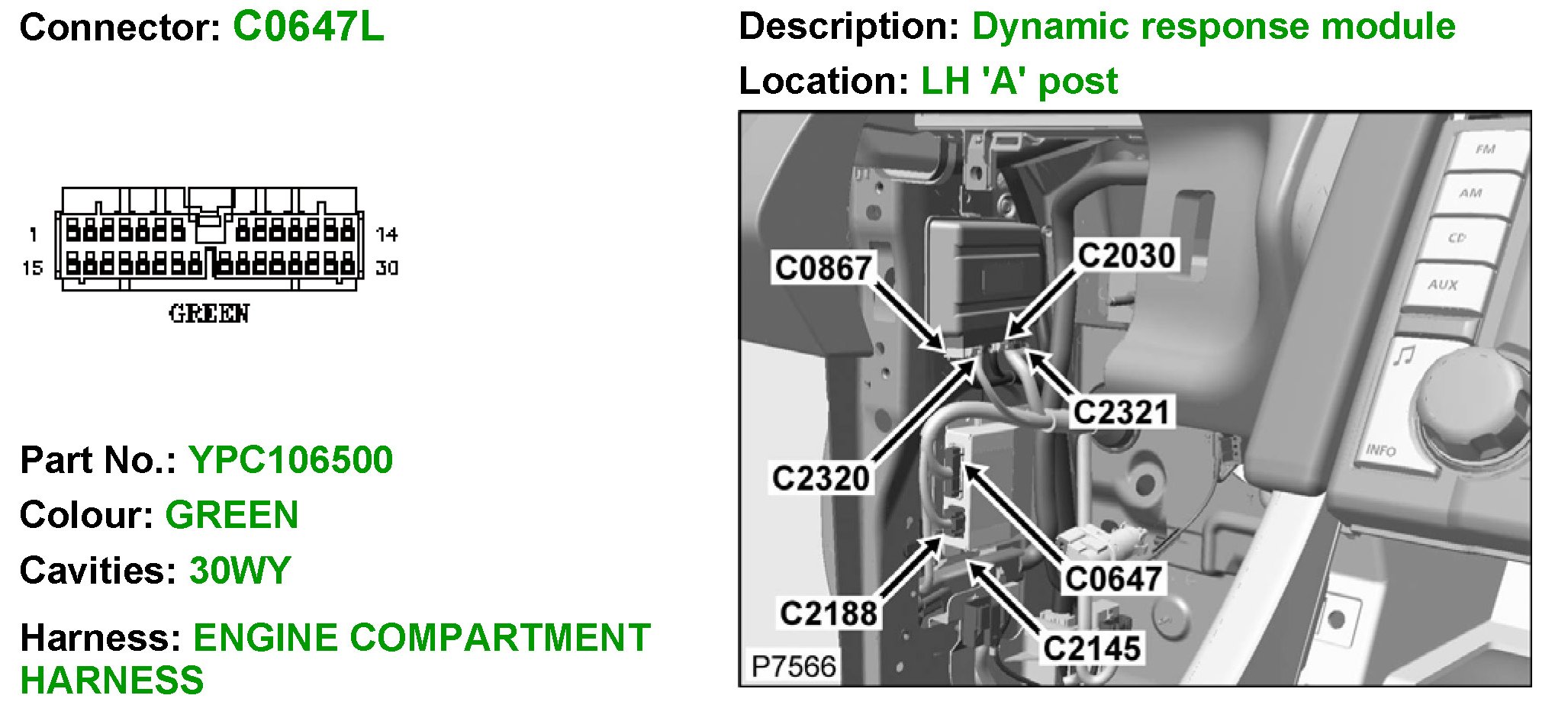

C0647L (Part 1):
C0647L (Part 2):

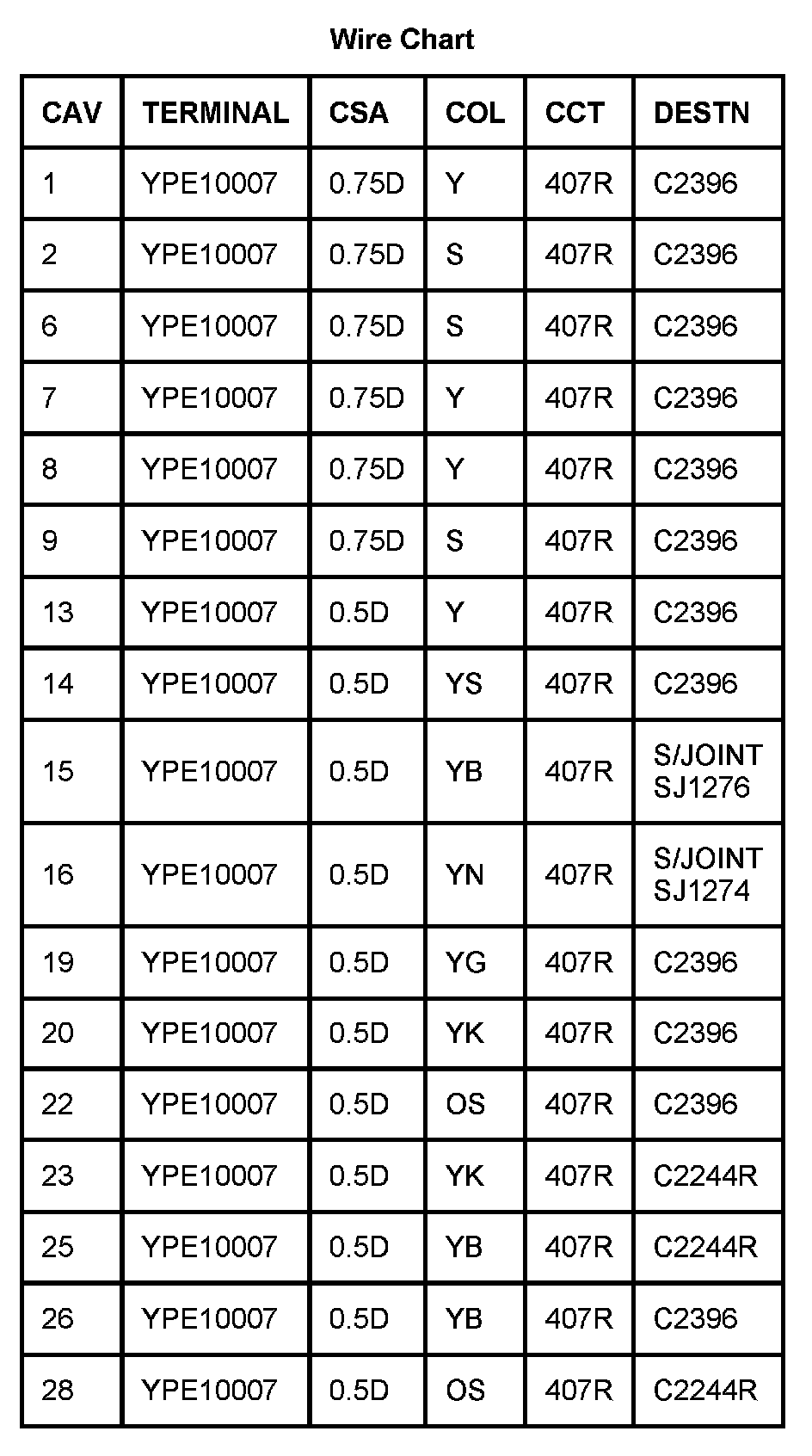

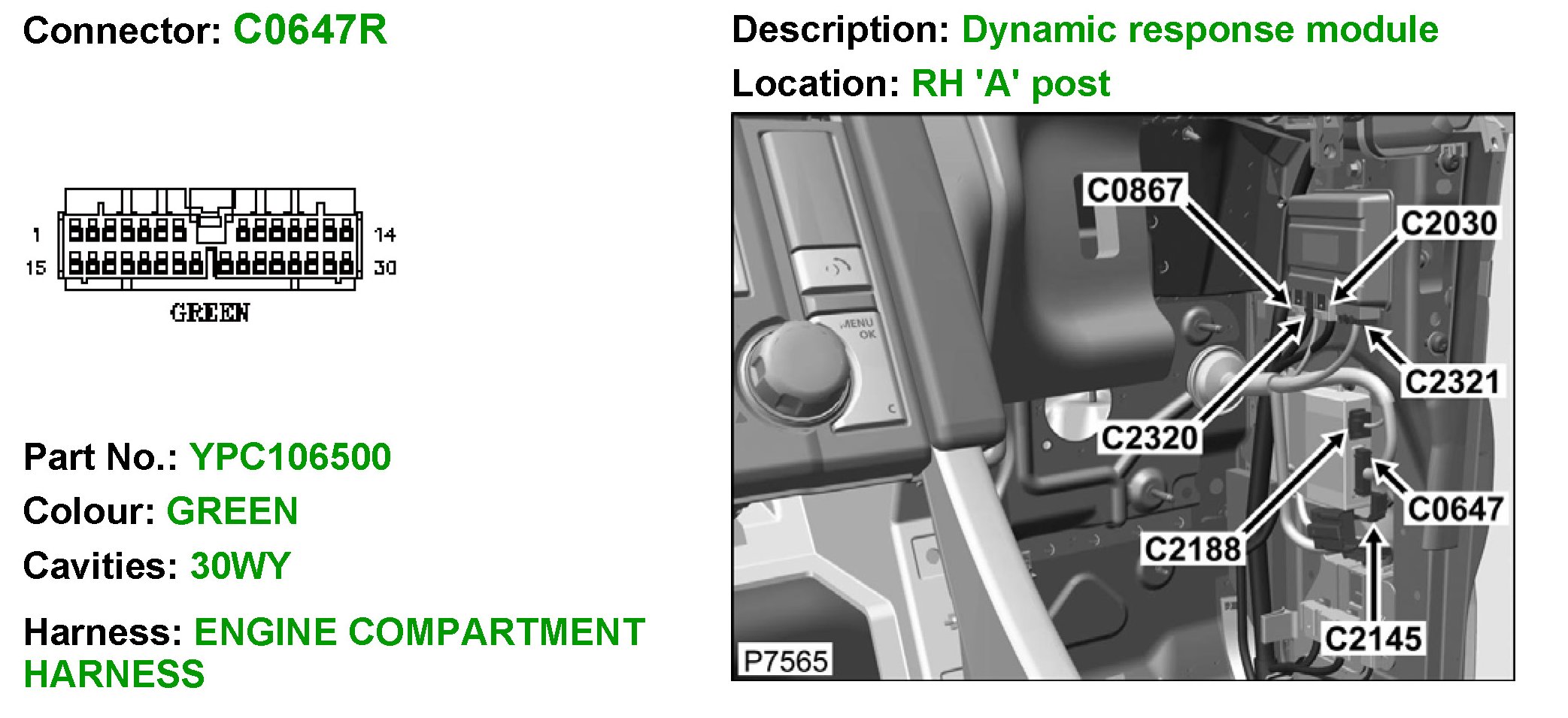

C0647R (Part 1):
C0647R (Part 2):
