Home
>>
Land Rover
>>
2007
>>
LR3 (LA) V6-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wheel Speed Sensor
>>
Wheel Speed Sensor-Rear-LH
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

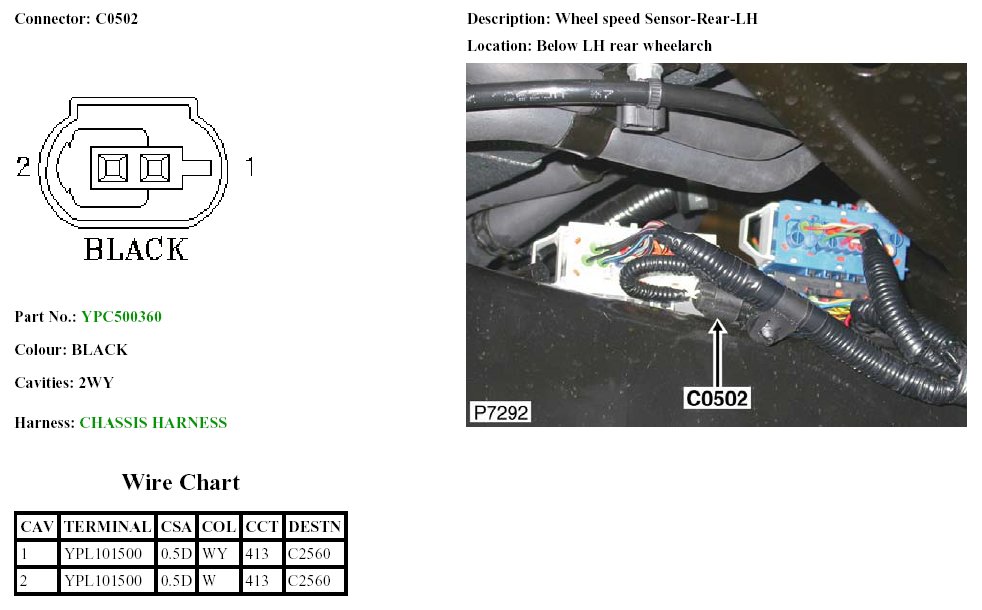

Wheel Speed Sensor-Rear-LH
Wheel Speed Sensor-Rear-LH
C0502:
