Component Locations

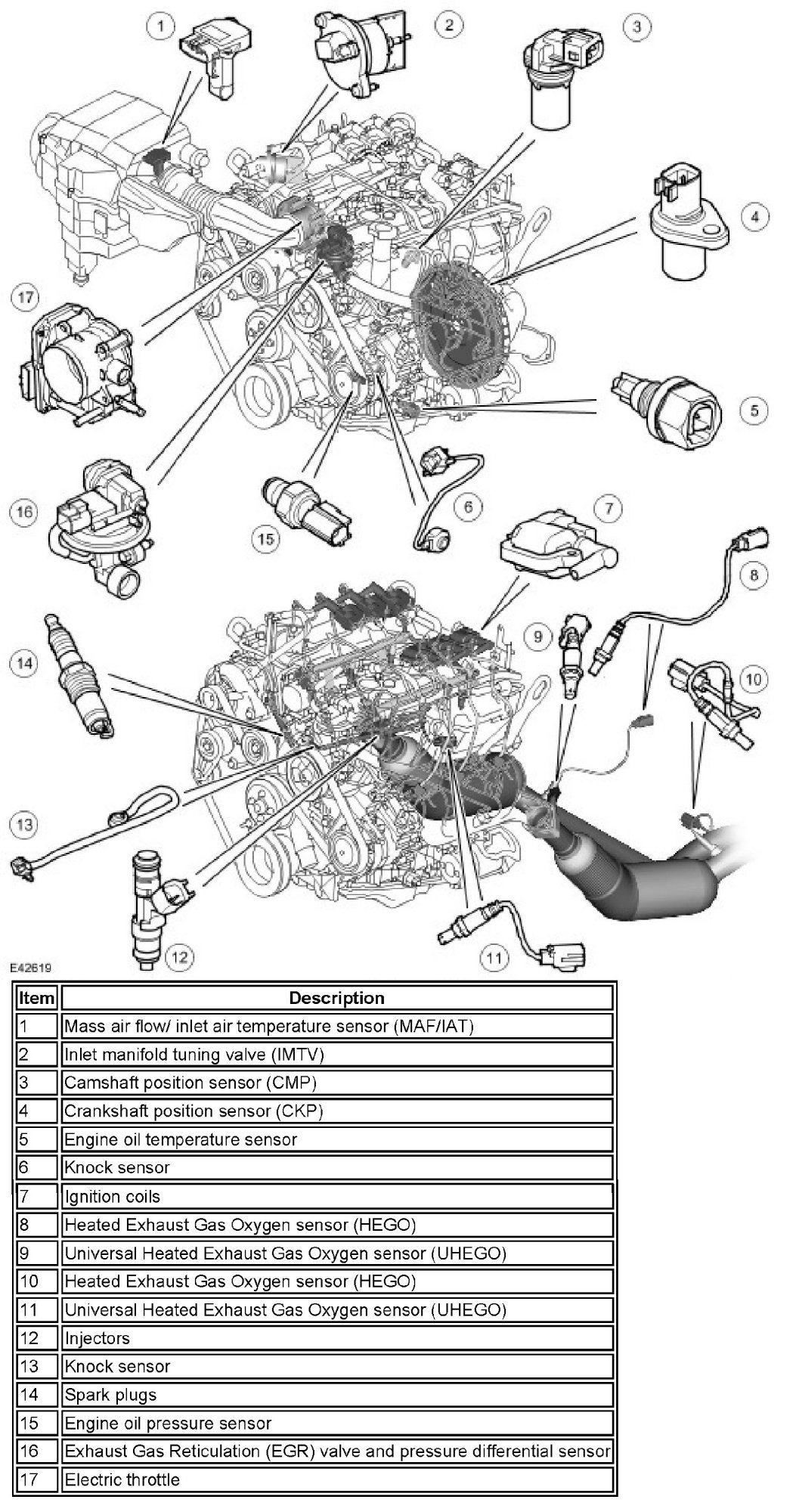

[Denso] Electronic Engine Controls Component Location Sheet 1 Of 2:

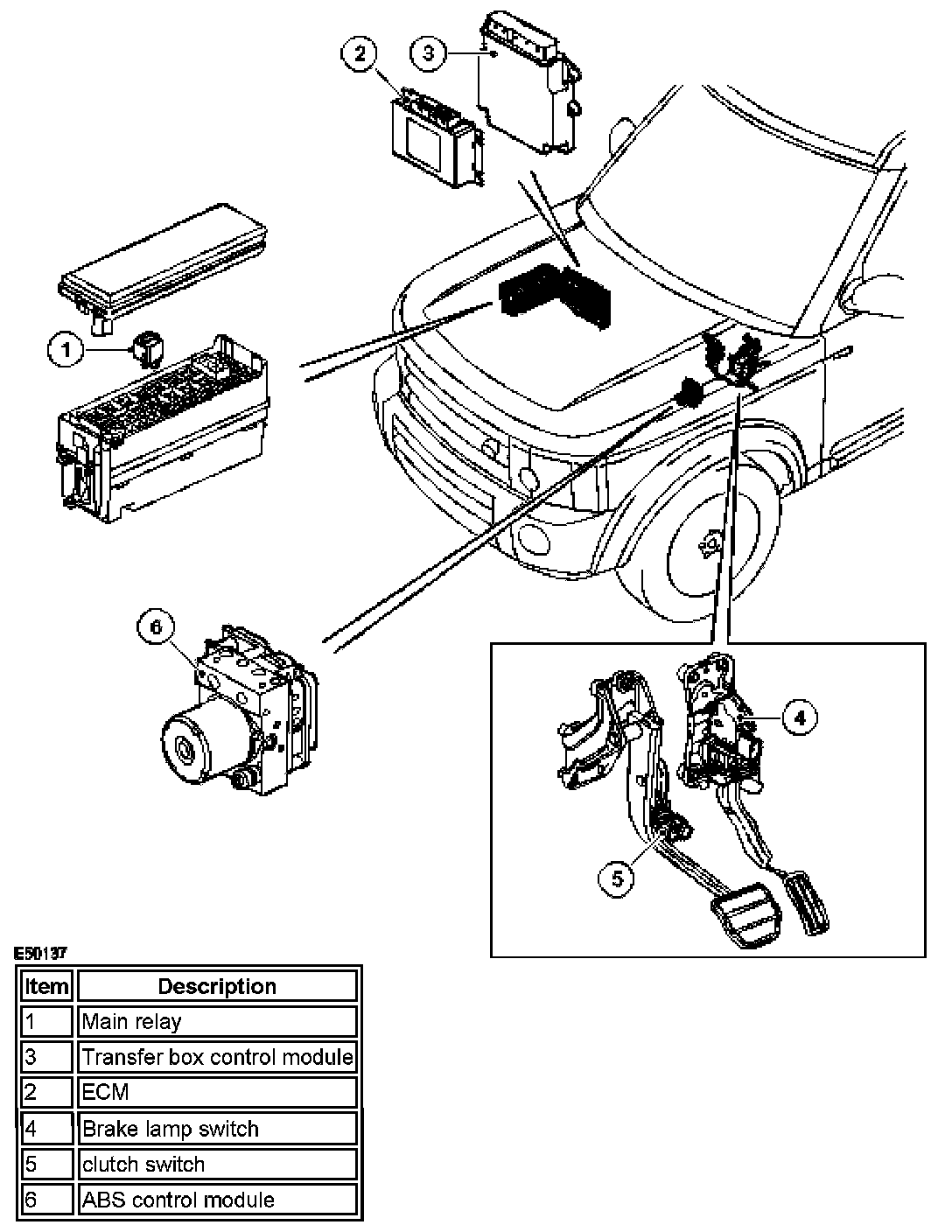

[Denso] Electronic Engine Controls Component Location Sheet 2 of 2:

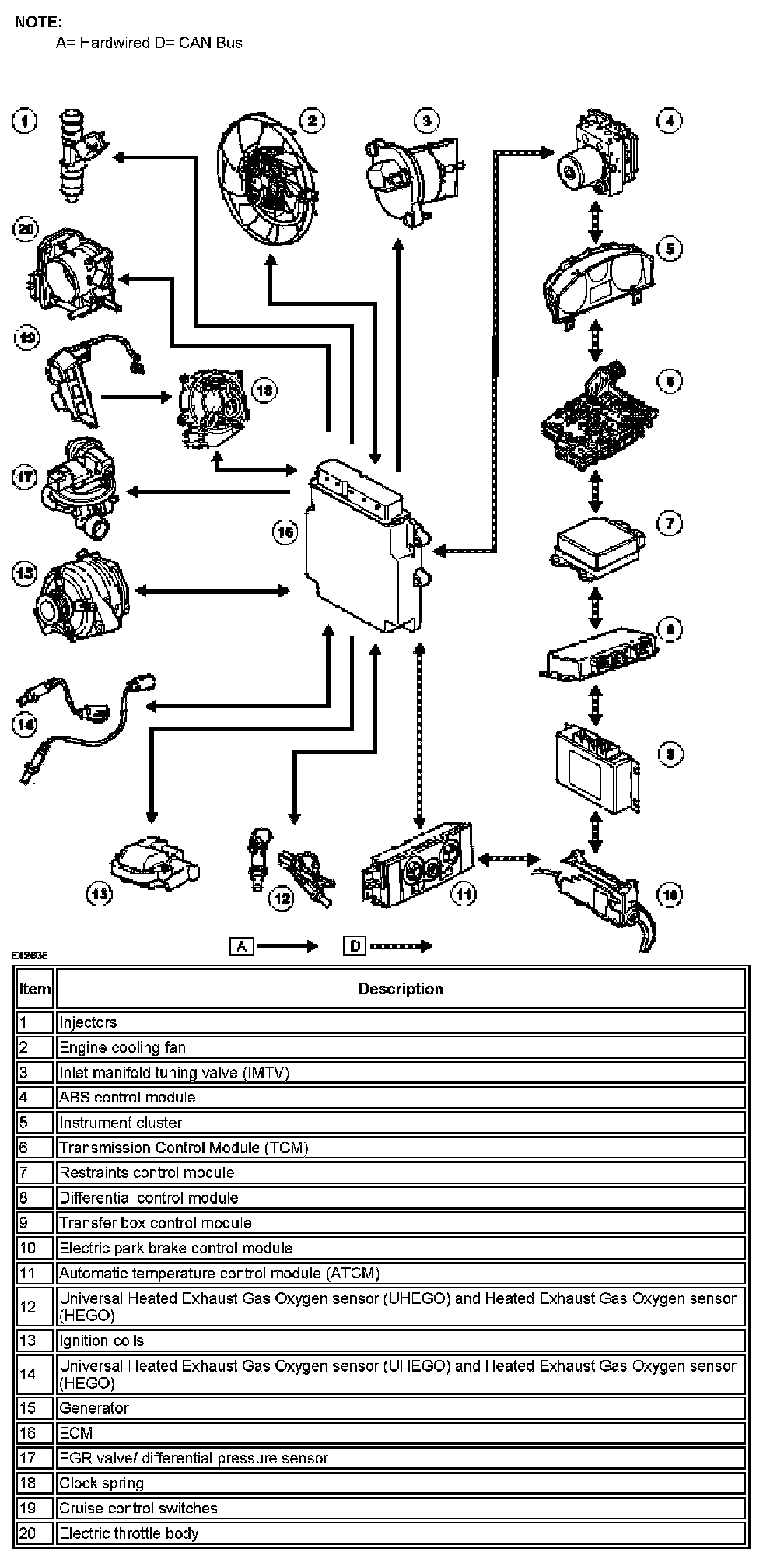

[Denso] EMS Control Diagram Sheet 1 of 2:

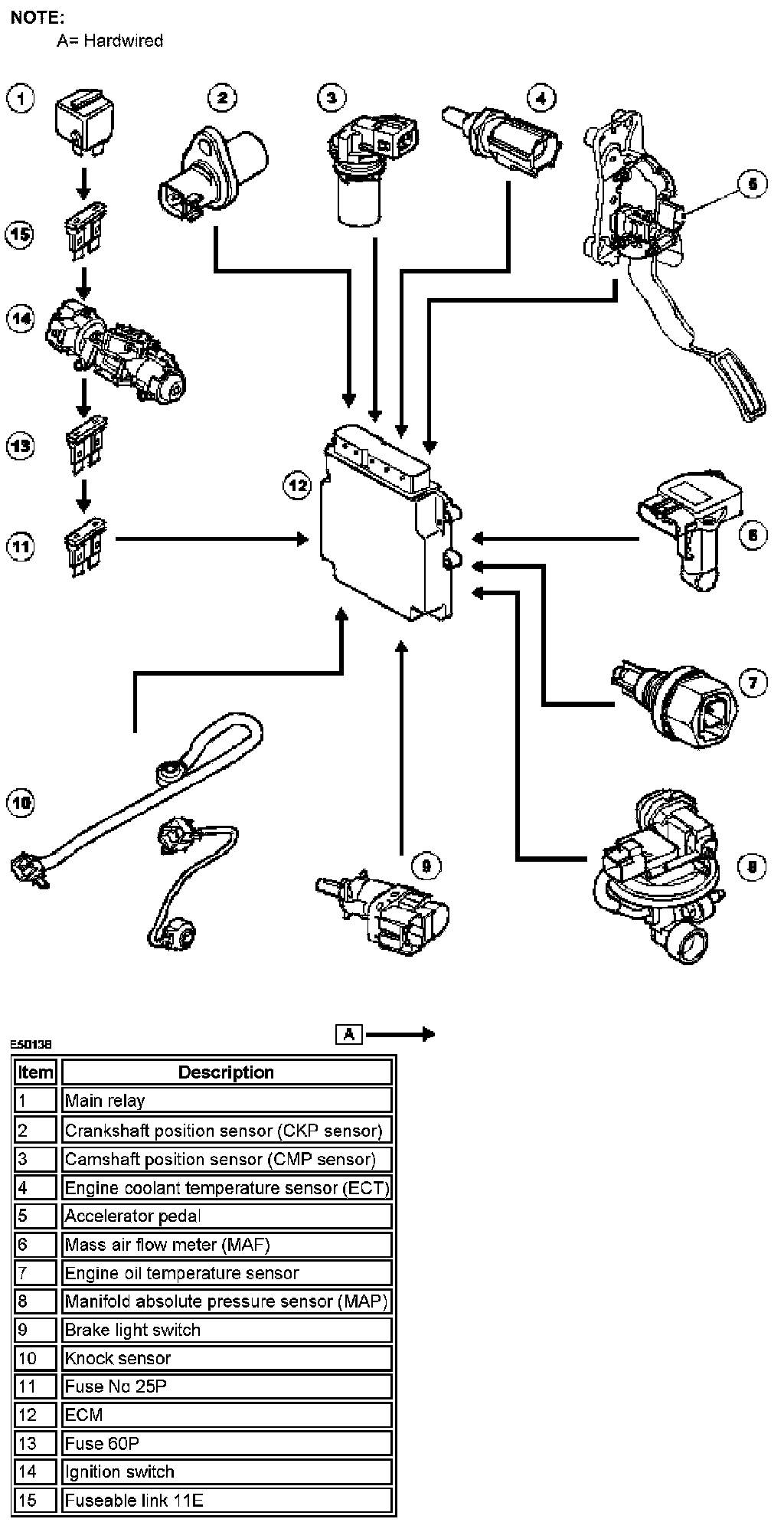

[Denso] EMS Control Diagram Sheet 1 of 2:
