Component Locations

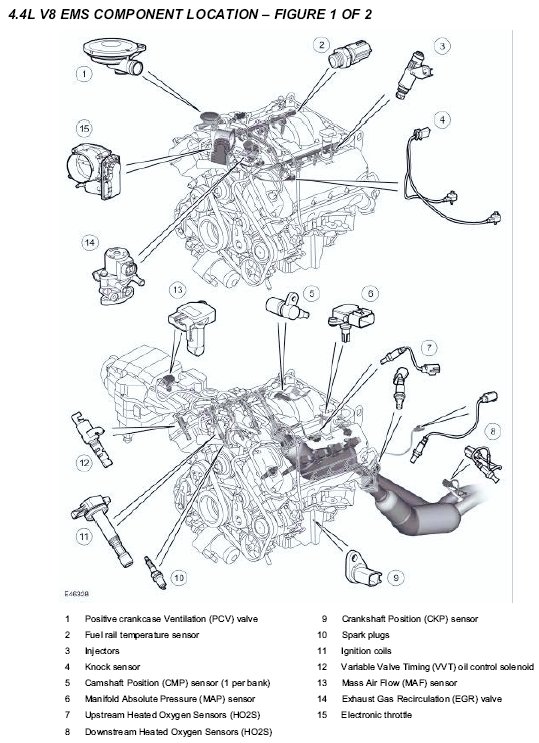

4.4L V8 EMS Component Location (1 Of 2) [Denso]:

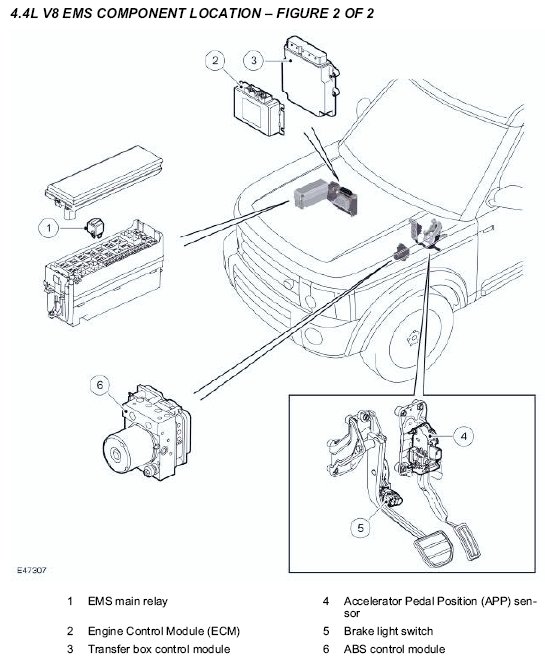

4.4L V8 EMS Component Location (2 Of 2) [Denso]:
