Video System Module

Video System Module

Removal

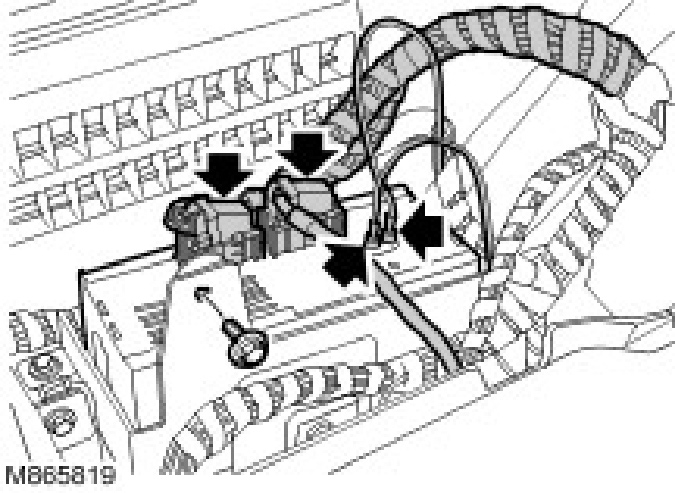

1. Remove the LH loadspace trim panel.
2. Disconnect the 2 electrical connectors from the video system module.





3. Identify and disconnect the 2 coaxial cables.
4. Remove the video system module.
^ Remove the bolt.

Installation
1. Install the video system module.
^ Install the bolt and tighten to 10 Nm (7 ft. lbs.).
2. Connect the 2 coaxial cables.
3. Connect the 2 electrical connectors to the video system module
4. Install the LH loadspace trim panel.
