Range Rover (LM) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Air Bag Control Module

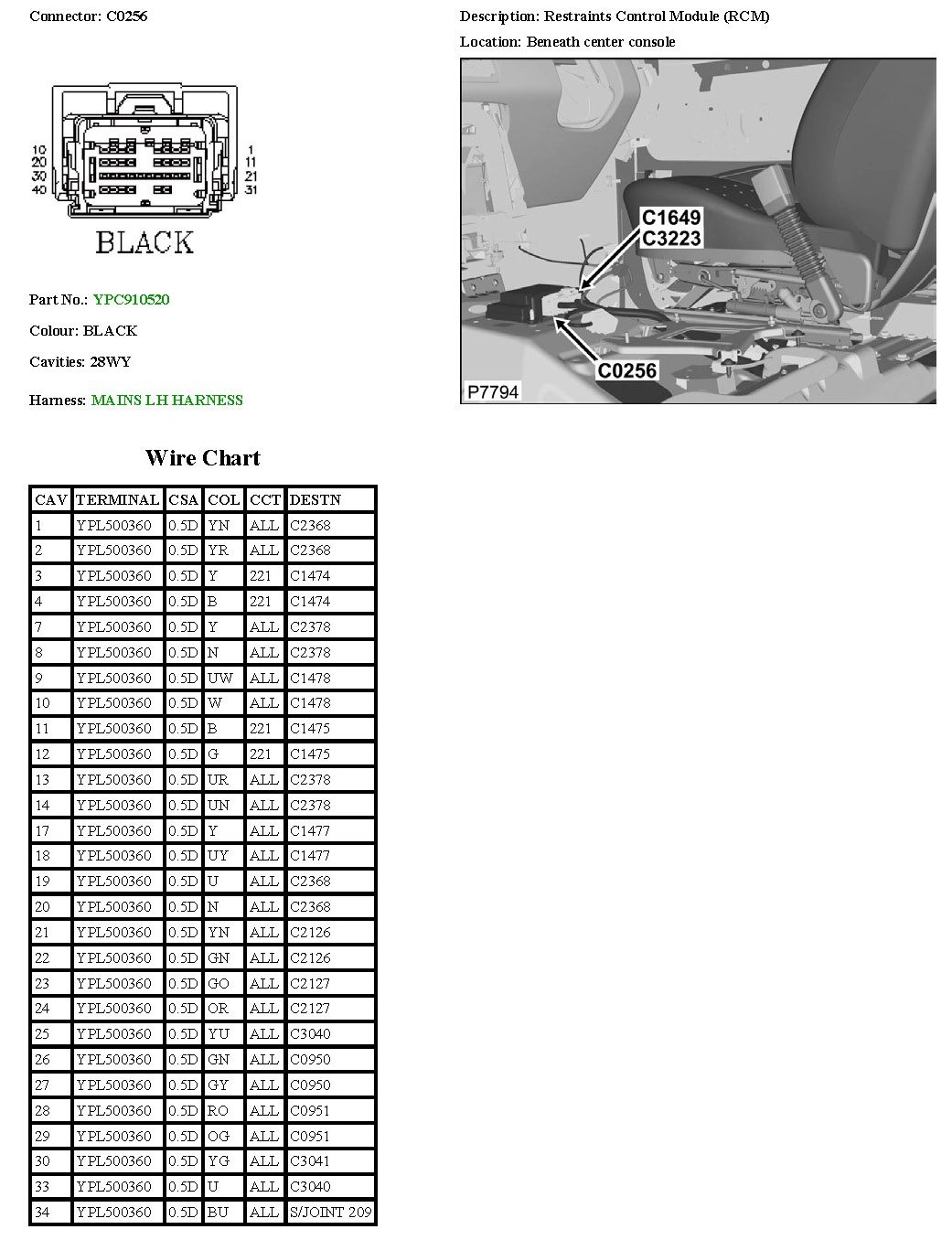

C0256:

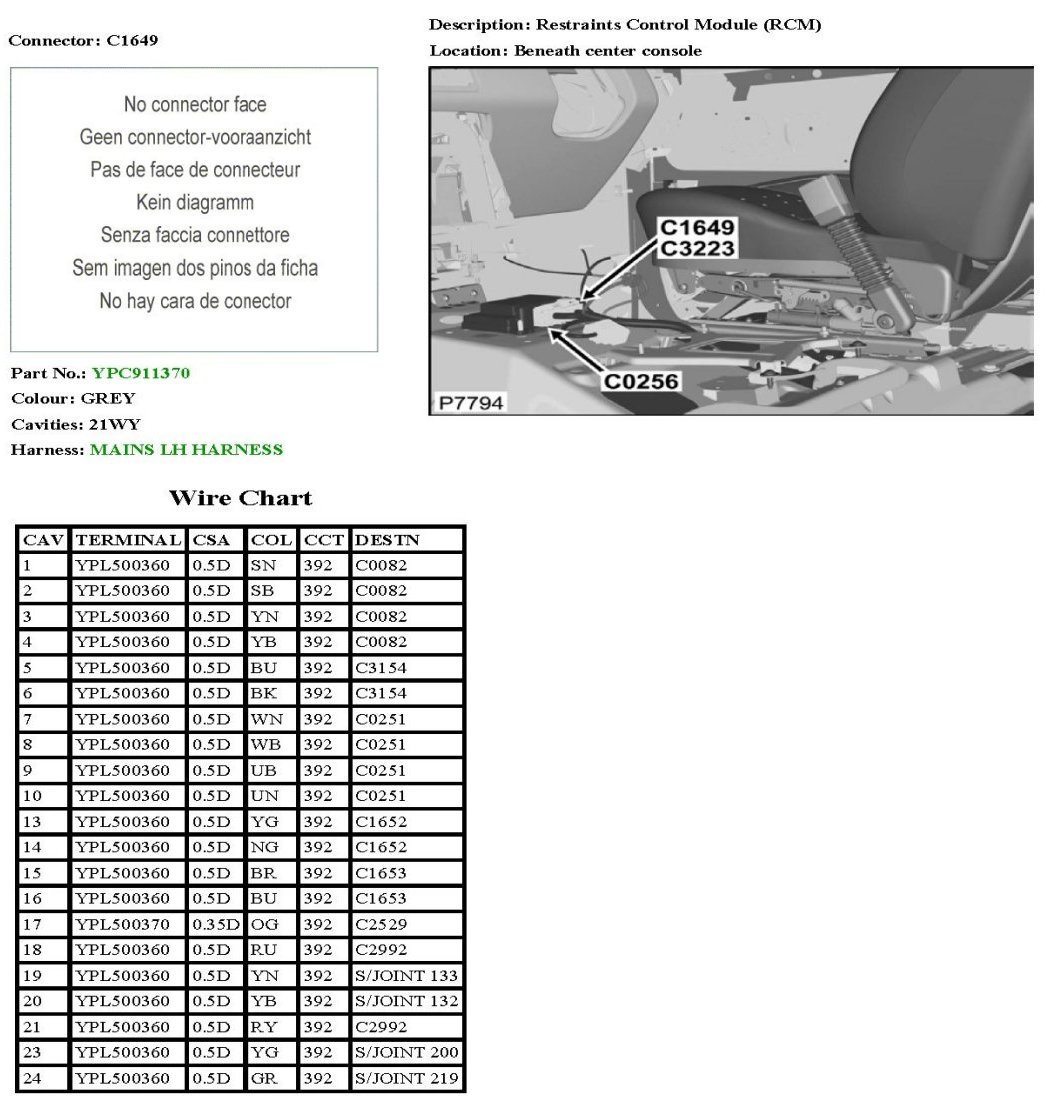

C1649:

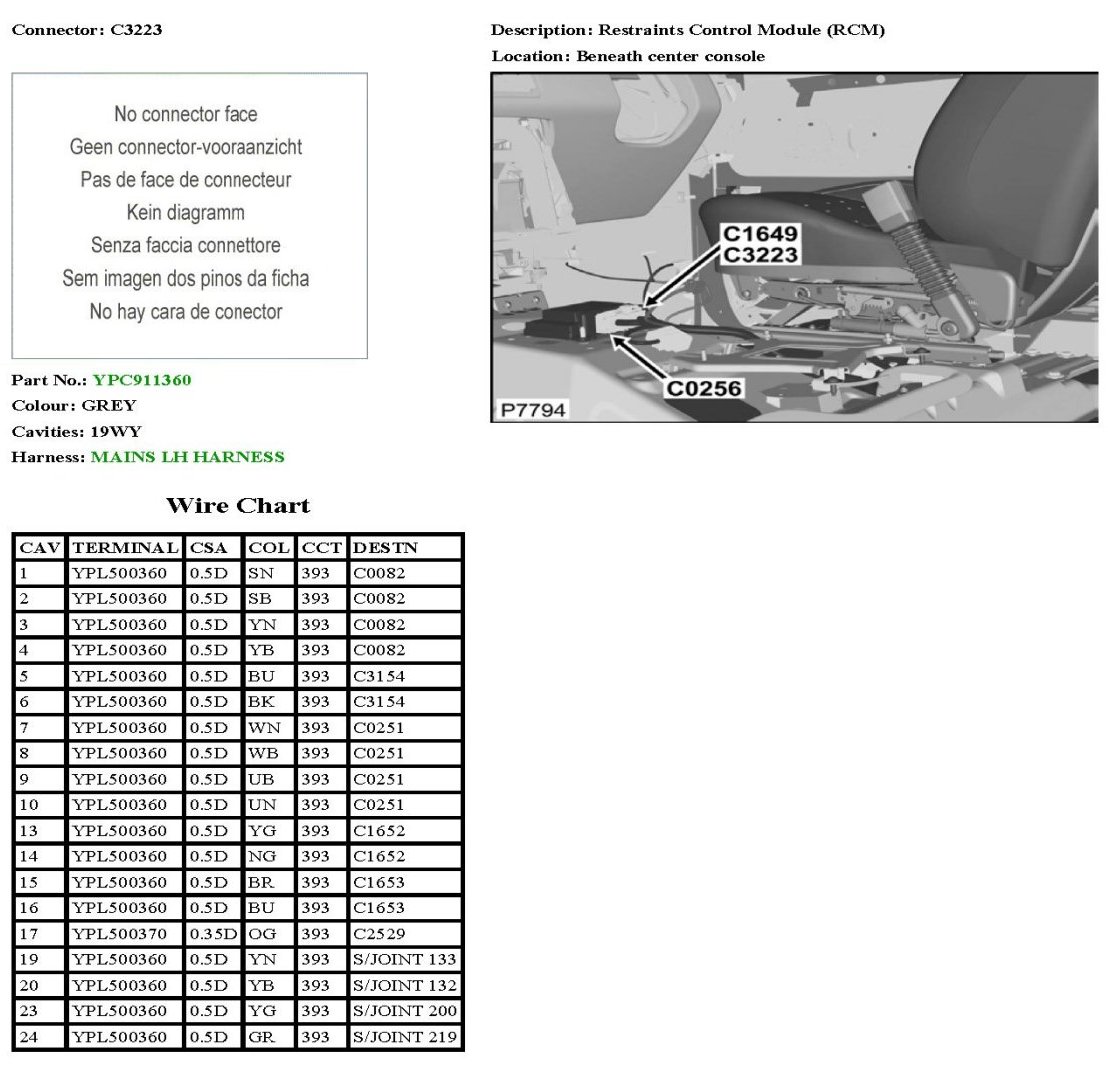

C3223:
