Control Module, Transfer Case

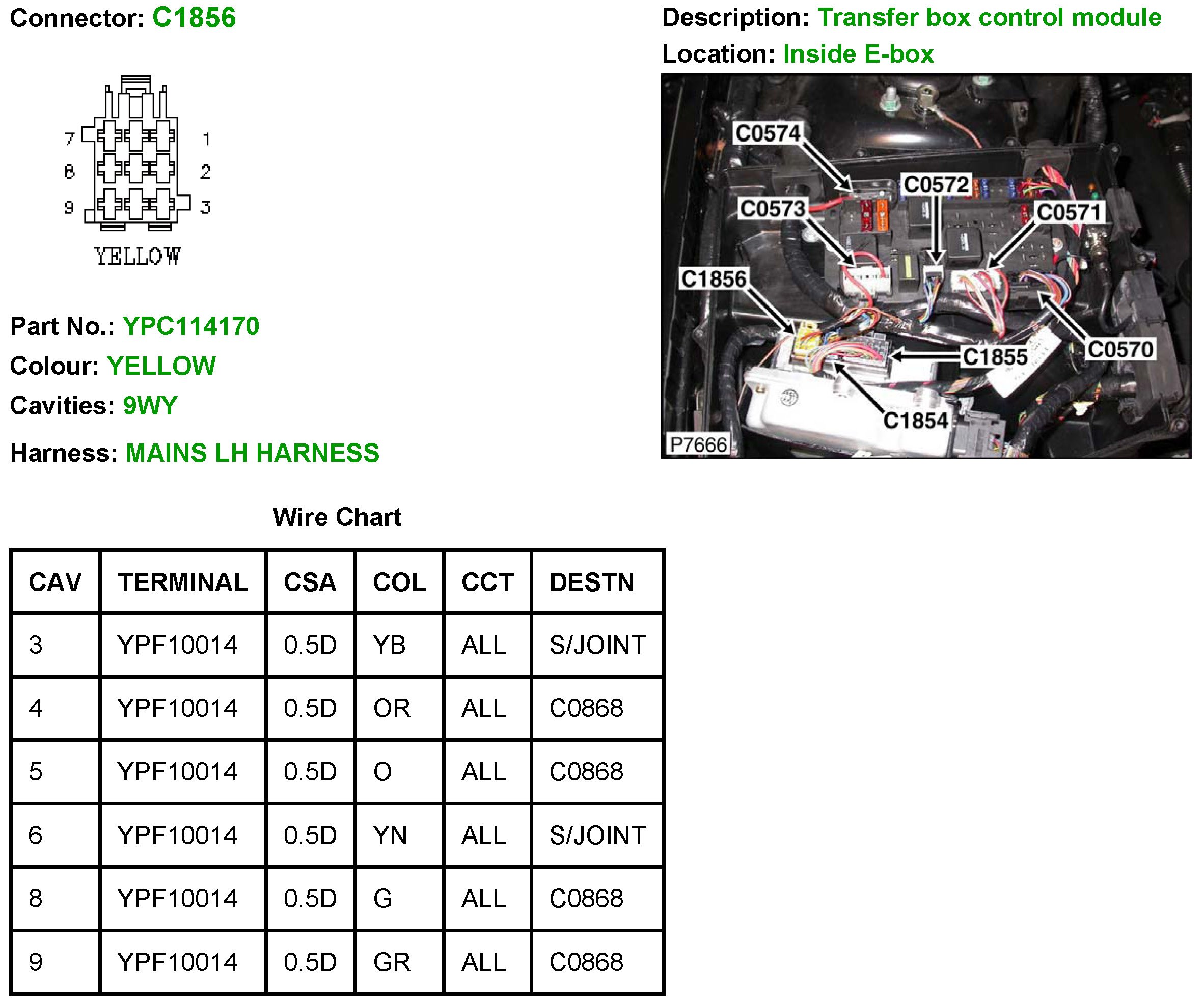

C1856:

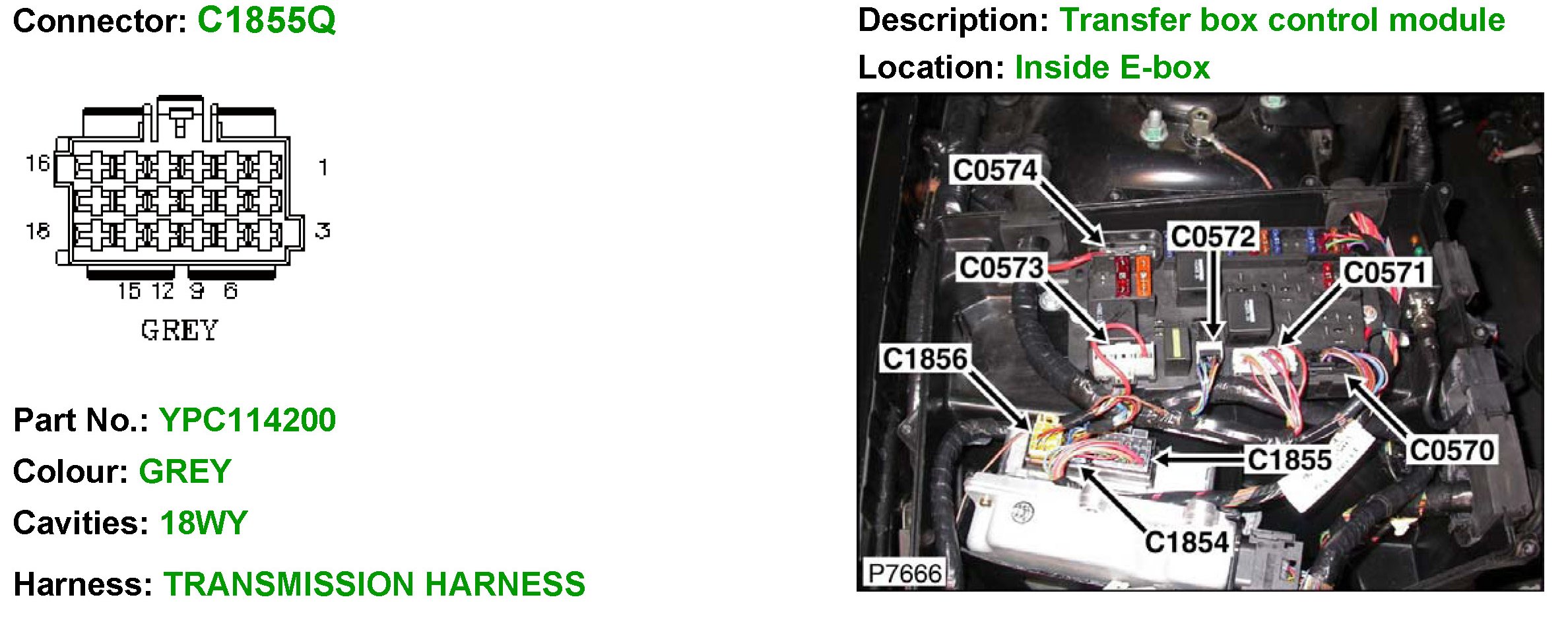

C1855Q (Part 1):
C1855Q (Part 2):
C1855 (Part 1):

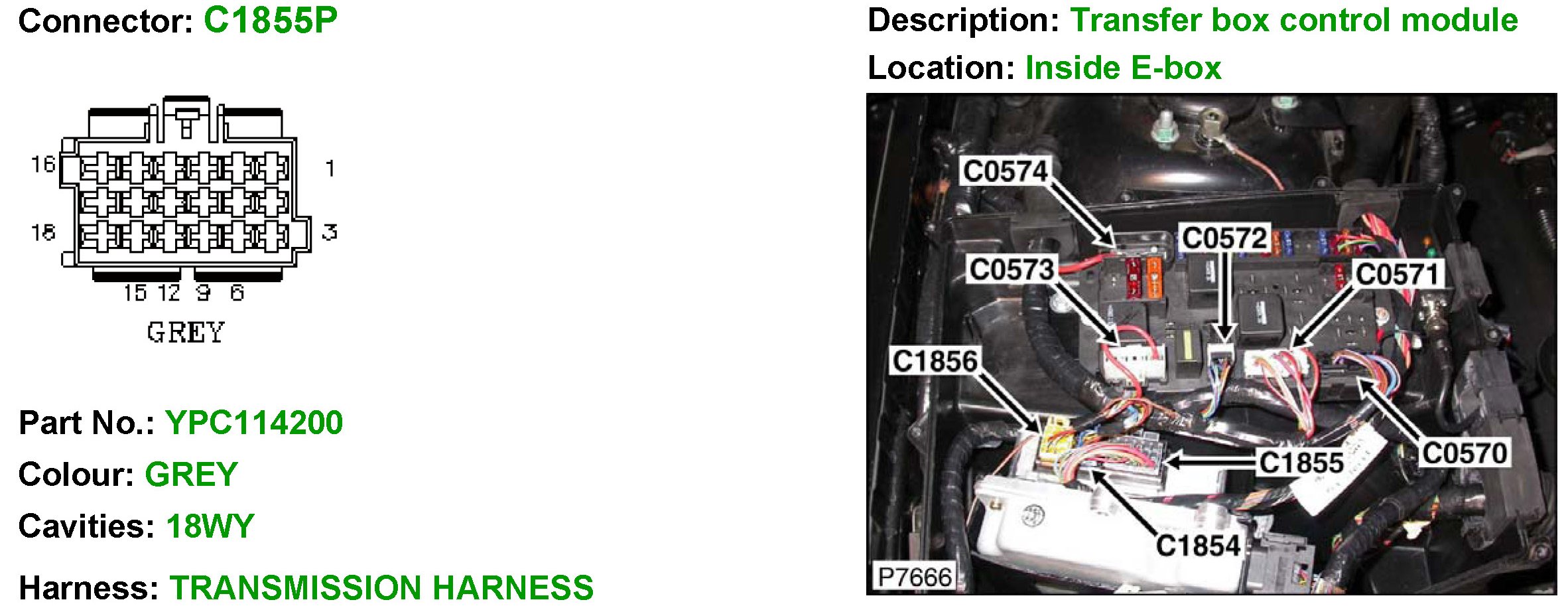

C1855P (Part 2):

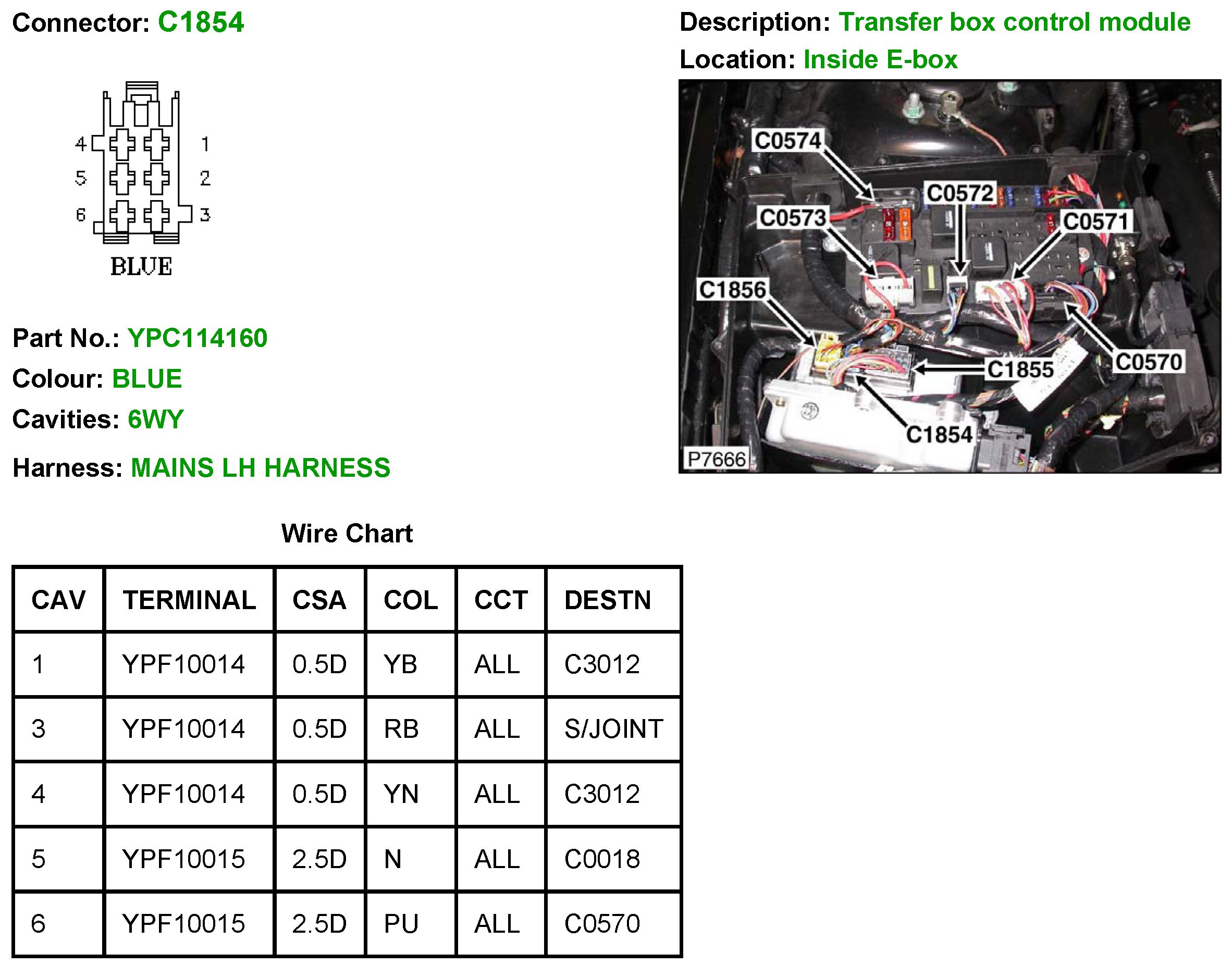

C1854:
