Module-Rear Seat-Entertainment

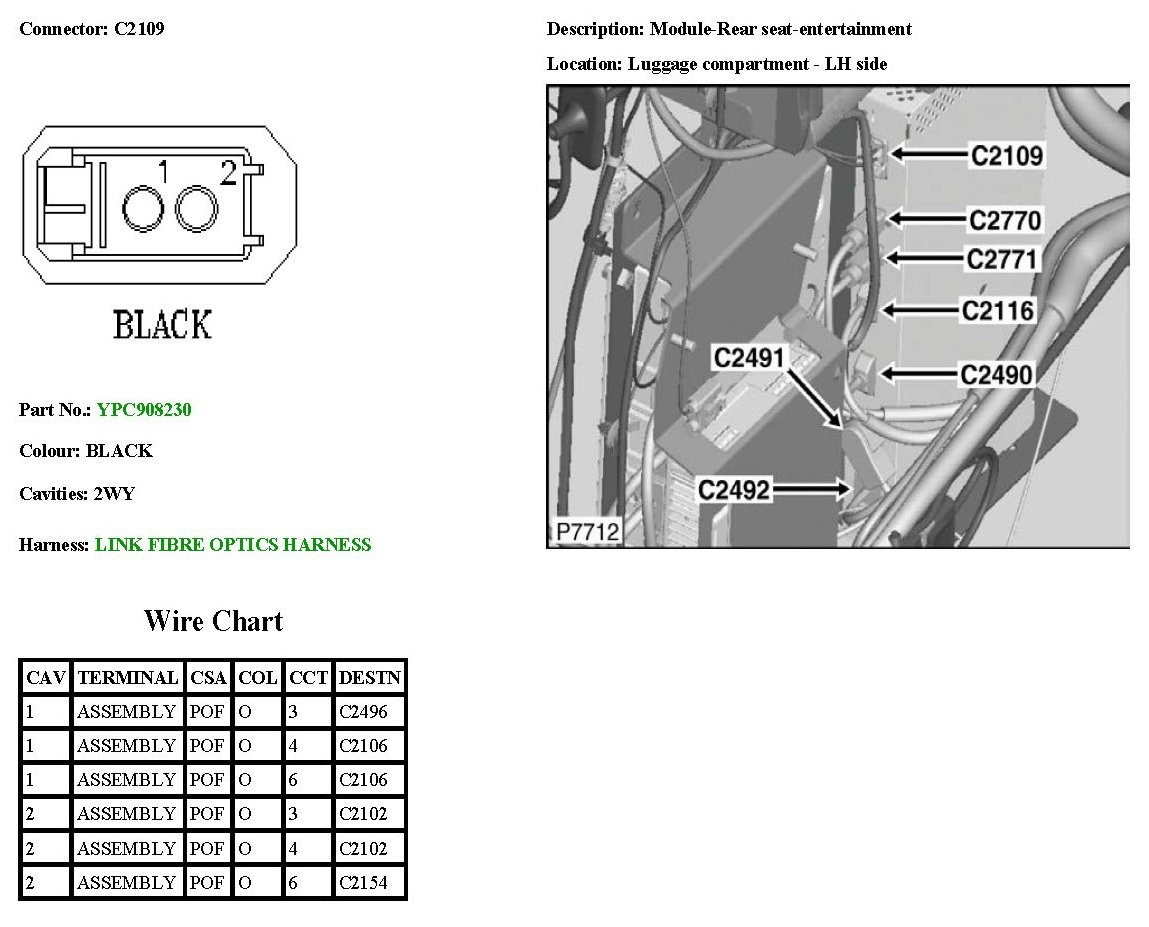

C2109:

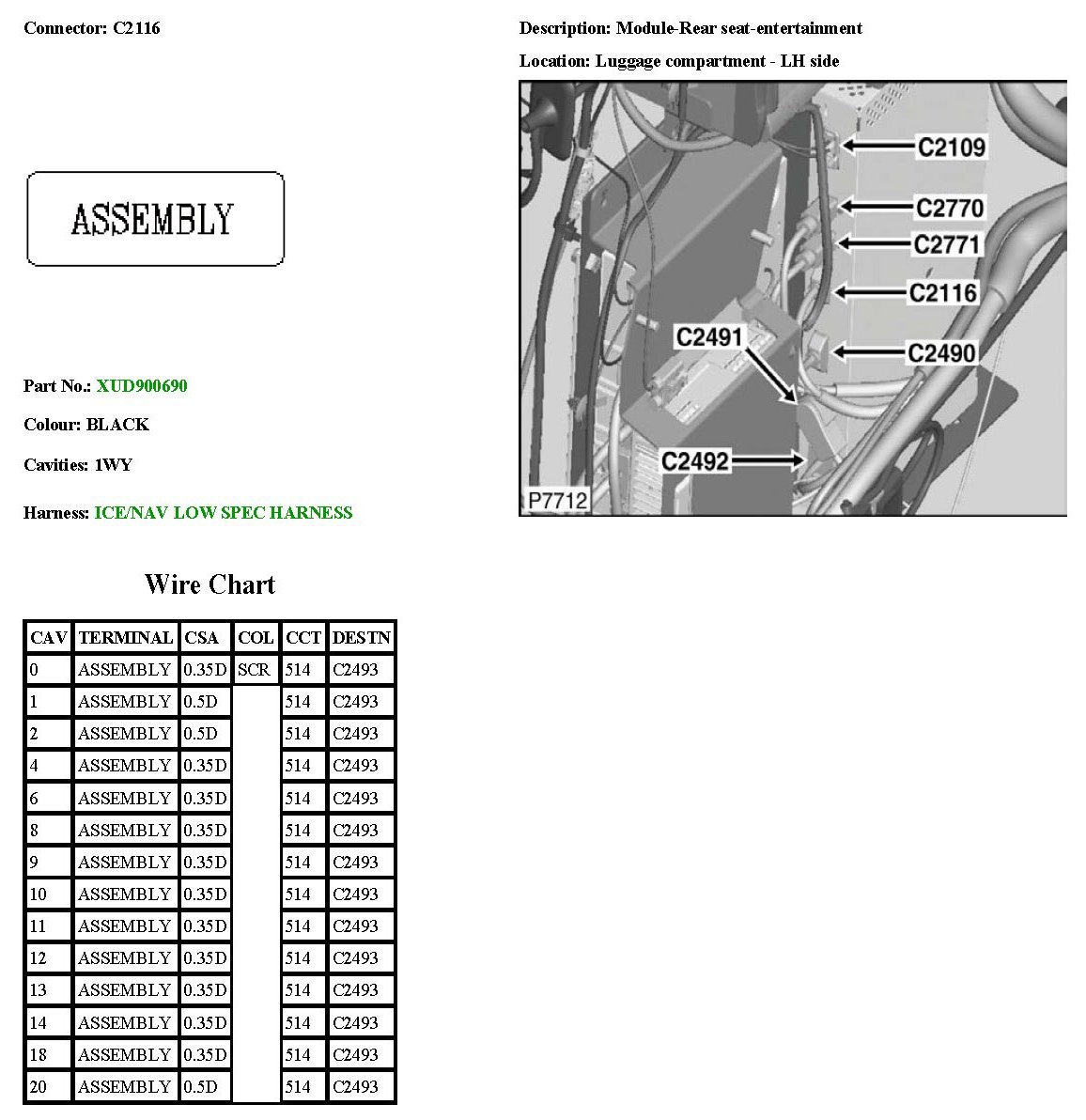

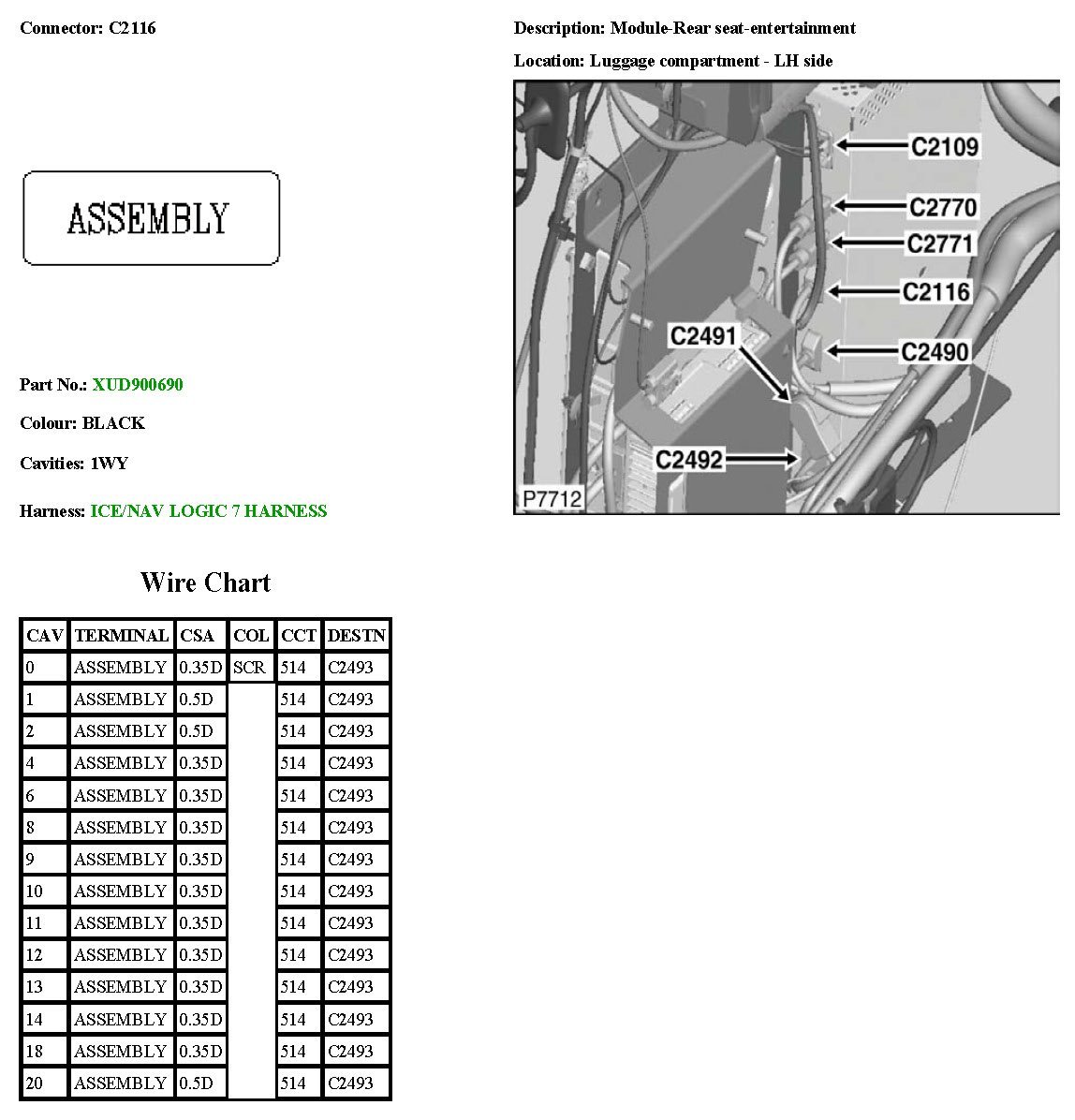

C2116:
C2116:

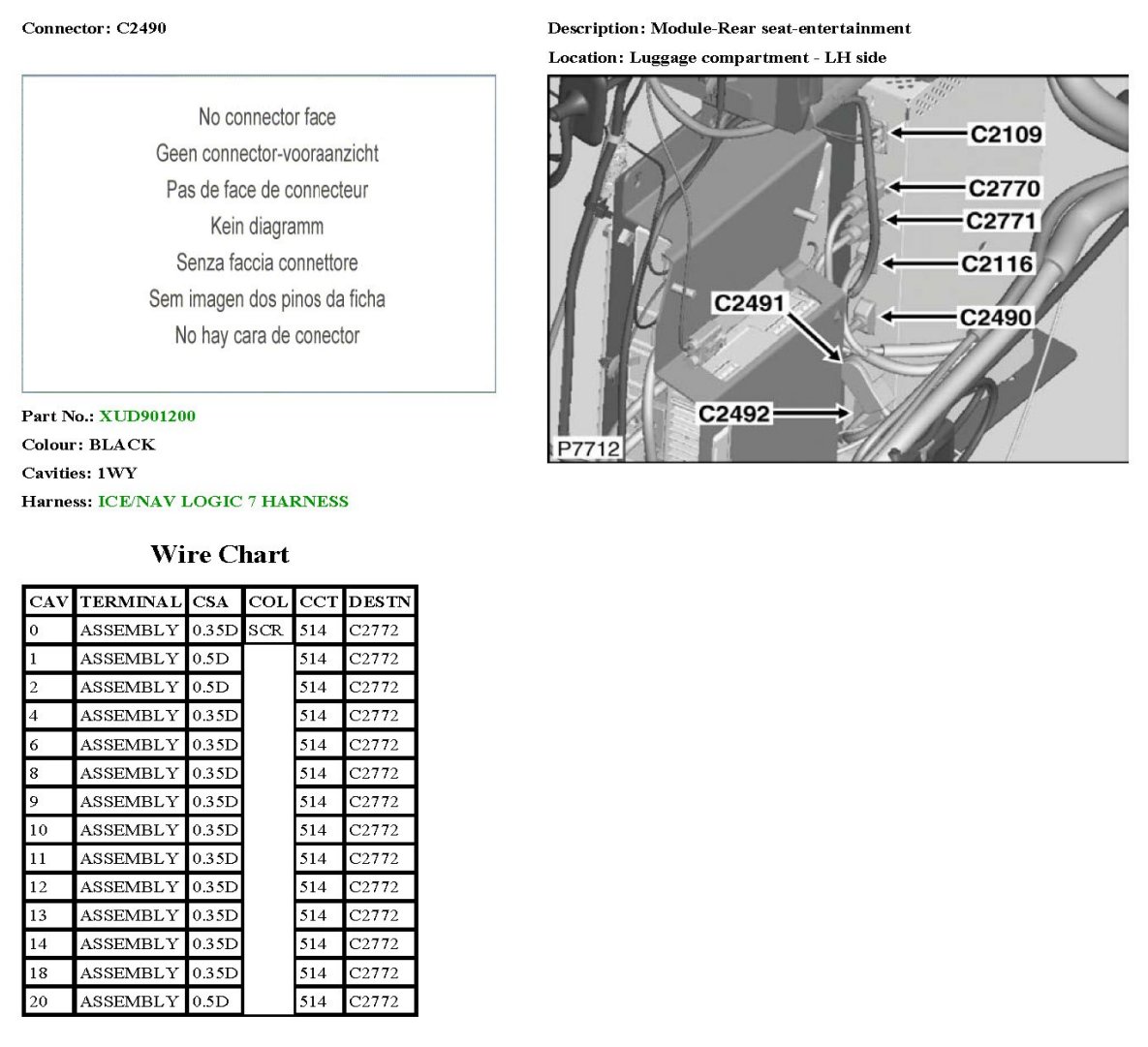

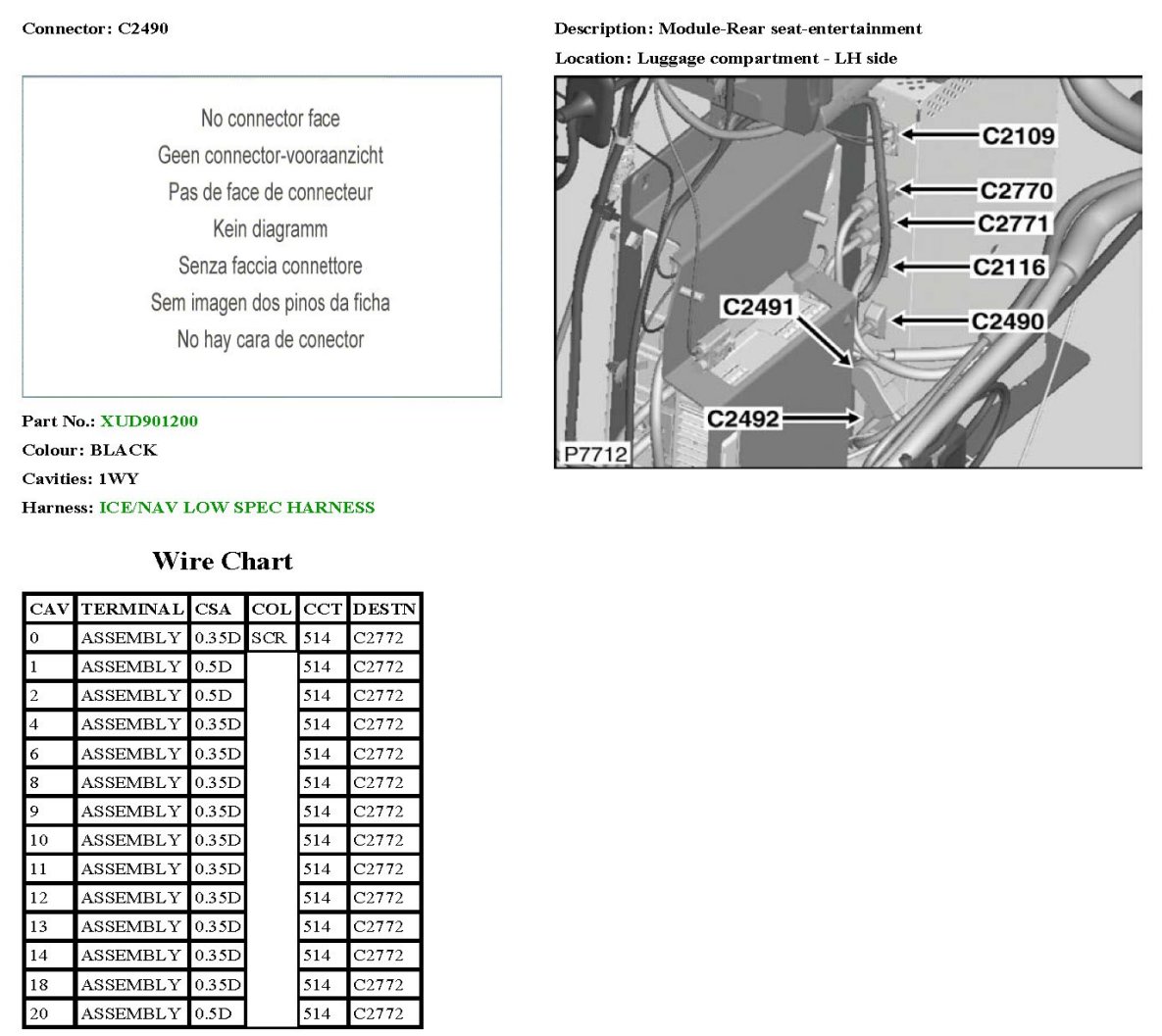

C2490:
C2490:

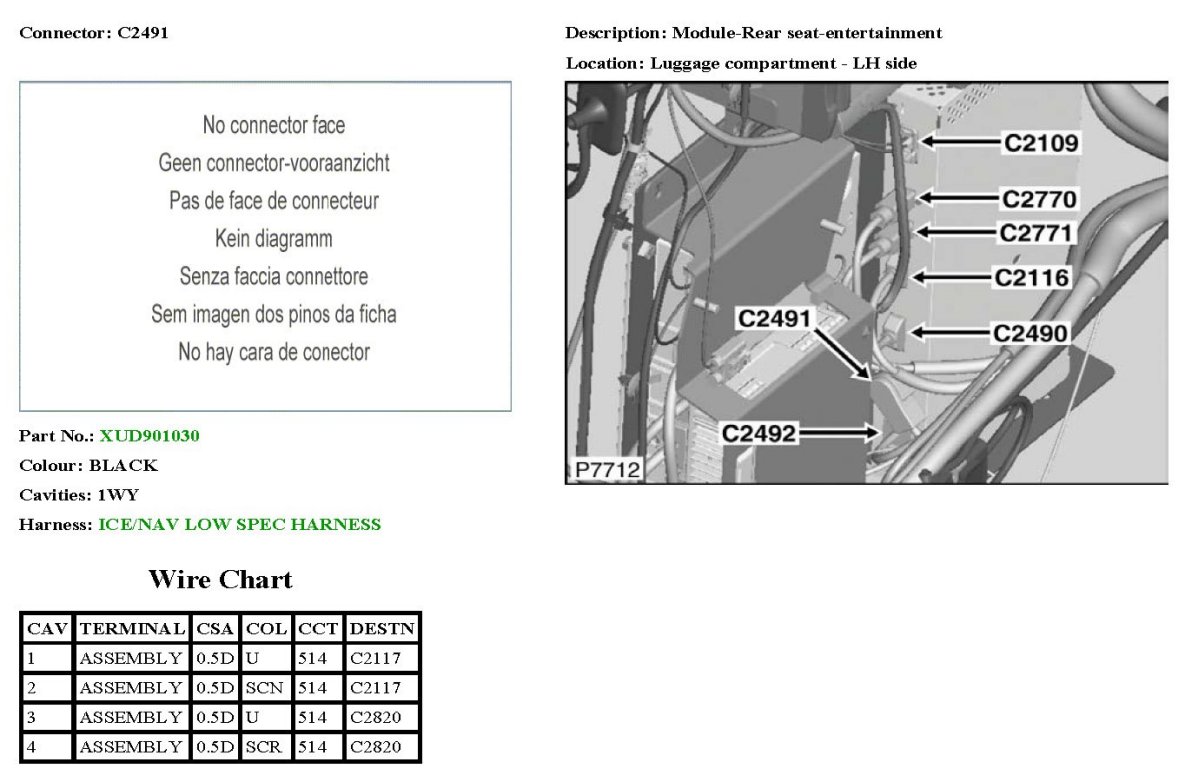

C2491:

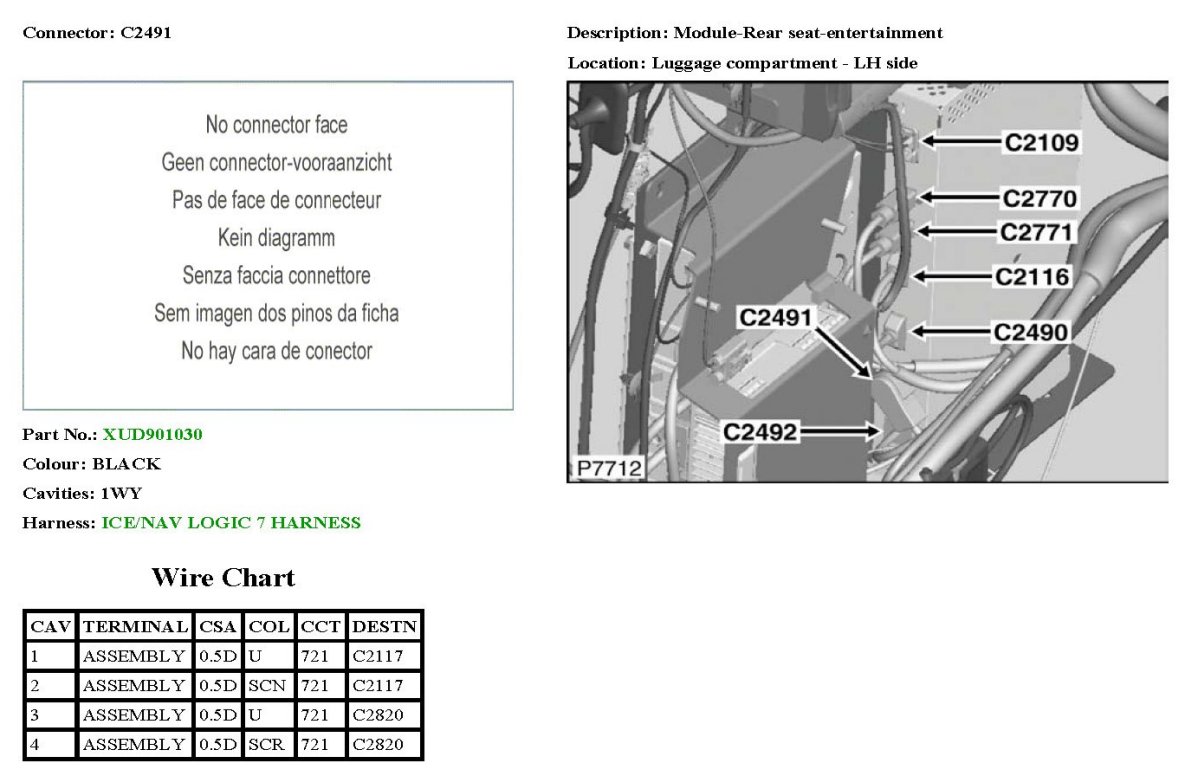

C2491:

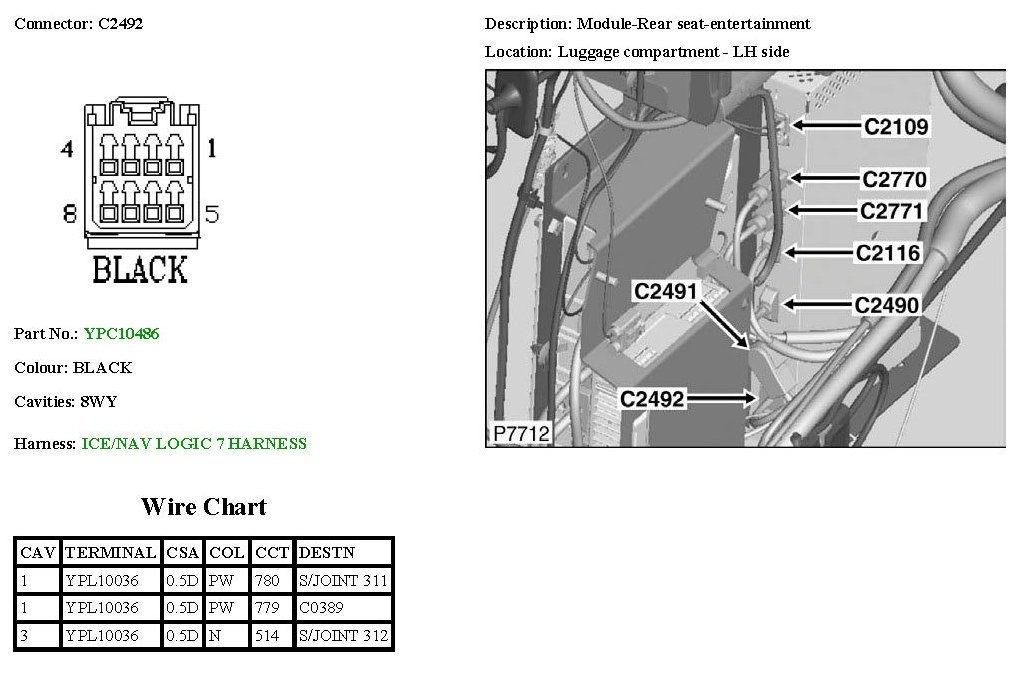

C2492:

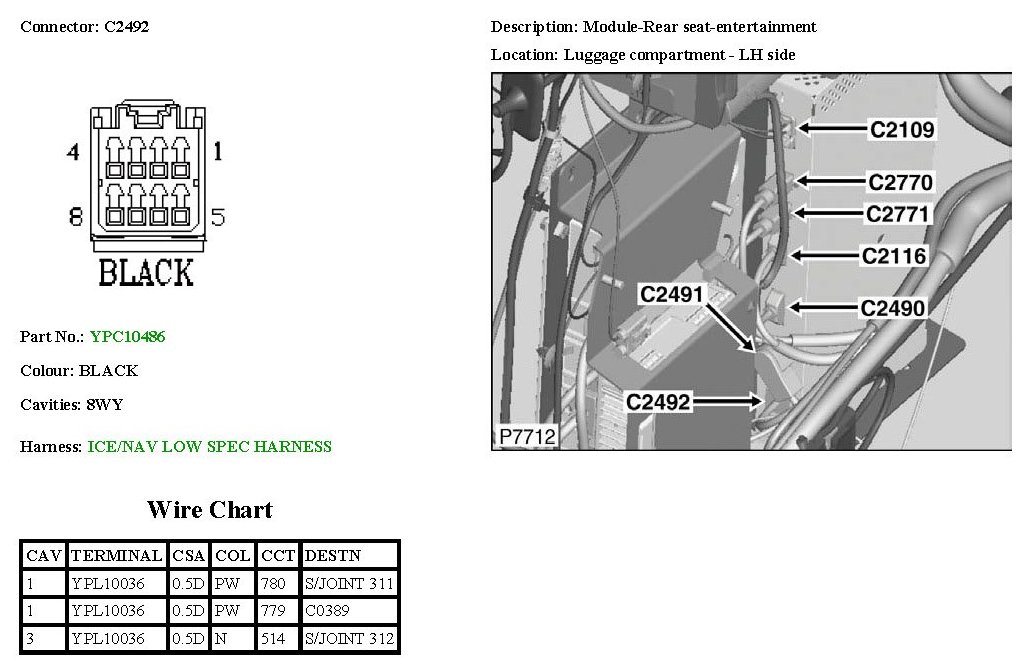

C2492:

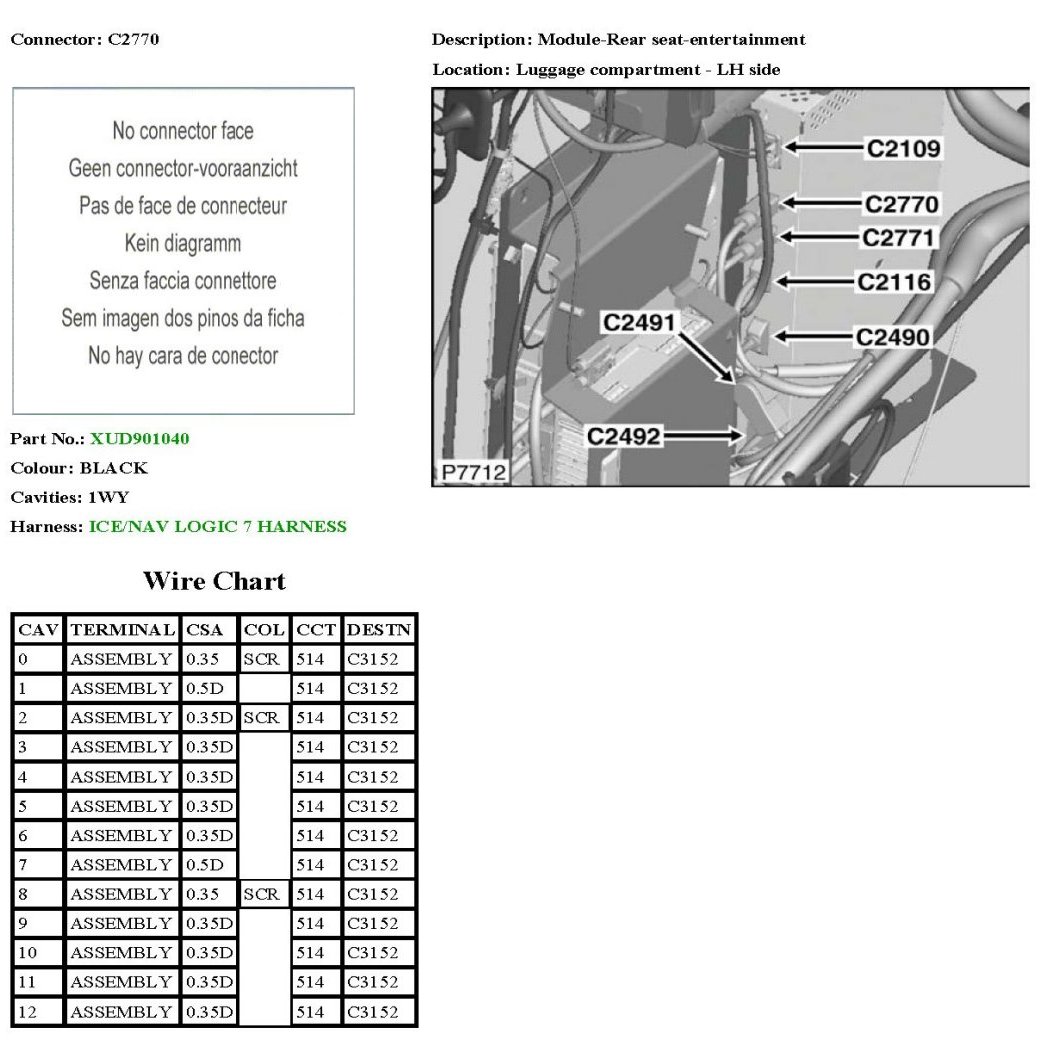

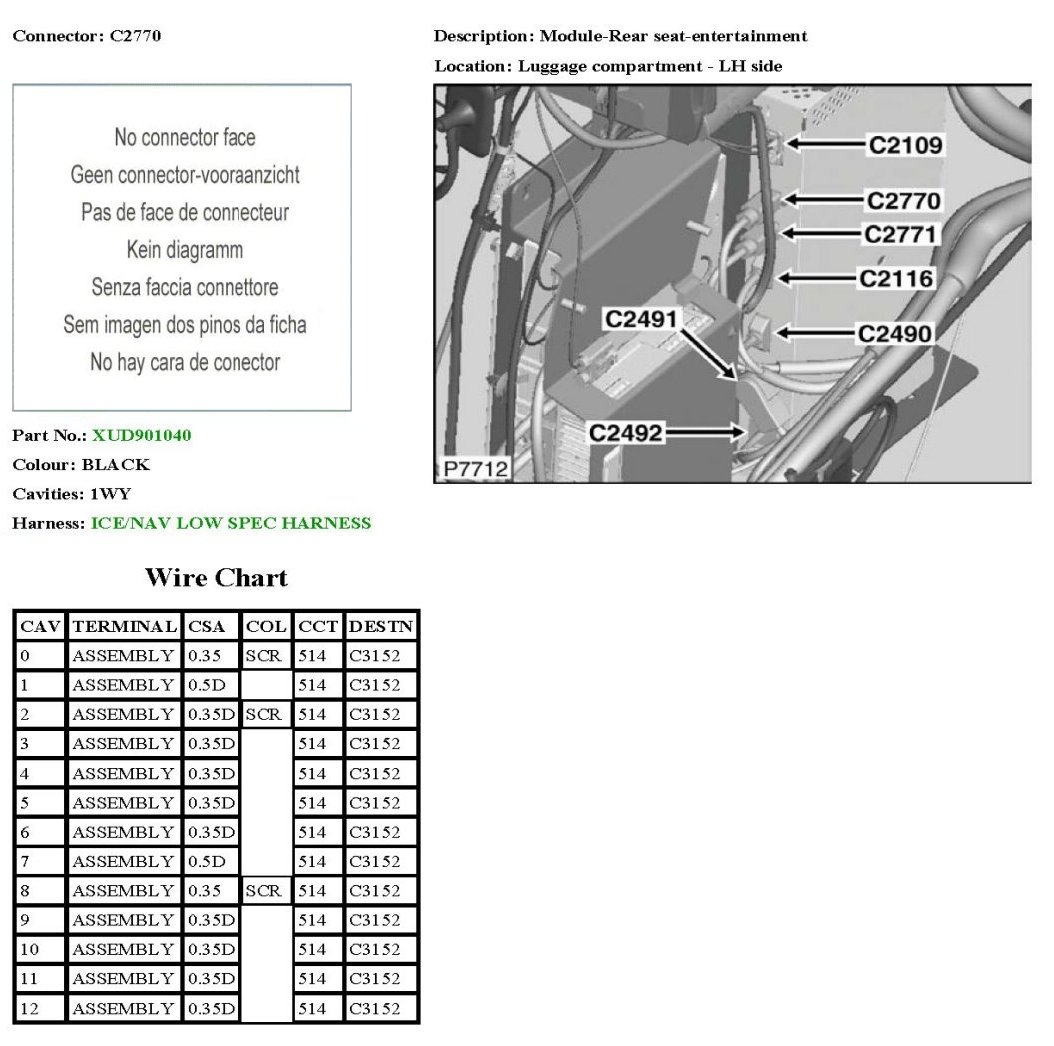

C2770:
C2770:

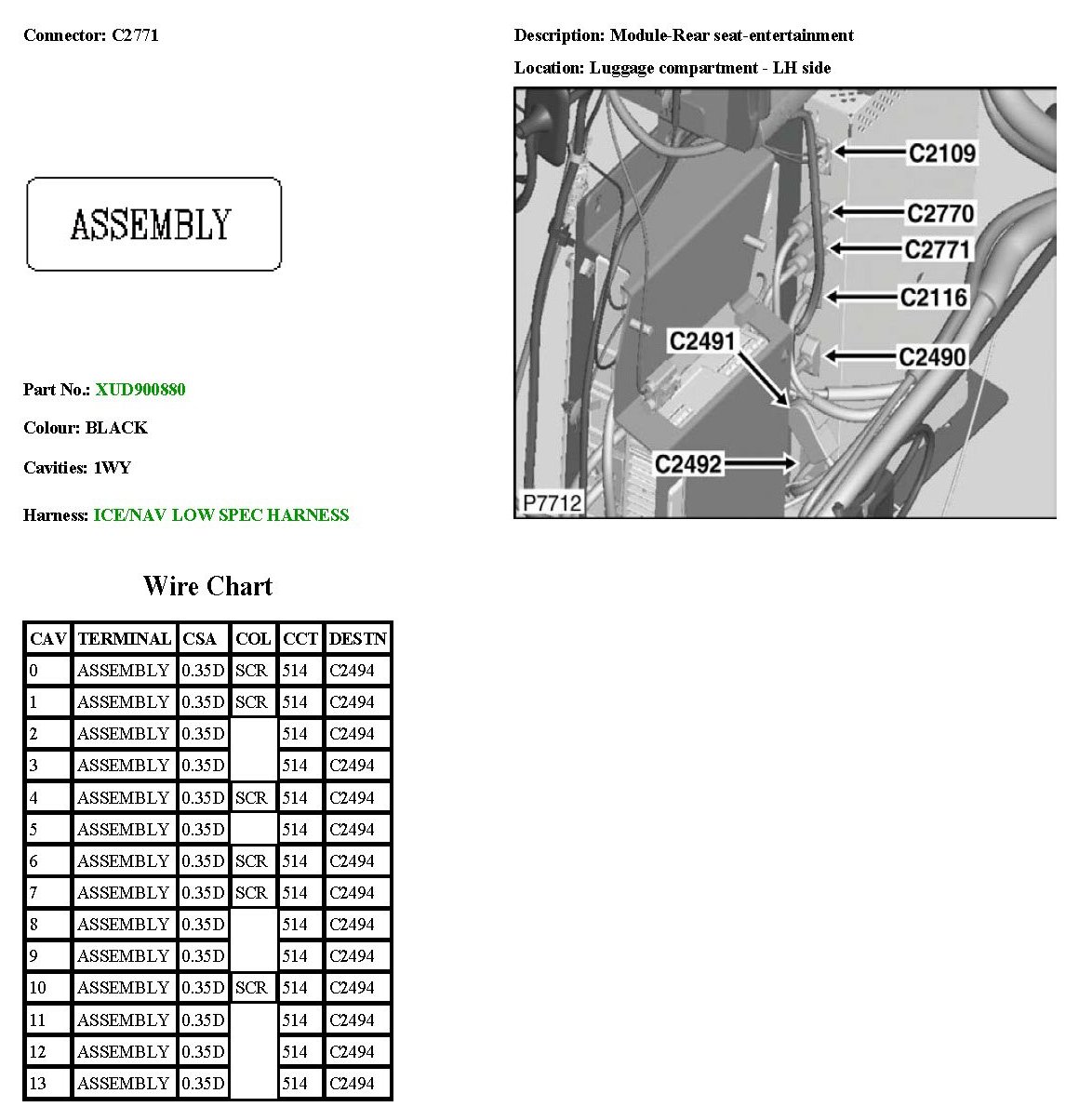

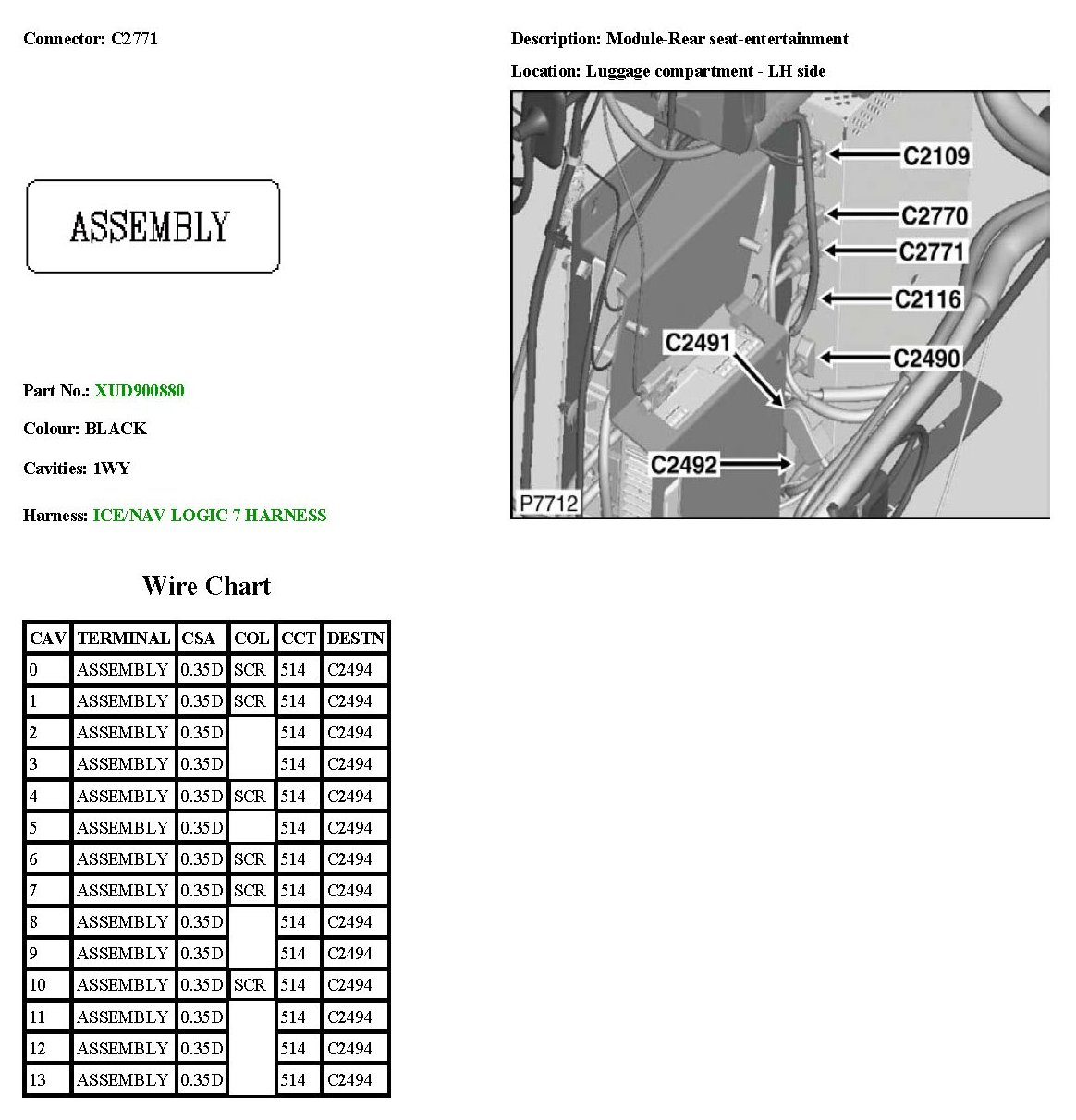

C2771:
C2771:
