Ride Height Sensor, Suspension Control
>>
Sensor-Height-Front-RH
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

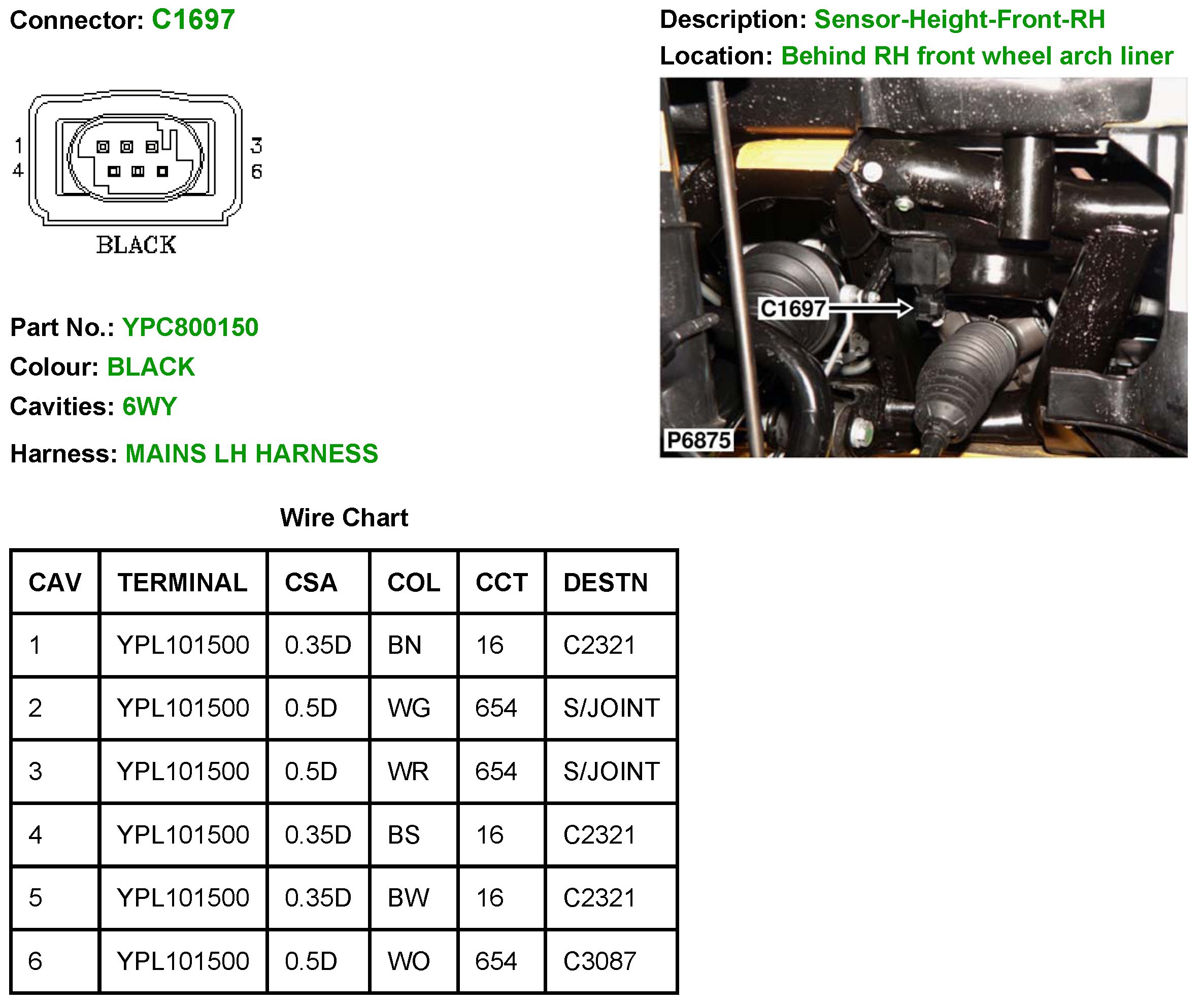

Sensor-Height-Front-RH
C1697:
