Suspension Control Module

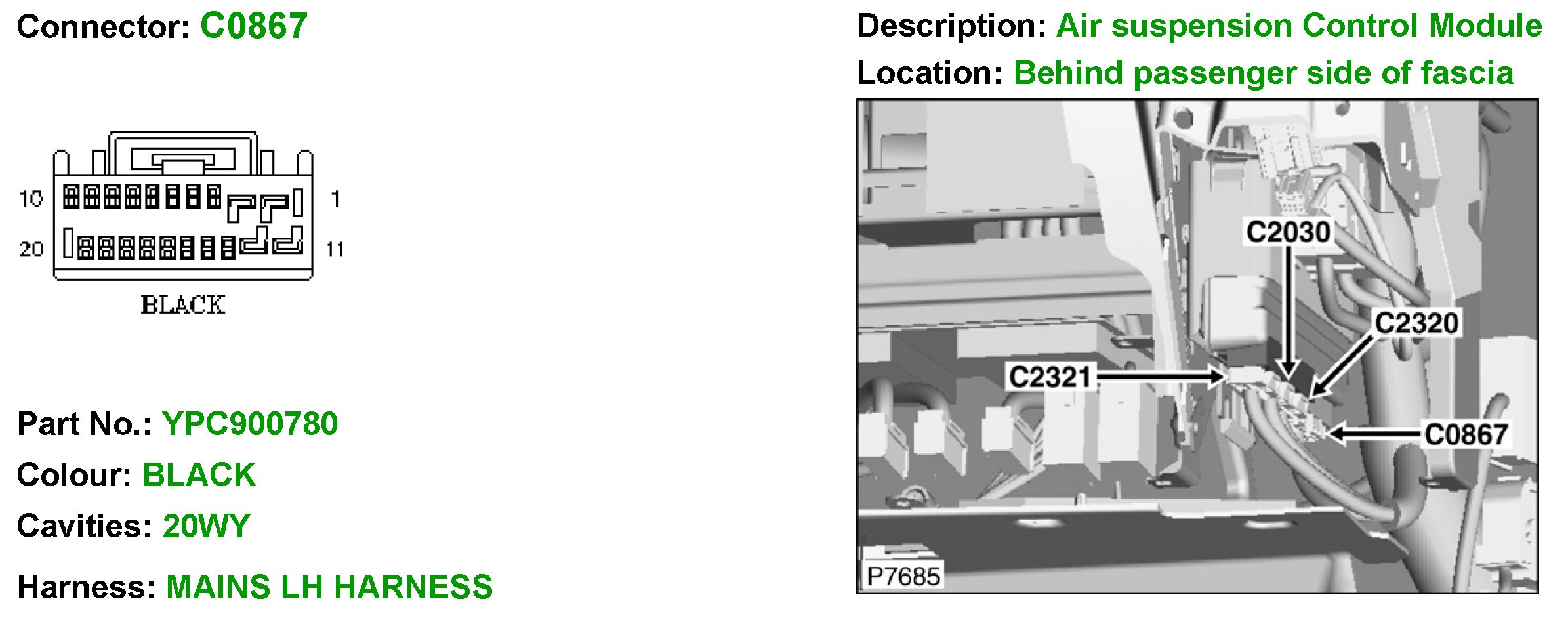

C0867 (Part 1):



C0867 (Part 2):



C2030 (Part 1):



C2030 (Part 1):

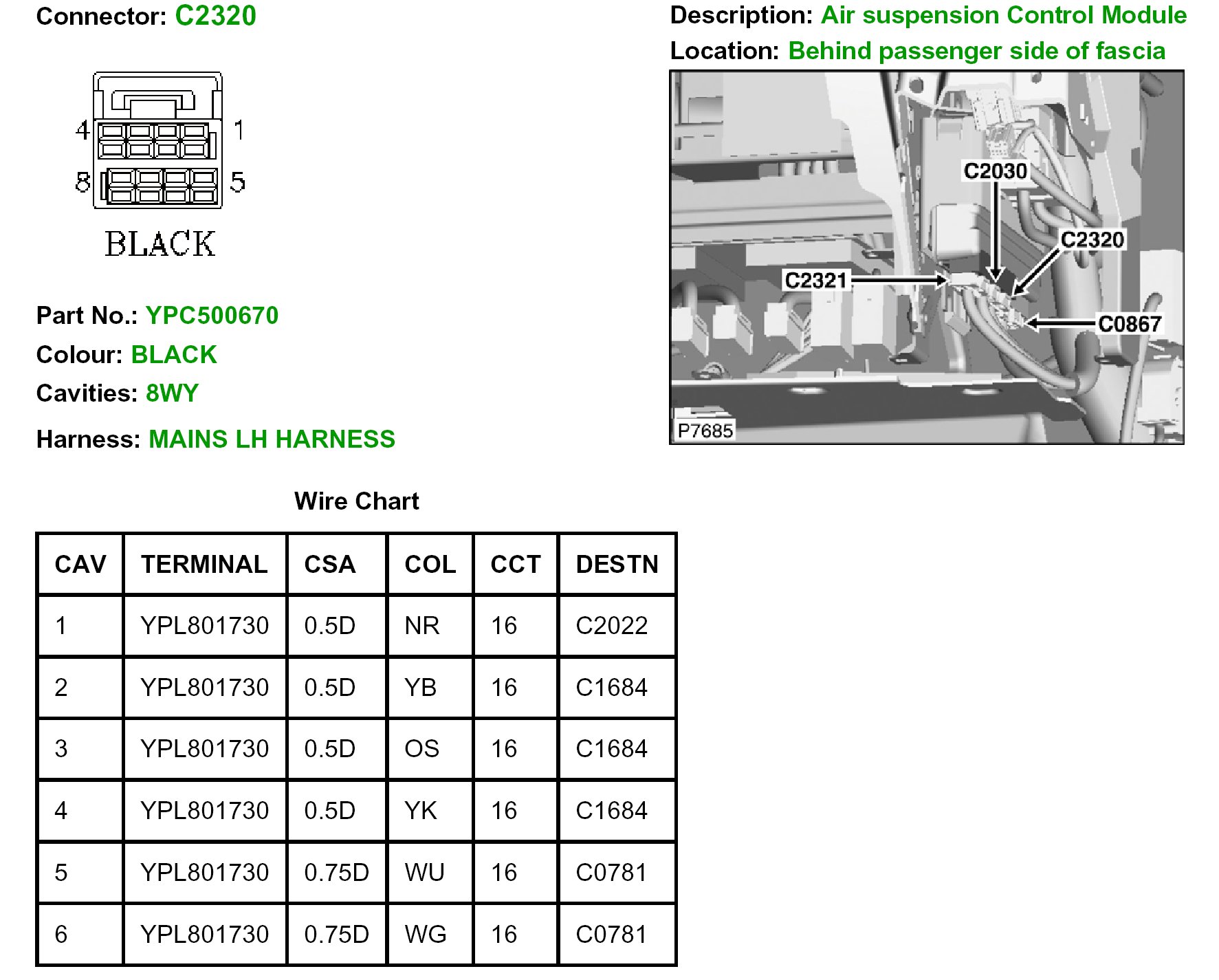

C2320:



C2321 (Part 1):



C2321 (Part 2):
